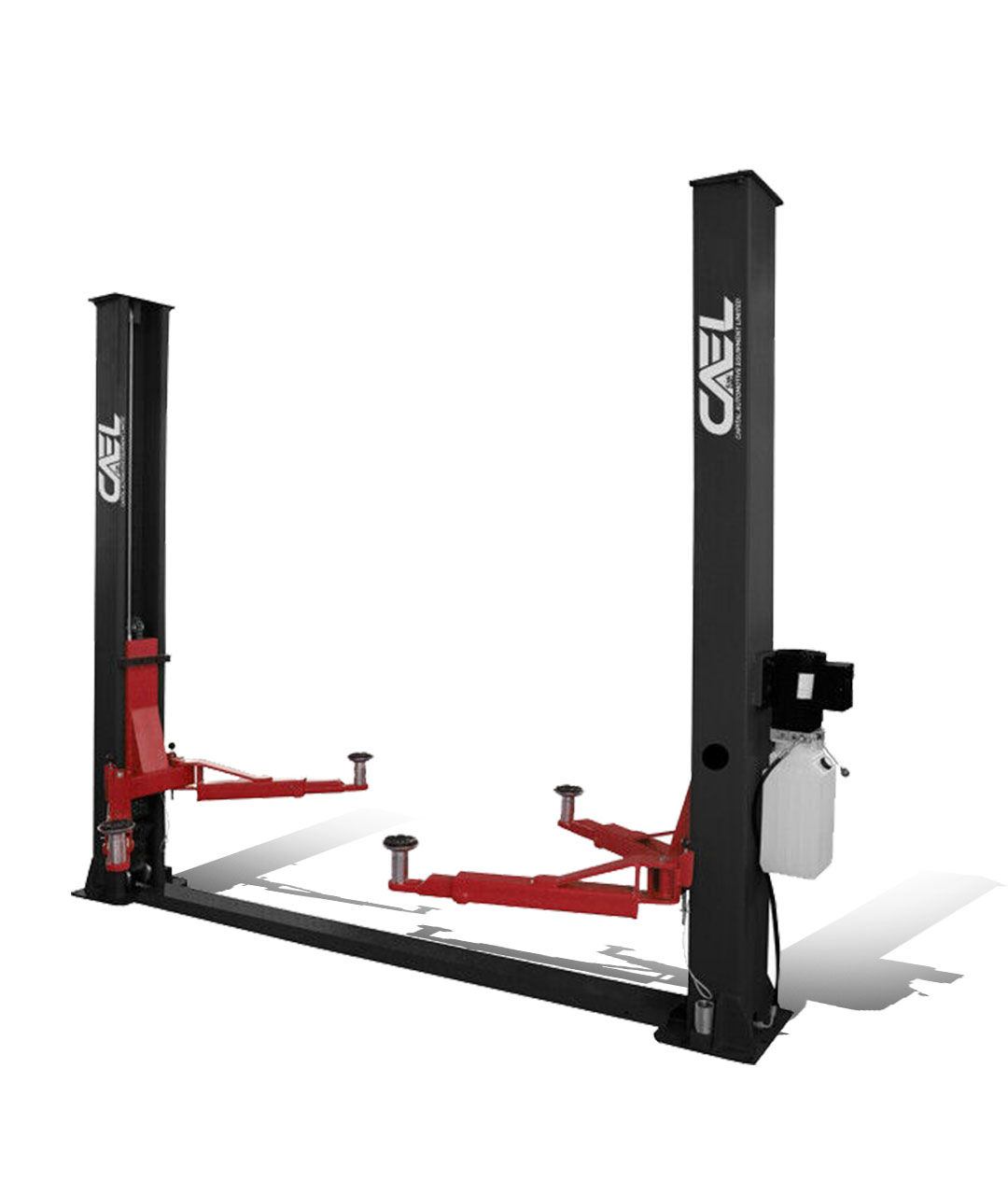

12,000lb H-D Series Low Rise Base Plate Lift HP12

$3,749.00

The Capital Automotive Equipment HP12Two-Post Base Plate H-D Series Lift represents the absolute best value for the customer who wants a professional grade, commercial quality car lift at a reasonable price. Our H-D Series lifts have been manufactured for more than 40 years and described as bullet-proof! This H-D Series lift has an open top design that is perfect for lifting tall vehicles, high cube trucks and vans. A two-post above ground hoist designed for low ceiling garages with a 12,000 lift capacity. The total column height of 115″ allows this lift to be installed in a professional service center or home garage with a ceiling as low as 9 feet 5 inches.

Categories: ,
Description

Description

The Capital Automotive Equipment HP12Two-Post Base Plate H-D Series Lift represents the absolute best value for the customer who wants a professional grade, commercial quality car lift at a reasonable price. Our H-D Series lifts have been manufactured for more than 40 years and described as bullet-proof! This H-D Series lift has an open top design that is perfect for lifting tall vehicles, high cube trucks and vans. A two-post above ground hoist designed for low ceiling garages with a 12,000 lift capacity. The total column height of 115″ allows this lift to be installed in a professional service center or home garage with a ceiling as low as 9 feet 5 inches. And its wide! With its 130” opening between the posts makes it exceptionally versatile. This is the ultimate lift for those demanding high quality, with a wide opening and low post height.

Manual
Additional information

Additional information

Voltage

110v, 220v
Features

Features

  • Technically advanced configuration.
  • One side manual lock.
  • Automatic stop at maximum lifting height.
  • Mechanical safety latch with dual-side manual lock release.
  • Vehicle door anti-crush rubber protection.
  • Synchronized hydraulic cylinders.
  • Independent load distribution with cable leveling system.
  • Swing arm support with high quality wear-resistant rubber pads.
  • Three stage screw style height adapter.
  • Durable powder-coated finish.
  • 3 stage symmetrical arms.
  • Standard 220V, optional 110V power choice for $99.
  • Optional truck adapters are additional $79
Specifications

Specifications

Style 2-Post Floor Plate
Weight Capacity 12,000 lbs
Overall Width 153 in
Overall Height 115 in
Minimum Lift Height 4.3 in
Maximum Lift Height 74.8 in
Width Between Posts 130 in
Front Arm Min Reach 34.6 in
Front Arm Max Reach 71 in
Shipping & Delivery

Capital Automotive Equipment Ltd goes to great lengths to ensure you receive your product on time and in the same condition as when it left our facilities. While we do not own the trucks the lifts are shipped in, you can be rest assured your lift is good hands once it leaves our warehouse.

When your transaction is being finalized you will be given the cost of the transportation fees to your business, residence or local terminal including fuel surcharge amounts. Trucking companies dictate what the current surcharge amounts are and are in no way handled by Capital Automotive Equipment.

Upon receipt of your order it is recommended that you carefully inspect your package for visible signs of damaged prior to signing the carriers bill of lading. Should there be damage caused by transportation please note it on the bill of lading and call us immediately in order for us to make a claim. Damage reports must be made to your customer service representative within 24 hours of receipt of your order.

Also, when receiving your order via a common carrier it must be noted the end-user is responsible for providing the necessary means of off-loading unless previously arranged. Freight companies do not off-load equipment at the end destination, nor do they wait for assemblies to be broken down and hand lifted from the truck. In the event of inability for the customer to off-load the equipment causing wait times or return trips service charges may apply.

It is also recommended that within 48 hours of receiving your lift you carefully verify that all goods are present in accordance with the materials listed in your manuals to ensure an easy, trouble free set-up. Missing parts claims should be reported within 48 hours.
