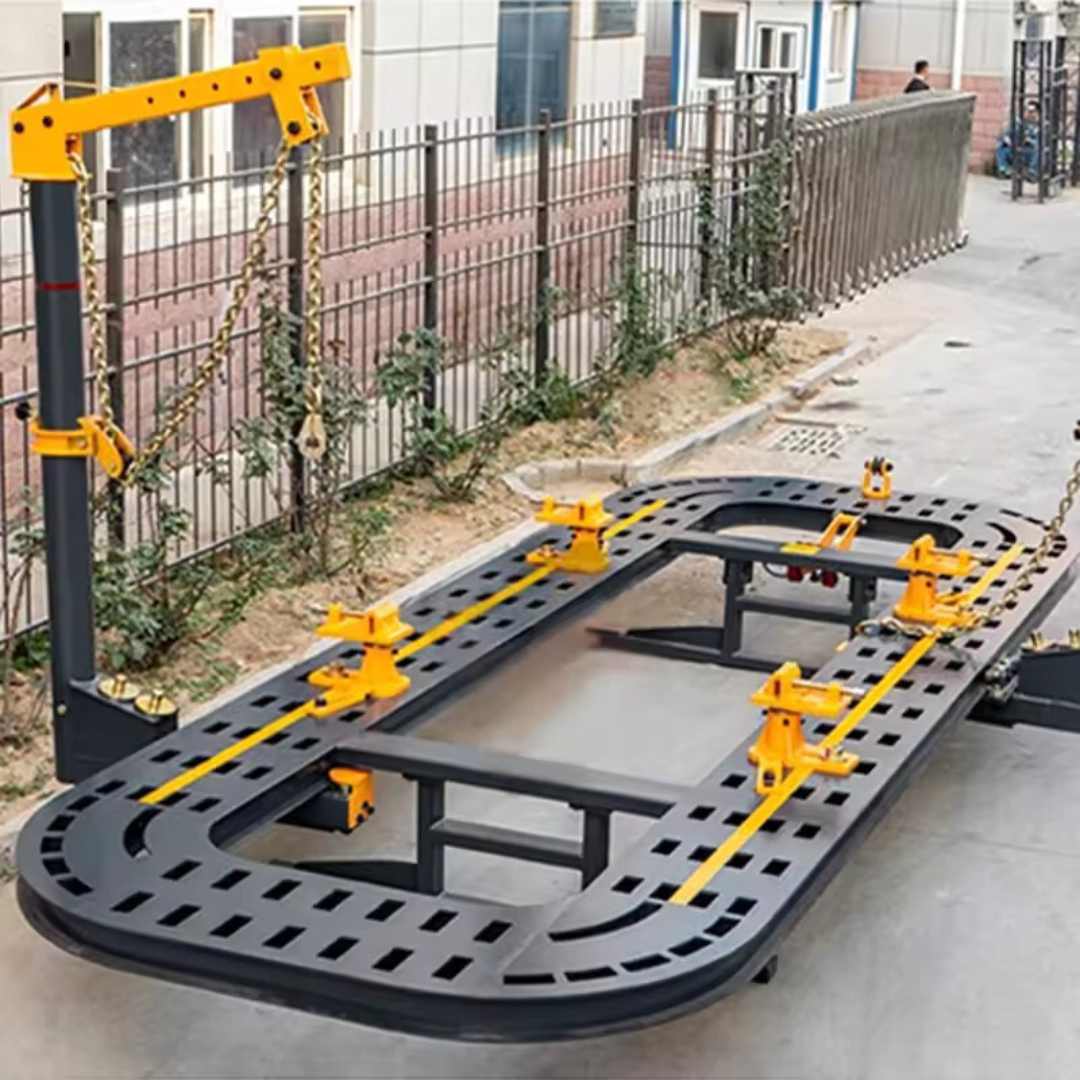

Frame Machine – CAELAD-M2E

  • $11999.00

Designed for full-frame/uni-body type vehicles Tilt deck with 3,500kg (7,700lbs.) lifting capacity Universal anchoring clamp with adjustable heights Durable powder coat surface finish Two towers with 10-ton hydraulics Electric control cabinet controls towers and deck Complete tool board

Category:

SPECIFICATIONS:

Maximum Lifting Load : 3,500kgs
Deck Height: 340-650mm
Deck Length : 5,600mm
Deck Width : 2,200mm
Tower Pulling Force : 98KN
Hydraulic Pressure : 70Mpa
Net/Gross Weight : 1,495kgs/1,500kgs, 970kgs/1,000kgs
Packing Size : 5,600*2,250*340mm(1PCS) 2,250*1,450*570mm(1PCS)
