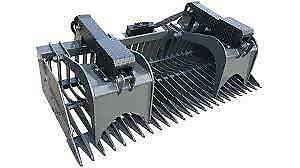

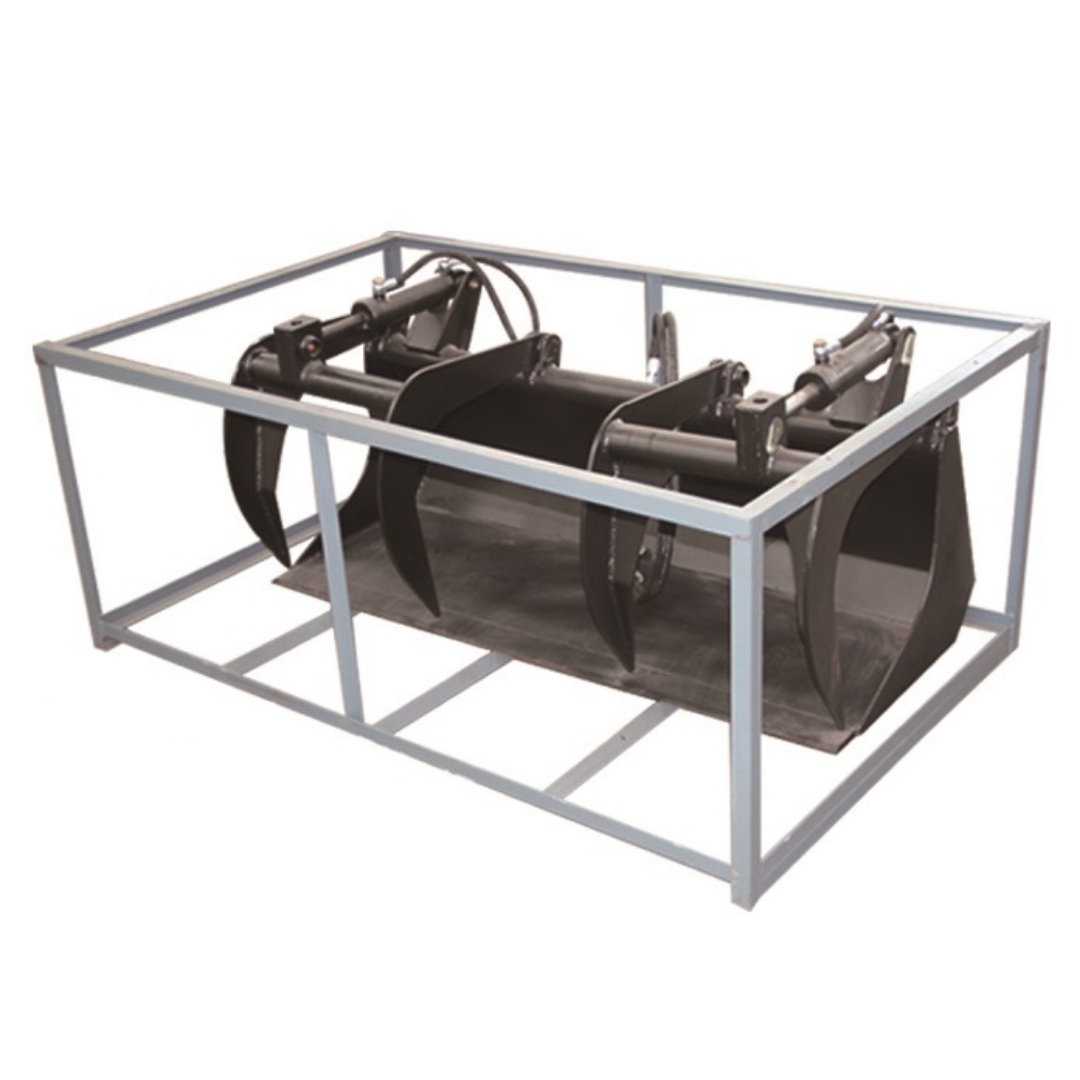

CAEL Rock Grapple Bucket Skid Steer

  • $2,320.00

CAEL rock grapple bucket with tines is a must-have attachment for your skid steer loader. Designed for sifting and raking through loose soil, it effortlessly moves rocks aside. The tine spacing allows soil to pass through while retaining larger rocks. Its rugged powder-coated finish ensures resilience on demanding job sites. With a universal skid steer hookup, it easily connects to your existing equipment. Achieve fast and efficient results with the CAEL rock grapple bucket with tines.


Key Features:

Connection: Universal Skid Steer Hookup

Surface: Durable Powder Coated Finish



Product Dimension1491mm*2020mm*950mm/4.89’*6.63’*3.12′
Product Weight600kg/1320lbs
Product MaterialQ345 Steel
Hydraulic Motor Power12.8HP
Hydraulic Motor Flow50L per min
Hydraulic Motor Speed72.5 RPM
Hydraulic Motor Pressure20MPa
Surface Treatment TechnologyPlastic Powder Coating
Operating Pressure20MPa
Working Width2000mm/78.74″
Number Of Tine20
Tine MaterialNM400 Steel
Tine Space94mm/3.7″
Tine Thickness16mm/0.63″



Package SizePackage Weight
