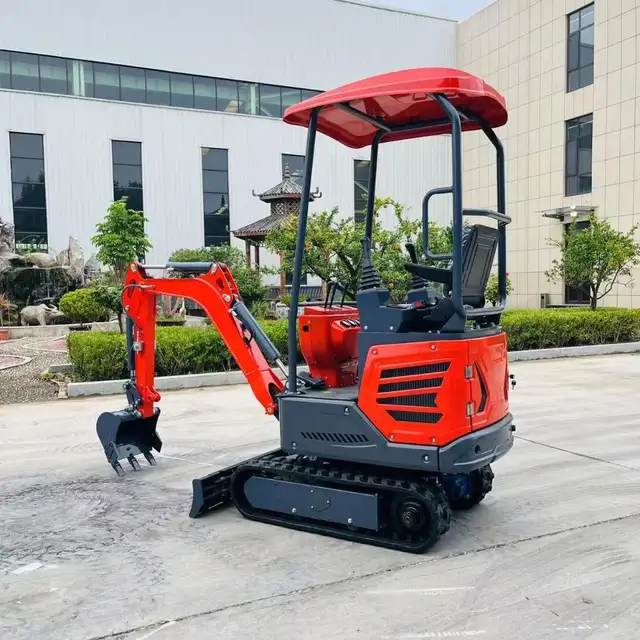

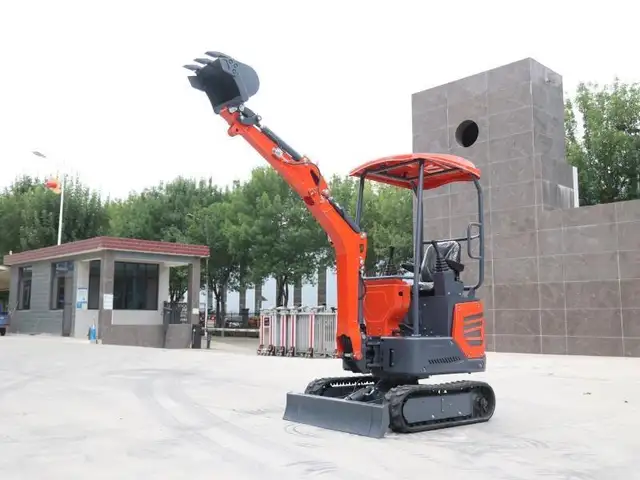

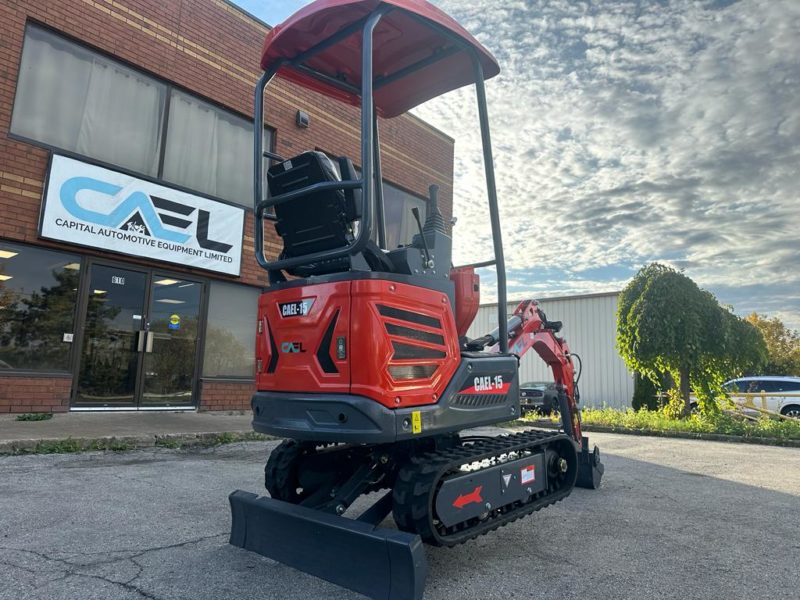

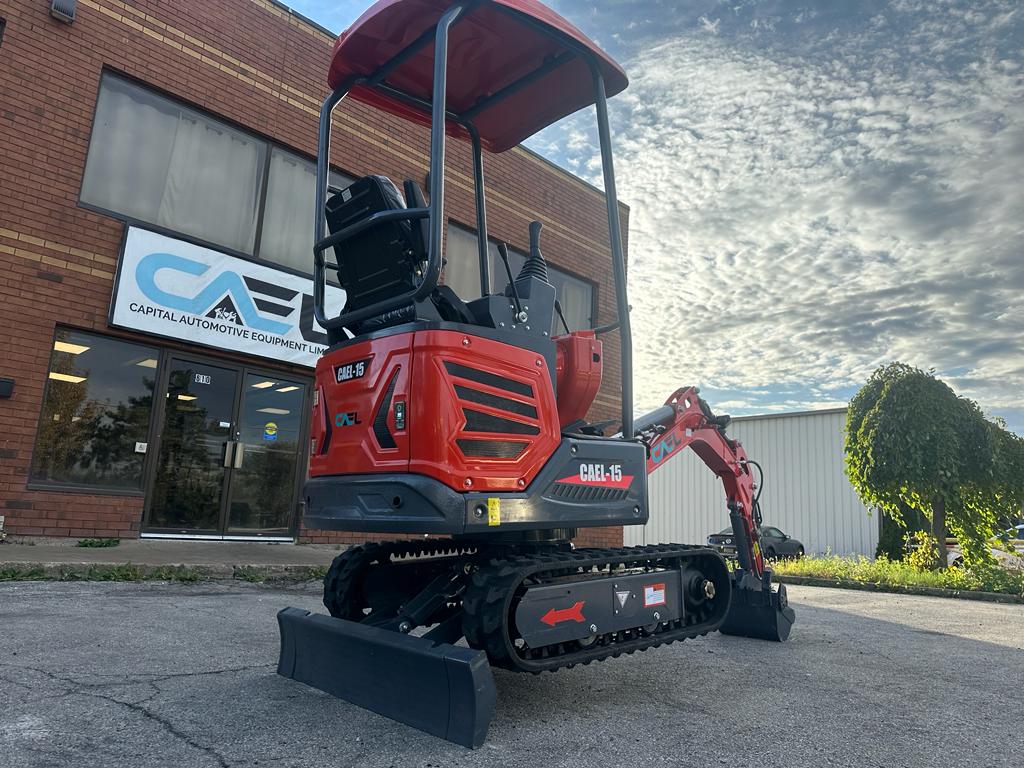

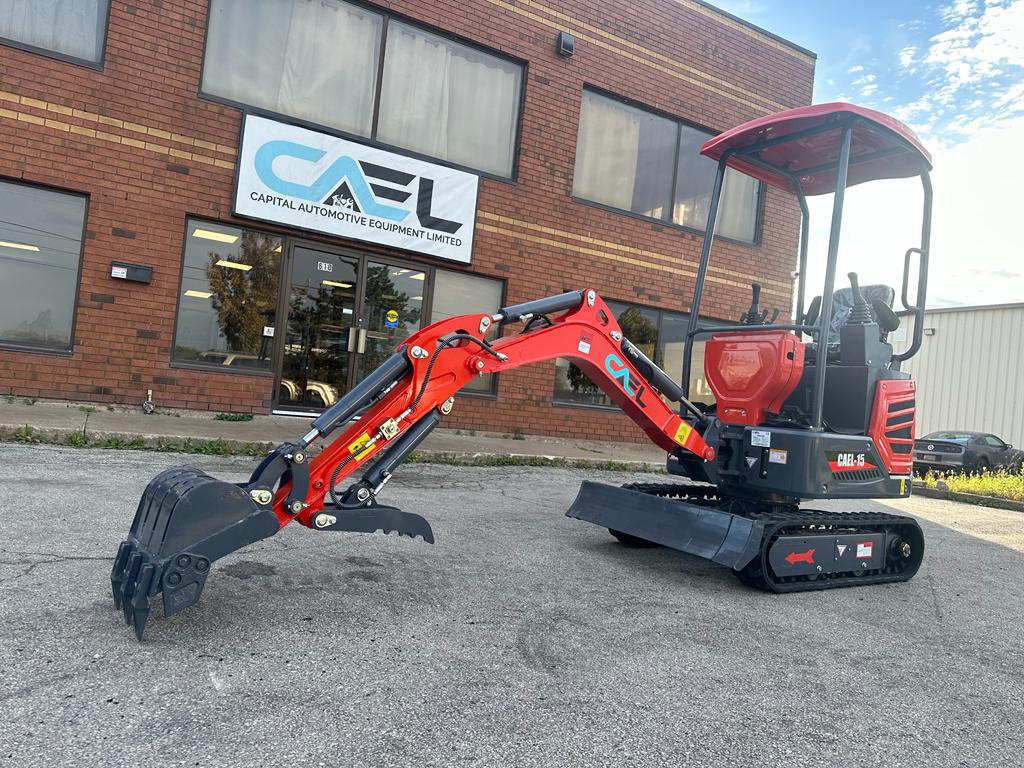

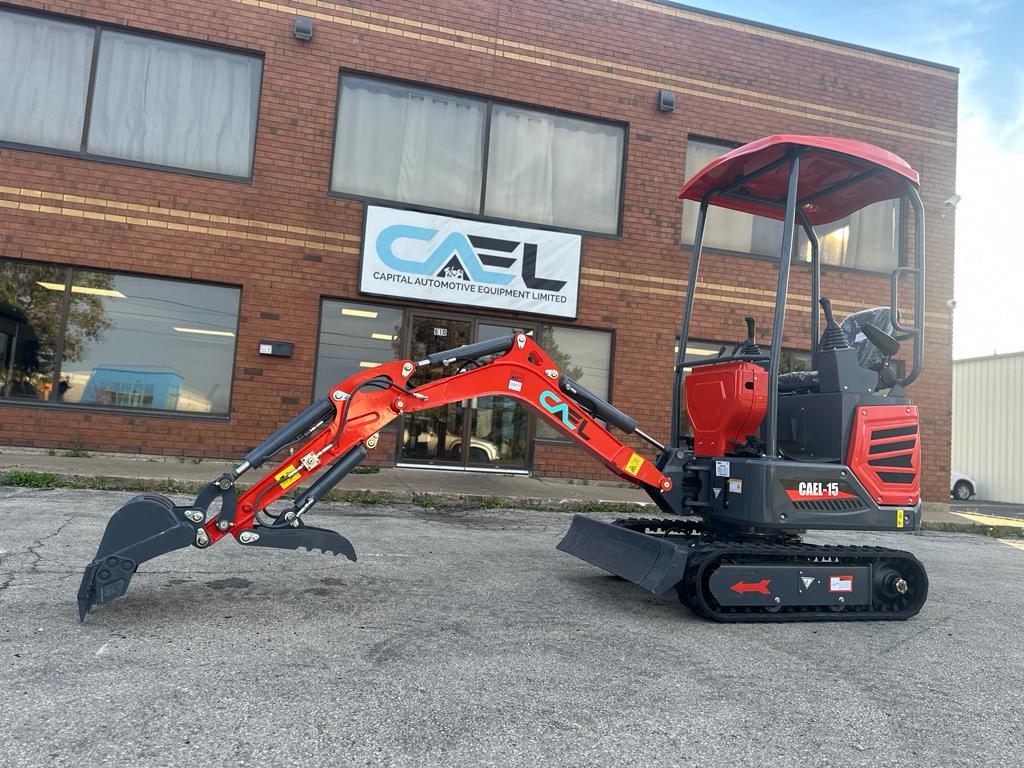

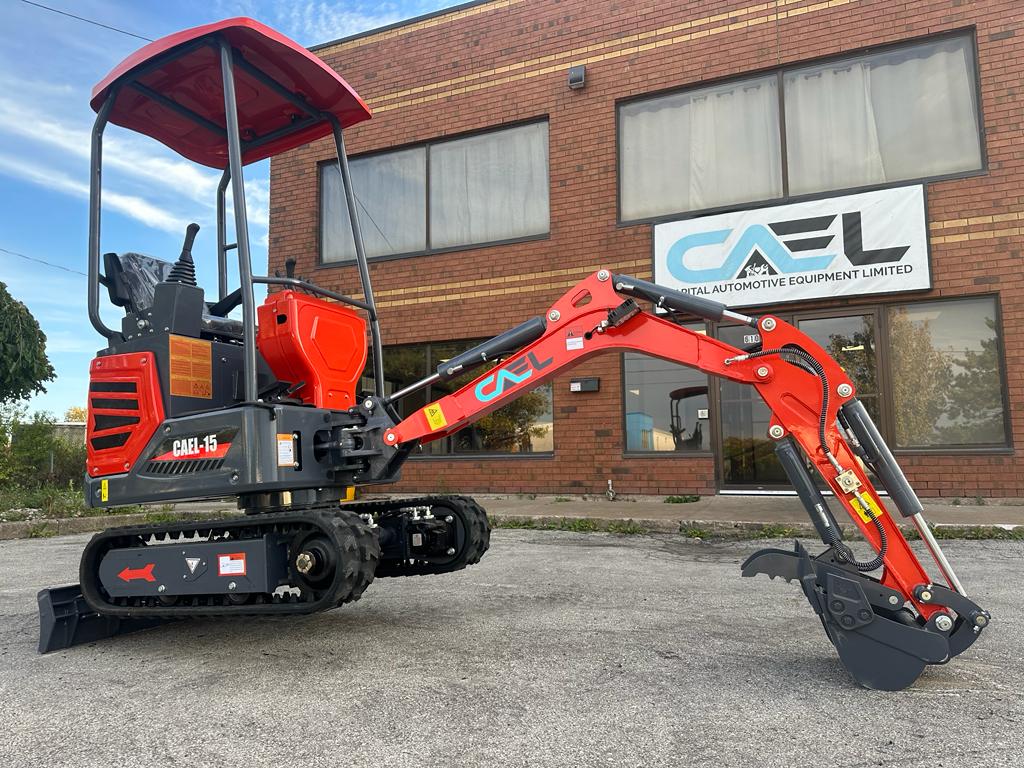

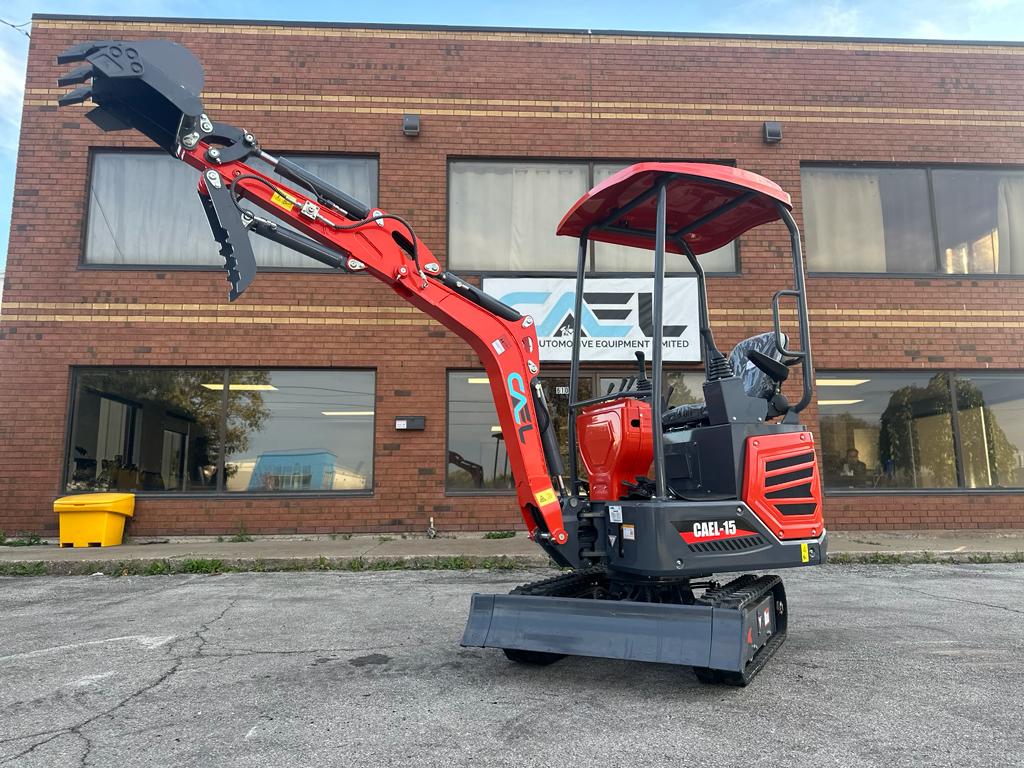

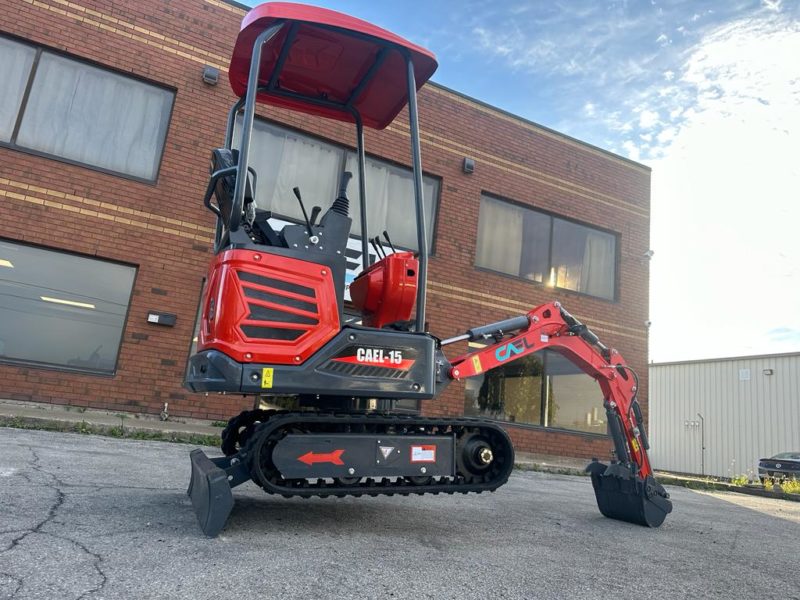

Mini Excavator 1.5T With Kubota Engine Hydraulic Thumb/Swing Boom/Adjustable Tracks

  • $15,499.00

Total Measurement:
– Total Length *width* height(during transportation) 2870*8801100*2285mm
– Dozer Blade Width (extend/retract) 937mm
– Dozer Blade Height 210mm
– Track Center Distance 746mm
– Standard Track Shoe Width180mm
– ground Clearance 405mm
– Standard Bucket Width (with/without tooth) 420/400mm

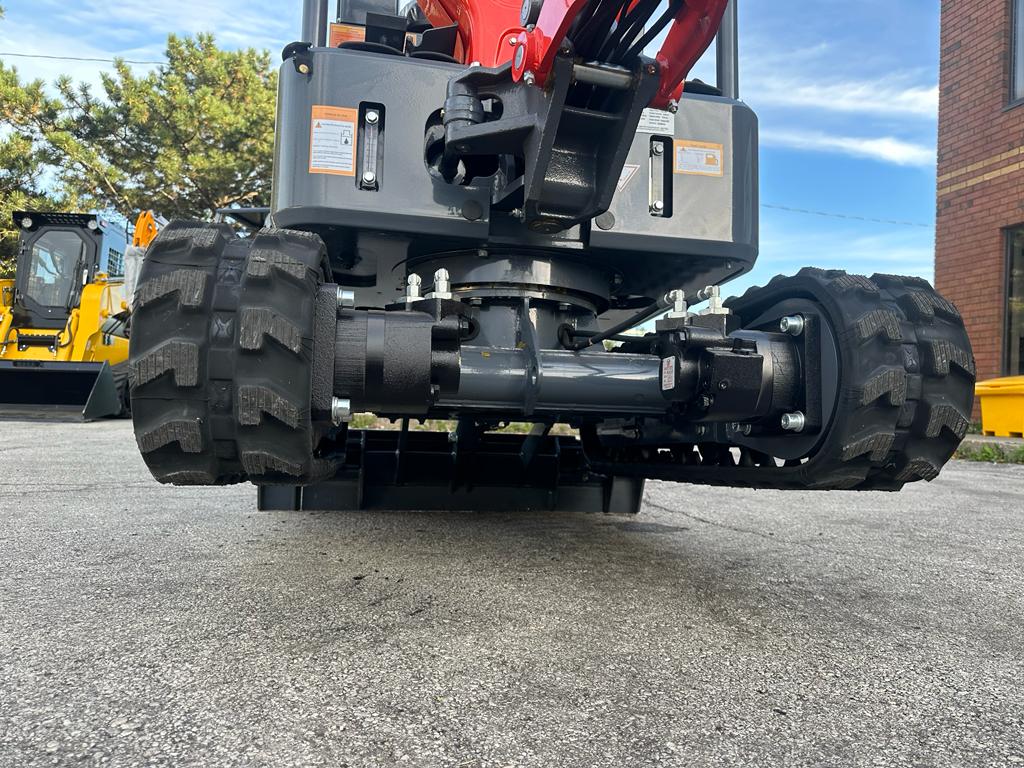

– Track Length 1200mm
– Wheel Spacing 920mm

Scope of Work:
– Maximum Digging Height 2490mm
– Maximum Unloading Height 1745mm
-Maximum Digging Depth 1725mm
– Maximum Vertical Boom Digging Depth 1655mm
– Maximum Digging Distance 3030mm
– Maximum Digging Distance on the ground 2940mm
– Minimum Radius of Gyration of the front section 1490mm
– Maximum Push Height 170mm
– Maximum Push Depth 240mm

Performance Parameter:
– Operating Weight 1410kg
– Bucket Capacity 0.022m³
– Engine Model KUBOTA D722
-Displacement 1.5L/H
– Rated Power 10.2KW
– Walking Speed (high/low)1.2km/h
– Swing Speed 9r/min
-Gradeability 30°
-Ground Pressure 16Mpa
-Bucket Digging Force 6.5kN
– Fuel Tank Volume 5L
