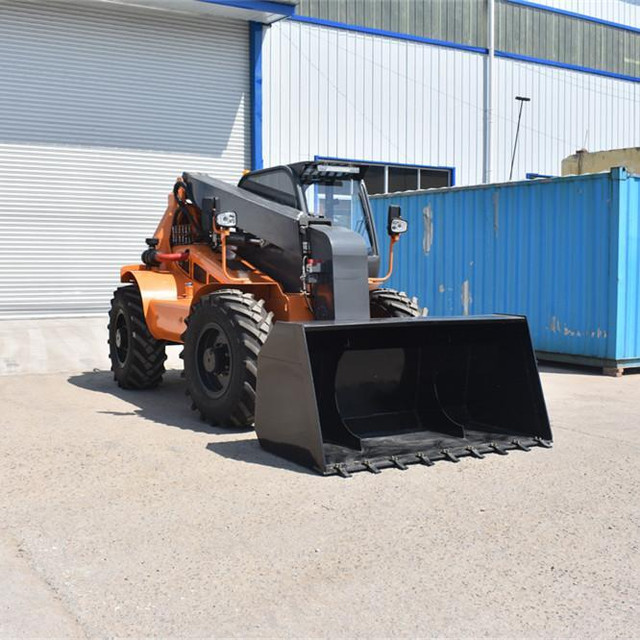

Telehandler Telescopic boom forklift 3T with Cummins Engine 24 FT

  • $84,999.00

*** FINANACE AVAILABLE ***

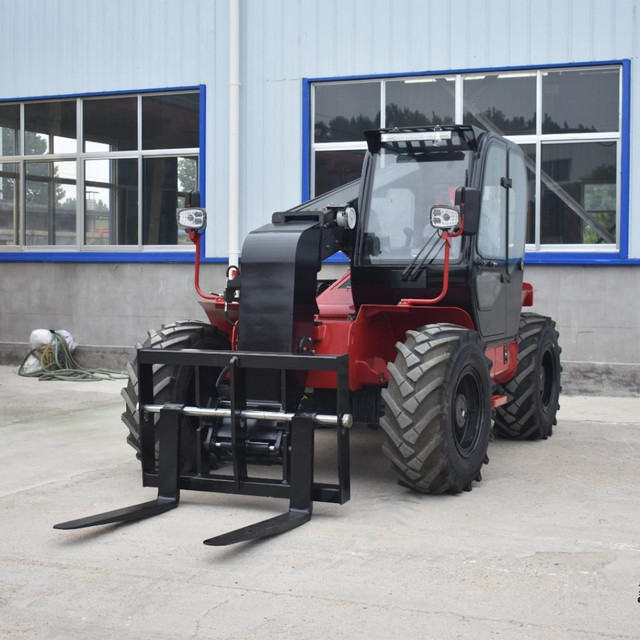

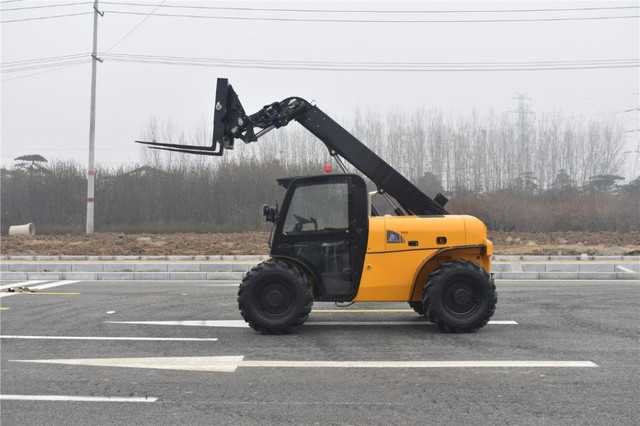

BRAND NEW CAEL telehandler 3T (6613 lbs ) 4×4 All Terrain with Diesel Cummins Engine 24 FT was designed to be operated on narrow spaces, slippery ground and can handle with heavy workloads.
Its compact dimensions, incredible maneuverability, unparalleled build quality and all-day operator comfort are just the ideal
machine you are looking for.
As a purpose-built machine to the exact needs of agricultural operators. You can therefore also expect maximum productivity,
efficiency , safety and serviceability

*** Standard configuration***

Full wheel steering, 3 different driving mode as below selectable from inside cabin
-Front wheel steering for normal road driving
– 4 wheel steering, min. turning radius
– Crab steering, handling from one side to the other without turning
Advanced maintenance free disc brake with oil bath inside axles, no worn
shoes, etc. Torque converter transmission, both forward and reverse has 2 gears;
Heated cabin with outlets for front window;
Safety belt unfasten warning signal;
Main power lock switch inside cabin, guarantee safety. Urgent boom down function when engine was suddenly off;
Hydraulic quick coupling system for various attachments;

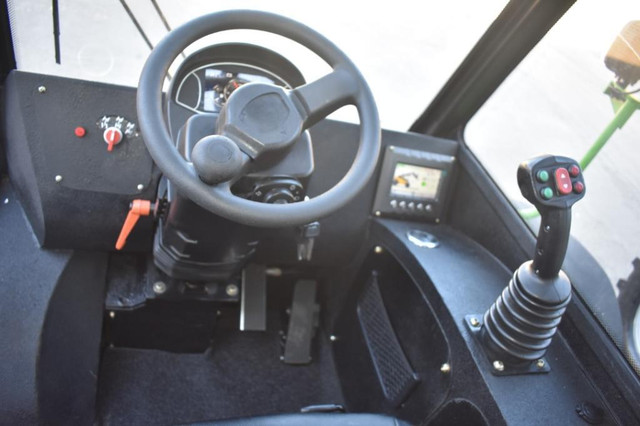

Hydro- electrical multifunction joystick ( 1 0 functions);
Water proof electrics;

*** Options included ***

– Multifunction loading display :
*Indicating real time loading capacity;
*Generate sound alarm when overloading
*Prohibit dangerous actions to the boom
when overloading, only safe operation are allowed.

-Air conditioner

– LED lights

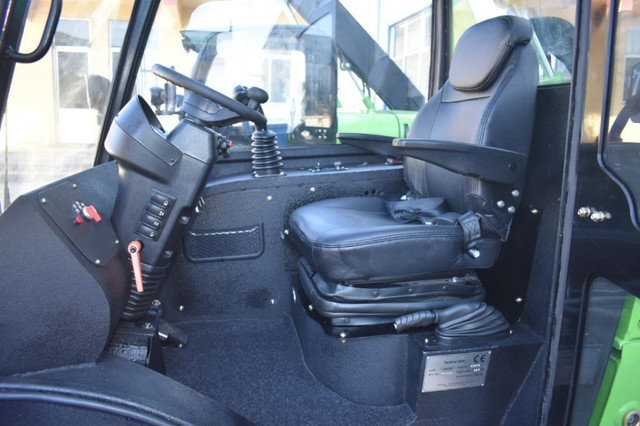

– Air suspension seat

-16/70-24 tube tyre

*** Performance***

Lifting capacity 3000kg
Max. height to pin 7250mm /6000mm
Weight : 6300kg

***Engine***

Brand : Cummins
Rated power 75 HP
Type Direct injection, water cooled, 4 cly.

*** Dimension ***

Max . length without fork 4250mm
Max . width 2200mm
Max . height to top of cabin 2490mm

***Forks***

Length x Width x Thickness 1 120X1270X45
Carriage rotation : 143°

***Performance time***

Boom raise 9 .0s
Boom lower 7 .0s
Boom extend 7 .5s
Boom retract 6.2s
Crowed 4. 1s
Dump 2 .5s

Tires : 16/70-20

*** Braking *** : Disc brake with oil bath on front and rear axles

*** Transmission : Torque converter ***

Max. Speed 22 km/h
Number of gears ( forward/ reverse) 2 / 2
Gearshift electrohydraulic control

*** Min. Turning radius ( outer wheels)***

front wheel steering 610 0mm
all wheel steering 415 0mm

*** Driving ***

4 wheel driving
Turning angel 3 5 degree
Track 1785mm
W heelbase 2 500 mm

*** Hydraulics***

System pressure 20 Mpa
Hydraulic output 9 6L/min

*** Capacity***

Fuel tank 1 15L
Oil tank 92L

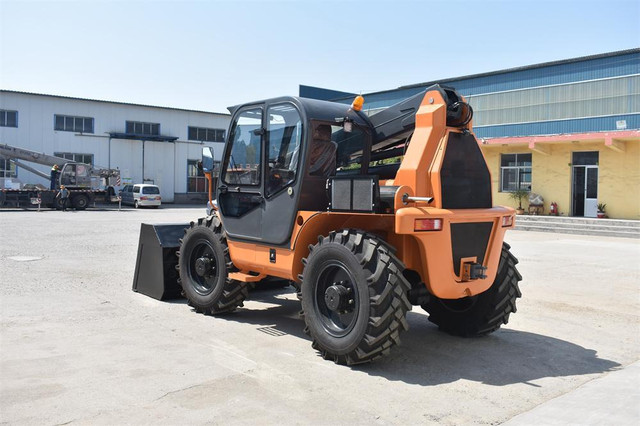

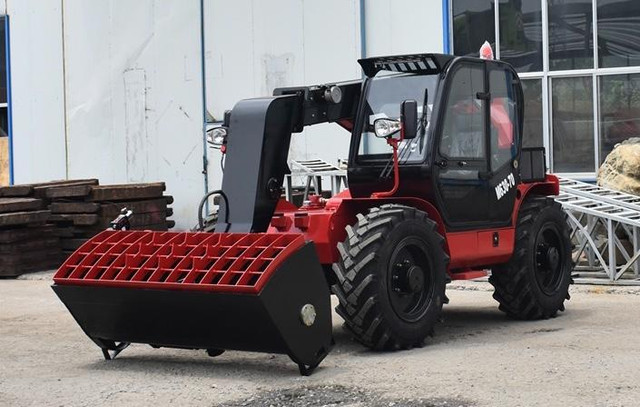

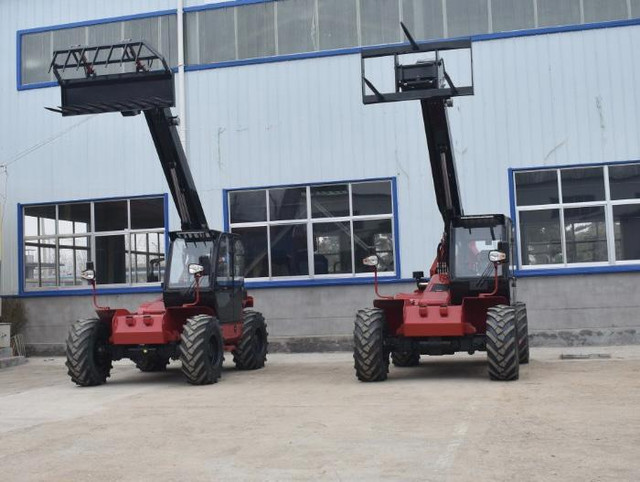

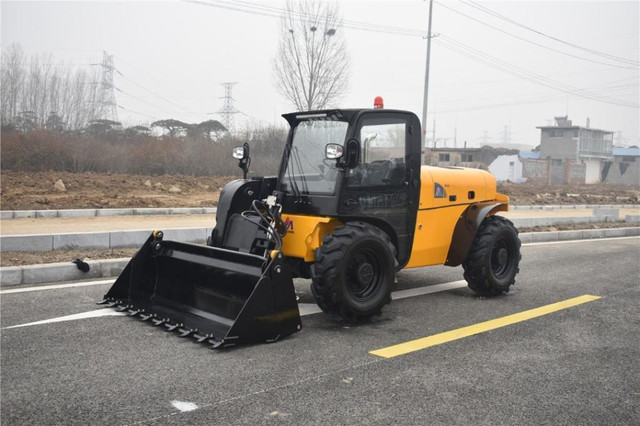

#### Attachment Available ( Optional ) ###
