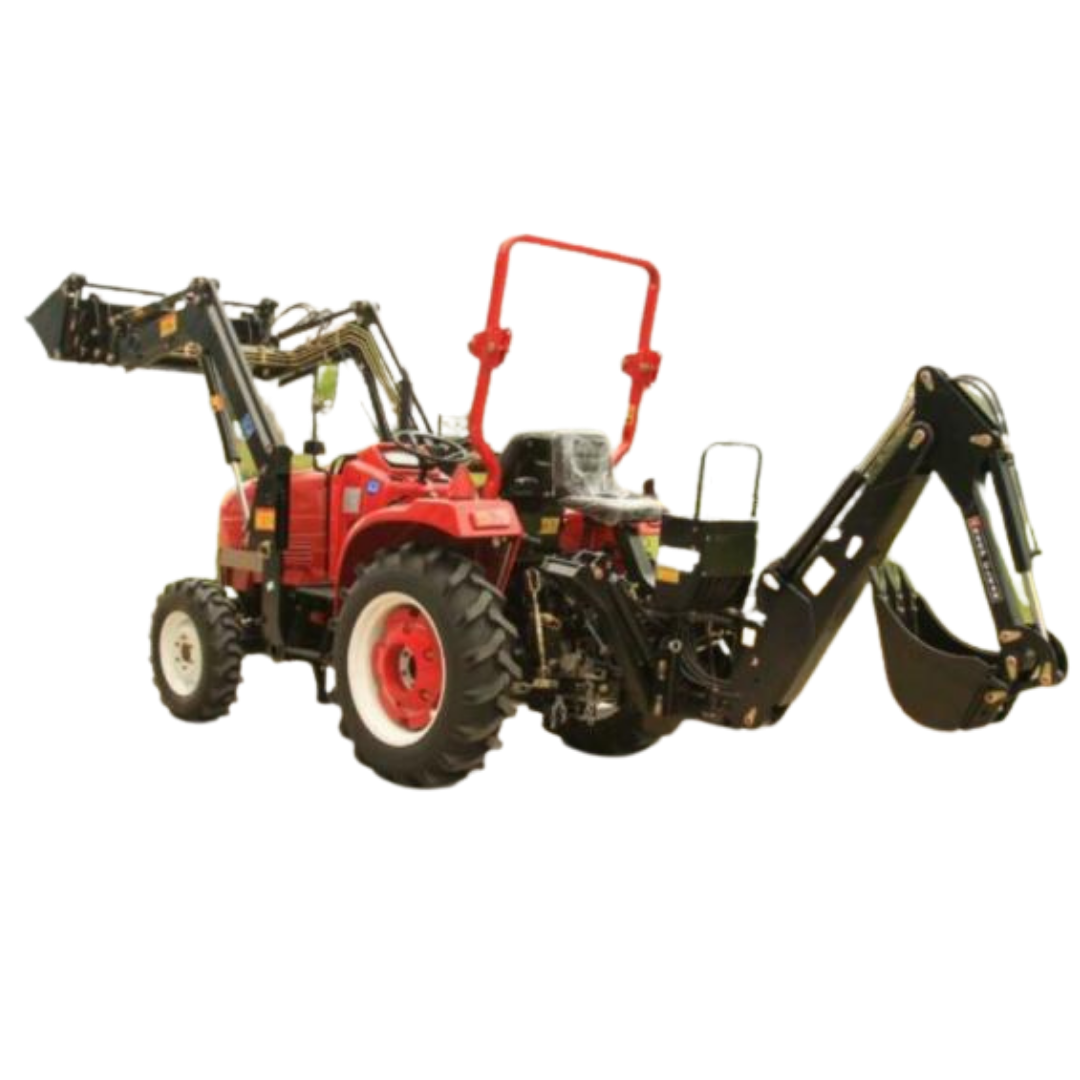

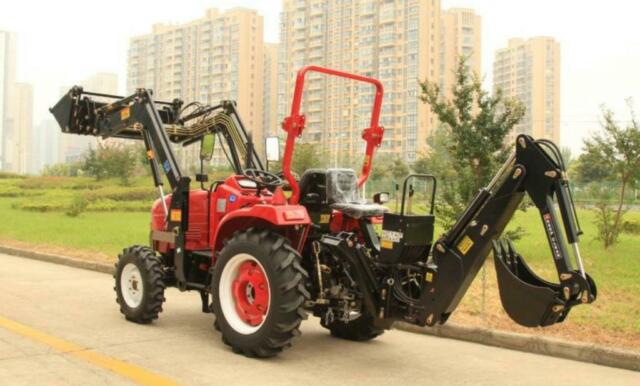

Tractor with Cab, Loader and Backhoe

  • $24999.00

Category:

***Tractor Parameters *****



*Drive Type : 4WD

*Overall Dimensions L×W×H(mm): 3180×1285/1450×2290

*Wheel Track (mm) :

– Front : 970/1210

– Rear : 1000/1160

*Wheel Bass(mm) : 1540

*Ground Clearance (mm) : 300

*Rated Traction Force(N): 6620

*Construction Mass(kg) : 1080

*Min.Turning Radius(m) : 3.27

*Theoretical Speed (km/h) :

-Forward(low-grade) : 0~8.2

-Reverse(low-grade) : 0~8.2
– Forward(high grade) : 0~20

– Reverse(high grade) : 0~20



***Engine Specifications***

Model : Perkins 403F-11

Type : 3-Cylinder Vertical, water cooled,4 stroke cycle indirect injection,
Rated Power(kw/hp) : 18.4/25

Rated Speed (rpm) : 2600

Bore×Stroke (mm) : 77 X 81

Total Displacement(L) : 1.131

**** Drive System****



Clutch : Monolithic dry combined with friction

Gear Box : HST+Two gears

Main Drive : A pair of spiral bevel gears

Differential : Two closed planetary wheel

Differential Lock : Tooth type



****Traveling Mechanism****



*Tyre :

– Front : 26×7.5-12 grass tire

– Rear : 11.2-20 grass tire

* Steering Gear : Full Hydraulic Steering

* Brake : Double pedal disc brakes

*** Working Device ***



* Hydraulic System :

– Lifting Capacity at 610mm Behind Lift : 3900

– Point (N) 3-Point Suspension : Category :I

* P.T.O Shaft (Rear) :

– Rotating Speed (rpm) : 540/1000

– Spline Size : 6-Φ35 Rectangular Spline



* P.T.O Shaft (Mid):

– Rotating Speed (rpm): 2000

– Spline Size : 11 teeth involute spline

1 Year Warranty on all parts



**Optional Features**

ATTACHMENTS AVAILABLE:

Cultivator

Disc harrow

Mower



TRACTOR MANUAL
