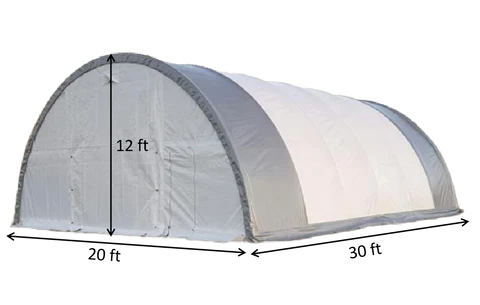

W20*L30*H12 PVC 450G- Single Trusses- Dome Shape Shelter

Features

  • 12ft drive through the front door to end door
  • An average 7-10 years of cover lifespan, depending on the environmental and weather conditions.
  • Style: Freestanding
  • Commercial grade galvanized steel tubes
  • 100% waterproof, fire retardant, UV inhibitor
  • Simple assembly, super easy to install
  • CSA/TUV Snow Rating Test Report
  • SGS fabric Certificate
  • Type: Prefabricated Building
  • Condition: New

Package Size

Category:

Specification

 Dimensions 20ft x 30ft x 12ft
Door Size H8ft x W16ft
Arch Interval 6ft
Arch Φ (mm)  70 x 42 x 1.50
Purlin Φ (mm)  40 x 1.20
Snow Rating 1.96 kpa /  41  pounds per sq. foot
Wind Load   50 miles per hour

 Snow Rate Test Result:

203012R Test Load Deflection
Lb Kpa Point A (inch) Point B (inch) Point C (inch)
Step 1 0 0 0 0 0
Step 2 1005 1.52 1.4 1.6 1.2
Step 3 1507 2.28 2.2 2.3 1.6
Step 4 Keep the test load until 30 minutes
Step 5 Remove the test load 0.6 1.1 1.2
Step 6 The test sample can withstand the applied test load without damage.
