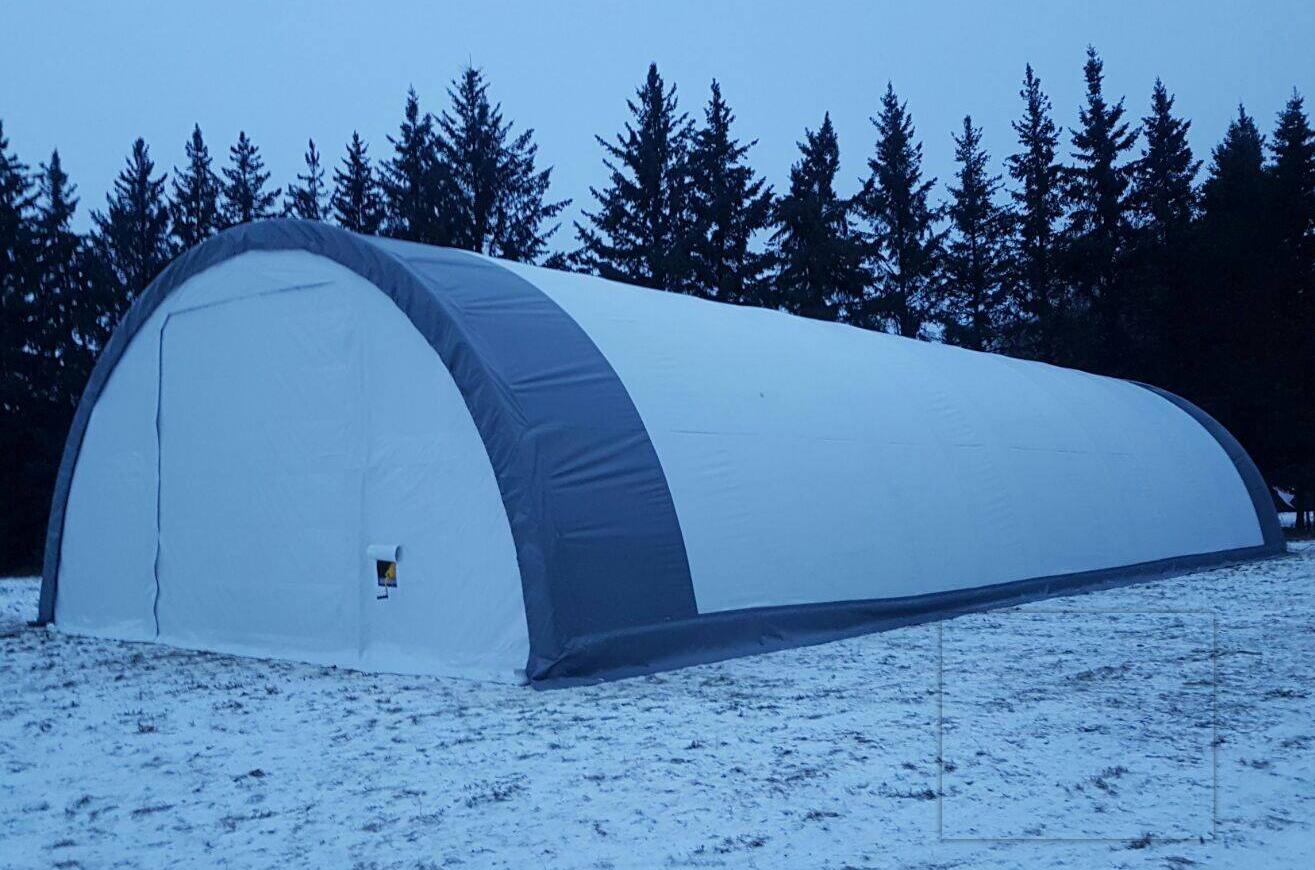

W30*L40*H15 PVC 450G- Single Trusses- Dome Shape Shelter

  • $4,830.00

Feature

  • Stable, durable, competitive-priced tent
  • 7-10 years of cover lifespan
  • Style: Freestanding
  • 100% waterproof, Self-cleaning, Tear-resistant, UV resistant
  • CSA/TUV Snow Rating Test Report
  • SGS fabric Certificate
  • Type: Prefabricated Building
  • Certificate: SGS
  • Condition: New
  • Application: warehouses, carport, Event and exhibition tents, Garages for trucks, buses, vans, and boats, Freight warehouses, Commercial tents

Package Size

  • L*W*H (inch): 115*30*30
  • Weight (lb): 1750
  • Please have a forklift or equivalent ready for unloading
Category:

Specification

Model S304015R

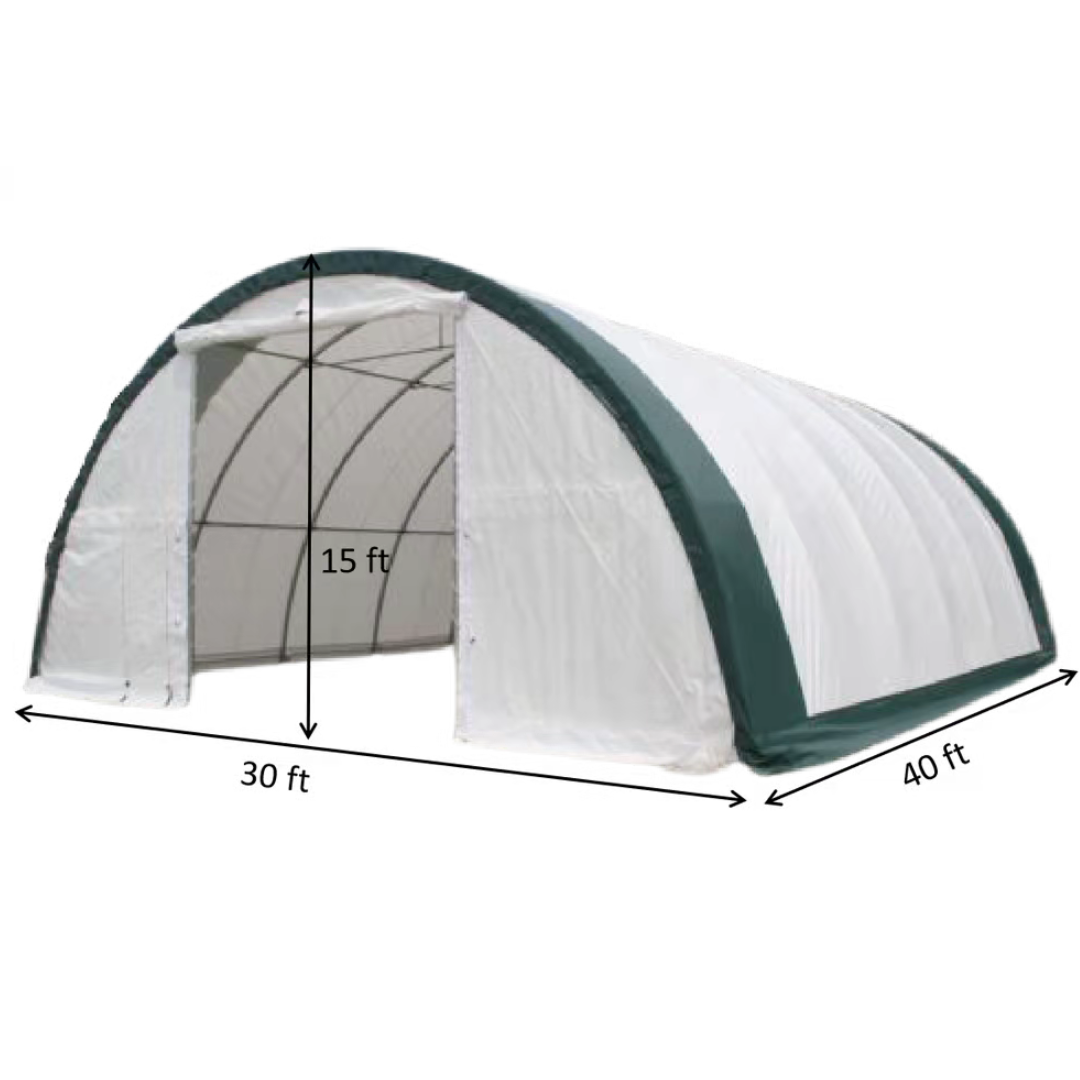

Dimensions 30ft  x 40ft x 15ft
Door dimension W11’6” x H11’6”
Arch Interval 6.6 ft
Arch Φ (mm) 70 x 42 x 2.0
Purlin Φ (mm) 40 x  1.5
Snow Rating 1.77 kpa /  37 pounds per sq. foot
Wind Load  50 miles per hour
Frame Galvanized steel tubes
Fabric cover · 300g (11oz) PE (cover price: $1,555)

· 450g (16oz) PVC (cover price: $2,150)

· 650g (23oz) PVC (cover price: $2,700)

· 750g (26oz) PVC (cover price: $3,100)

· 900g (32oz) PVC (cover price: $3,700)

· Please contact us to order
Color White color and green edges



Snow Rate Test Result:

304015R Test Load Deflection
Lb Kpa Point A (inch) Point B (inch) Point C (inch)
Step 1 0 0 0 0 0
Step 2 1005 1.52 1.4 1.6 1.2
Step 3 1507 2.28 2.2 2.3 1.6
Step 4 Keep the test load until 30 minutes
Step 5 Remove the test load 0.6 1.1 1.2
Step 6 The test sample can withstand the applied test load without damage.

Manual
