SPECIFICATIONS
Brake drum diameter: φ180-φ450 mm
Brake disc diameter: ≤400 mm
Working travel: 170 mm
Spindle rotation speed rpm 30/52/85
Feeding capacity 0.16 mm/r
Main motor 1.1Kw
Overall dimensions(L×W×H) 690×890×880 mm
Net weight: 320 KG

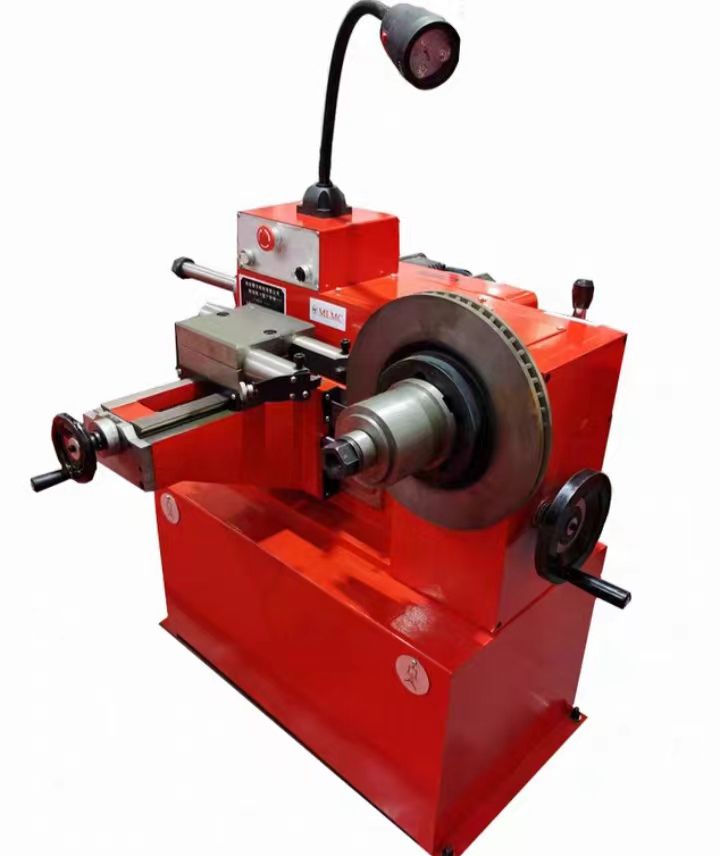

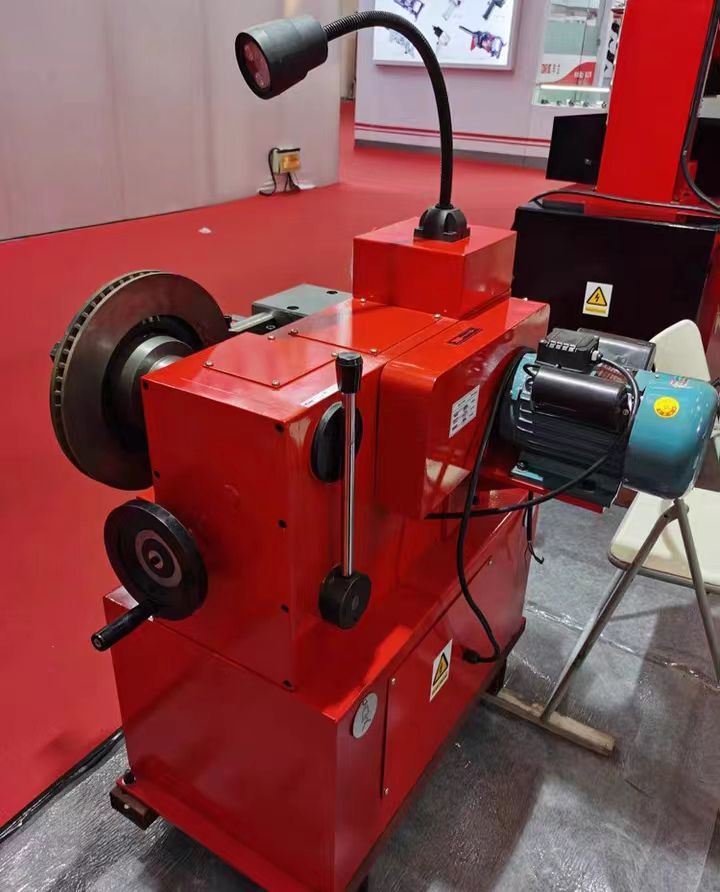

CAEL Brake Drum Lathe Machine BD450
$4999.00
Brake disc repair lathe of small bus and car BD450 is widely used to repair brake disk and brake drum of cars, buses and trucks, its maximum processing diameter is 450mm. Brake disc repair lathe of small bus and car BD450 is high efficiency, easy operation and energy saving. Brake drum lathe machine is the effective machine tool for the car repair shop.
