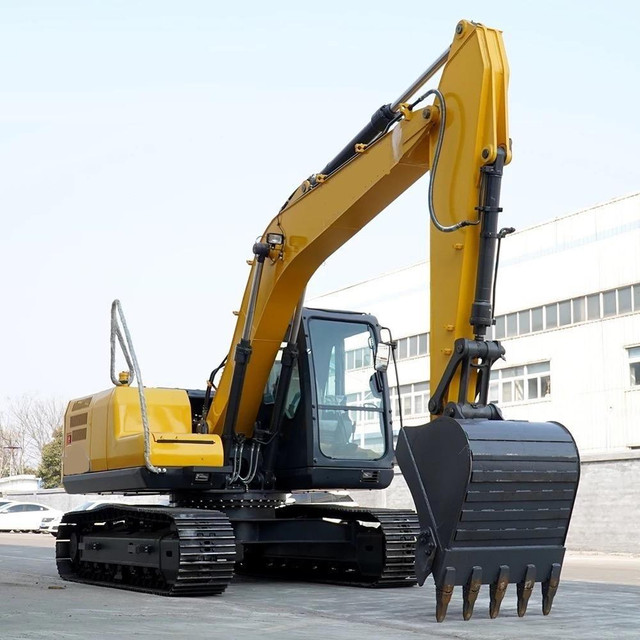

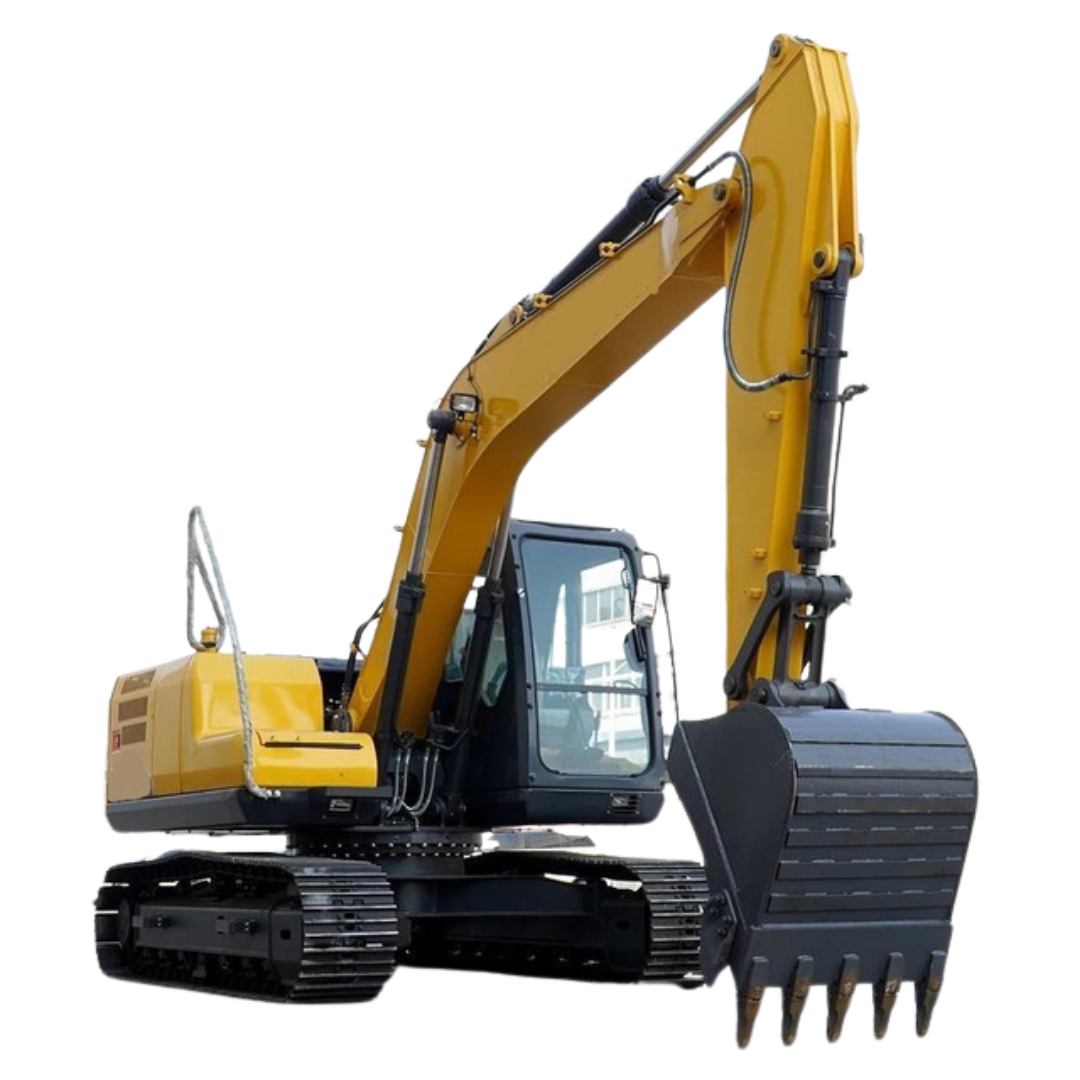

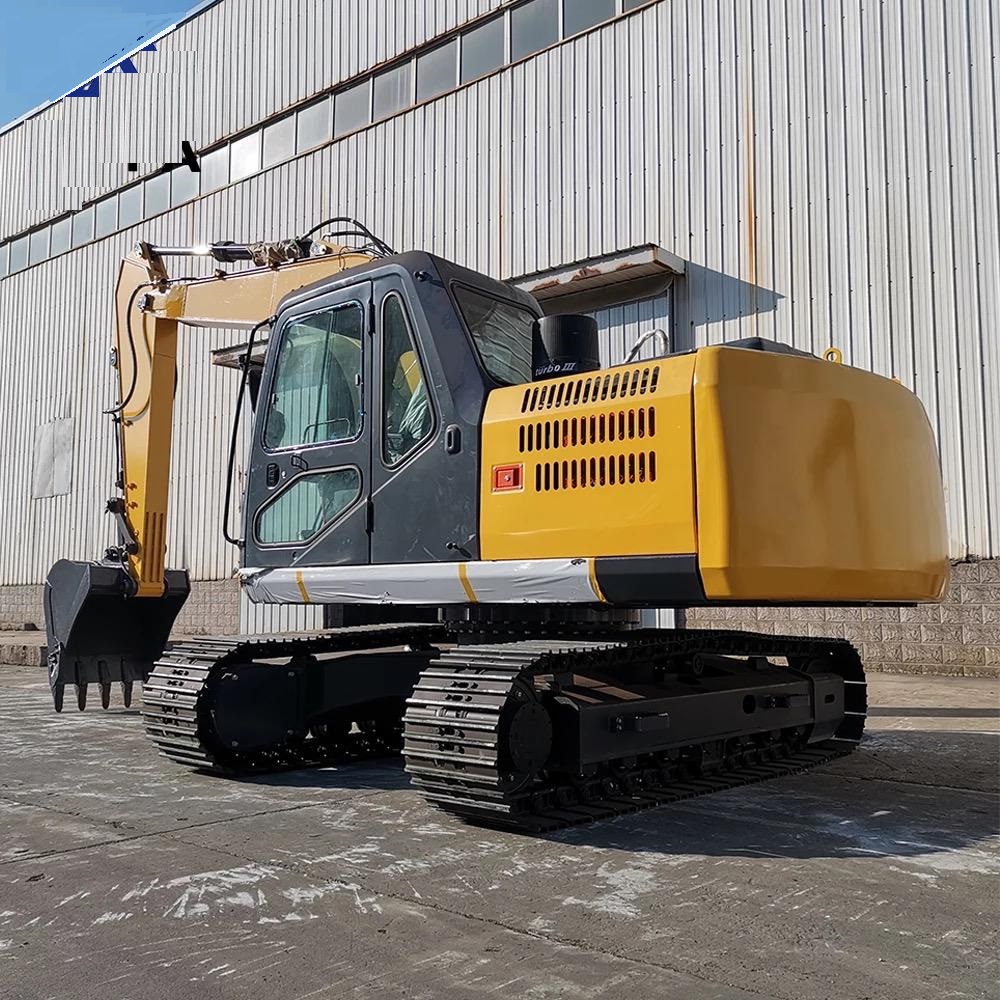

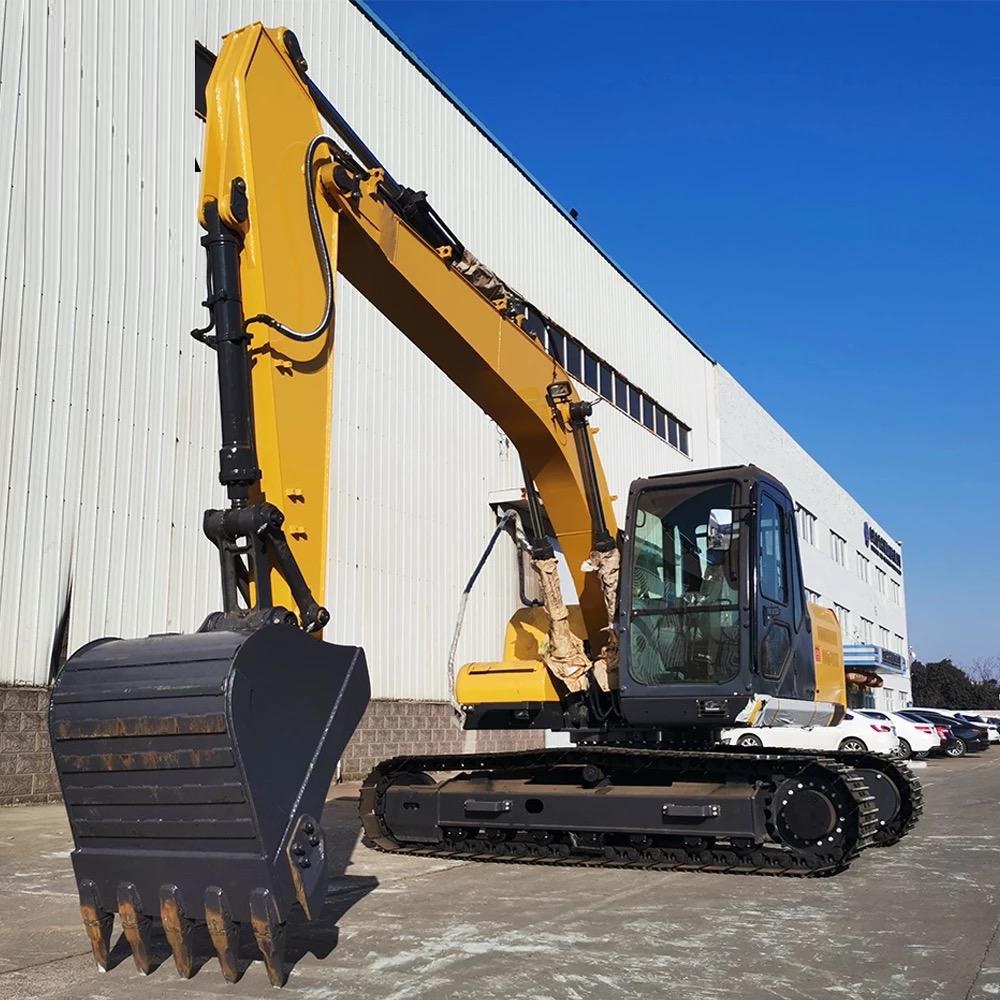

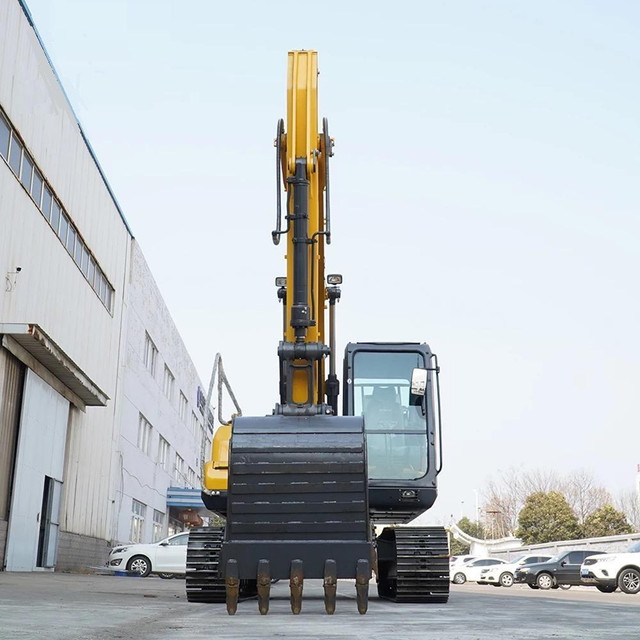

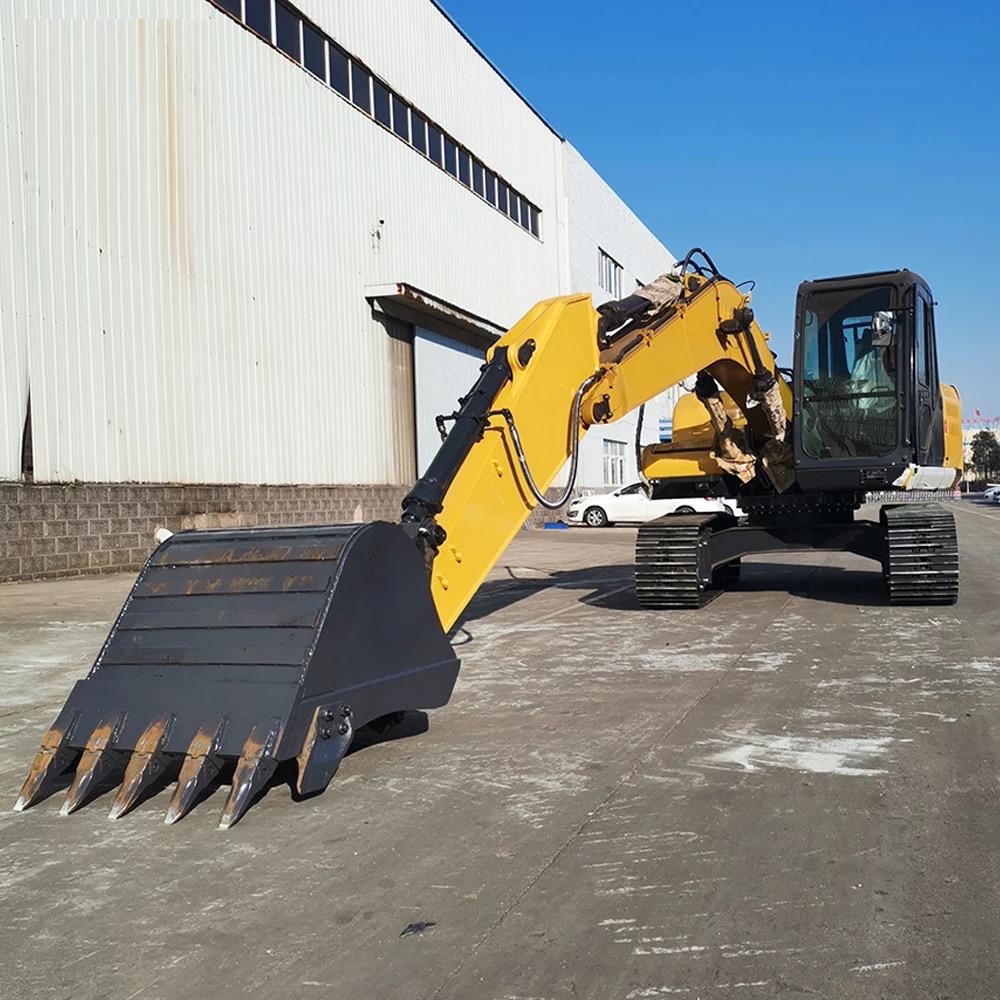

*** Specifications ***

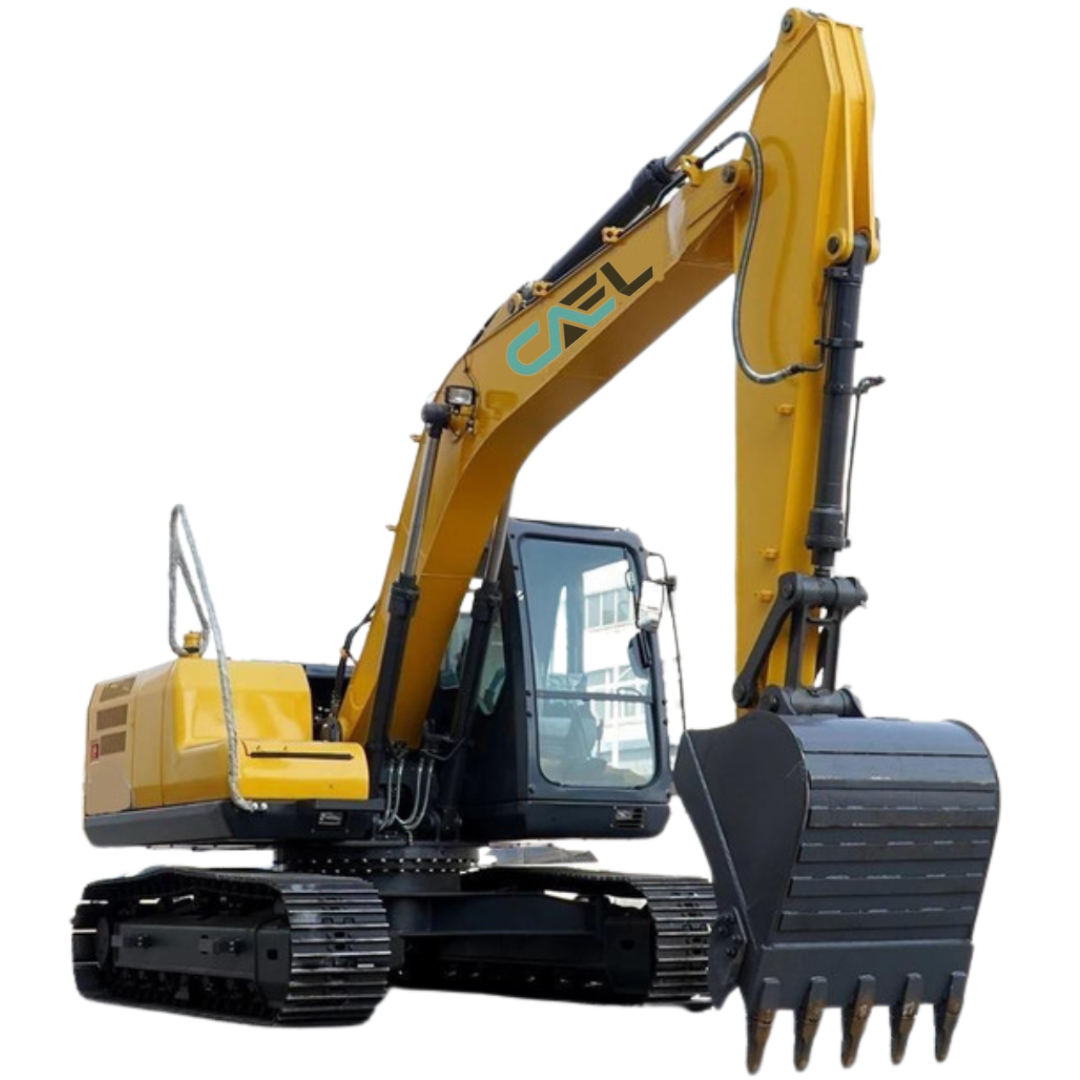

Brand : CAEL

Machine working weight: 14,500kg/ 31967 LBS

Bucket capacity (m2) 0.27-0.76

Boom length: 4620mm/ 15.15 inch

Stick length: 2900 mm/ 9.51 inch

Overall width of transport(mm) :2602/ 8.53 inch

Overall height of transport(mm) :2982/ 9.78 inch

Boarding width(mm) :2492/ 8.17 inch

Track length(mm) 3497/ 11.47 inch

Track full width(mm) 2600/ 8.53 inch

Track shoe width(mm) 602/ 1.97 inch

Back end turning radius(mm) 2202/ 7.22 inch

Minimum ground clearance 408 mm/ 1.33 inch

Performance

Walking speed(km/h) 3.3-4.9

Swing speed(rpm) 11.9

Bucket Digging Force (KN)77.3/81.4

Stick excavator(KN) 57.7/63

Scope of Work

Maximum excavation range 8742 mm/ 28.68 inch

The largest excavation range on the ground 8602mm/ 28.22 inch

Maximum excavation depth 6132 mm/ 20.11inch

Maximum excavator height 8952mm/ 29.37inch

Maximum discharge height 6532mm/ 21.43inch

Maximum vertical depth that can be excavated 4652 mm/ 15.26inch

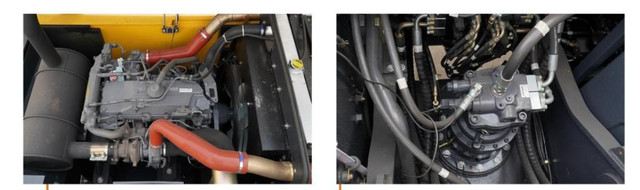

Engine

Engine model: Isuzu/Cummins

Rated power(kw/rpm) 75/1900

Cooling method: water cooling

Body Size

Total length of transport: 7702 mm/ 25.26inch

**2years warranty on motor **

**1year Warranty on all parts**

Option Hydraulic Thumb: C$3000

Option Dozer Blade: C$3500
