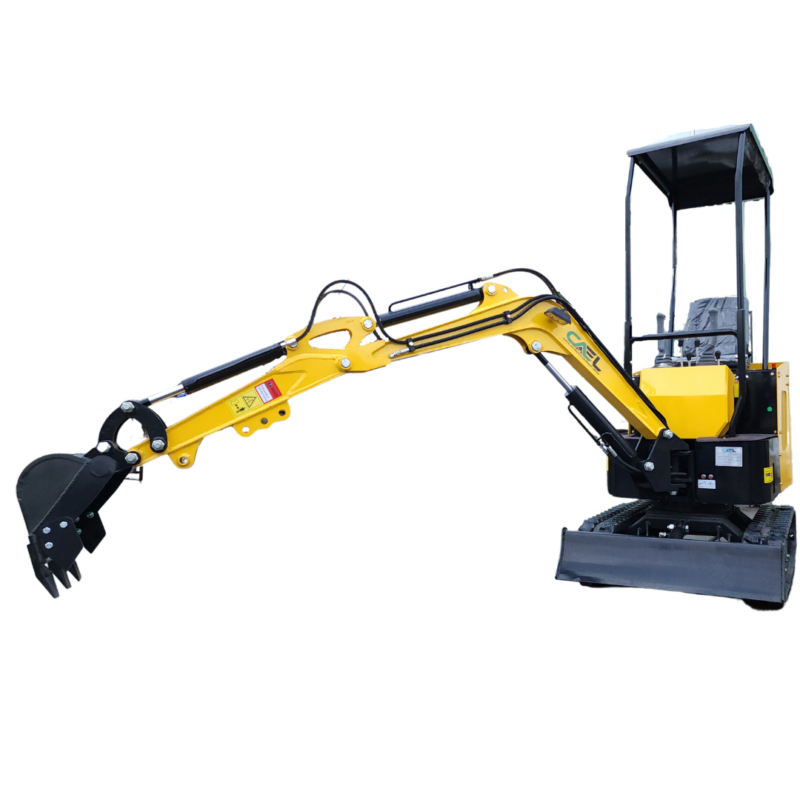

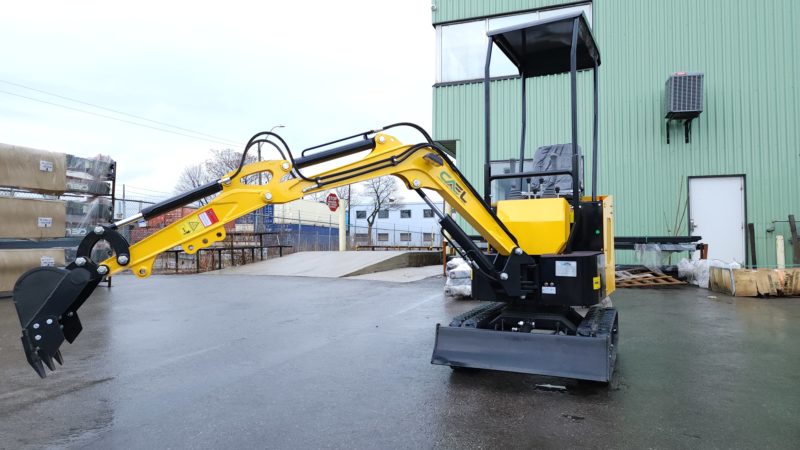

Mini Excavator 1.3T Kubota with Swing boom (EX13KB)

  • $12,999.00

Category:

****Specifications*****

Brand : CAEL

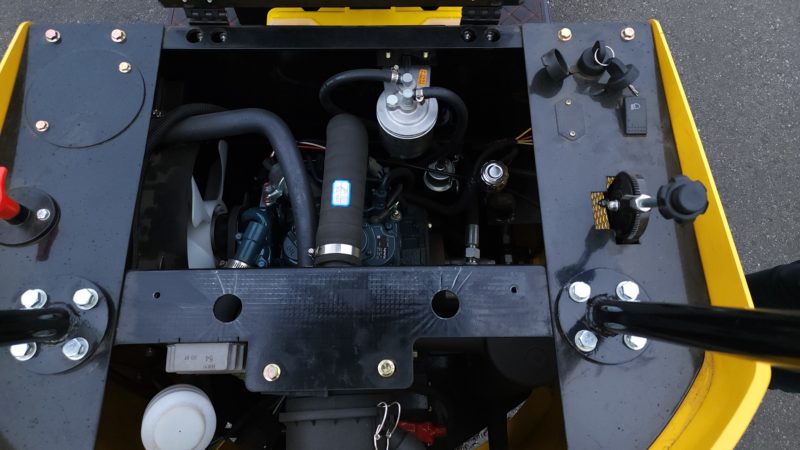

ENGINE : KUBOTA 12HP

Weight: 1280 KG/ 2822 LBS

Transport length: 2650mm/ 104 inch

Transport Width: 1030 mm/ 40.5 inch

Transport height 1550mm/ 61 inch

Bucket width: 420mm/ 16.5 inch

Boom length: 1350mm/ 53 inch

Arm length:700mm/ 27.5 inch

Gradeability: 35%

Max traction force: 700KG/ 1543 LBS

Engine: Kubota (double cylinder )

Displacement: 0.794

Excavator width: 930mm/ 36.6 inch

Min ground clearance:400mm/ 15.7 inch

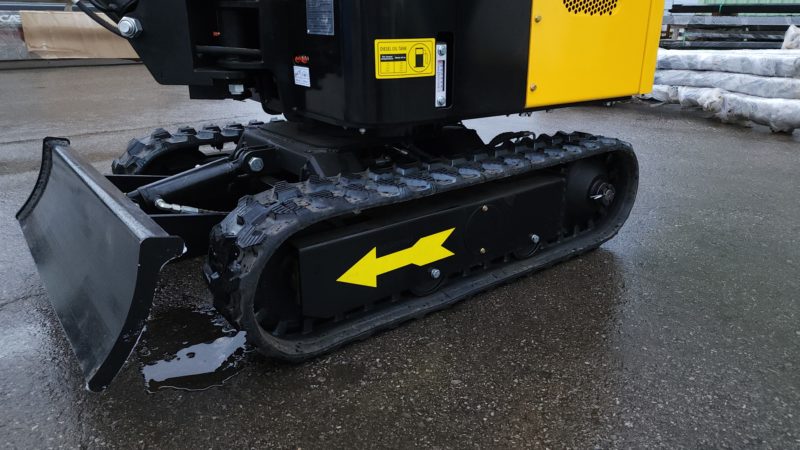

Track ground length: 1100mm/ 43.3 inch

Track length: 1350mm/ 53 inch

Track width: 180mm/ 7 inch

Trackwidth: 1030 mm/ 40.5 inch

Max dig radius 2550mm/ 100 inch

Max. dig depth: 1600mm/ 63 inch

Max. dig height:2500mm/ 98.4 inch

Max unload height: 1750mm/ 68.8 inch

Dozer blade (WxH) : 1030 x 210mm (40.5x 8.26 inch)

Dozer blade lift/push: 155-172mm (6-6.7 inch)

Theoretical oil consumption: 1.3-1.5 (L/h)

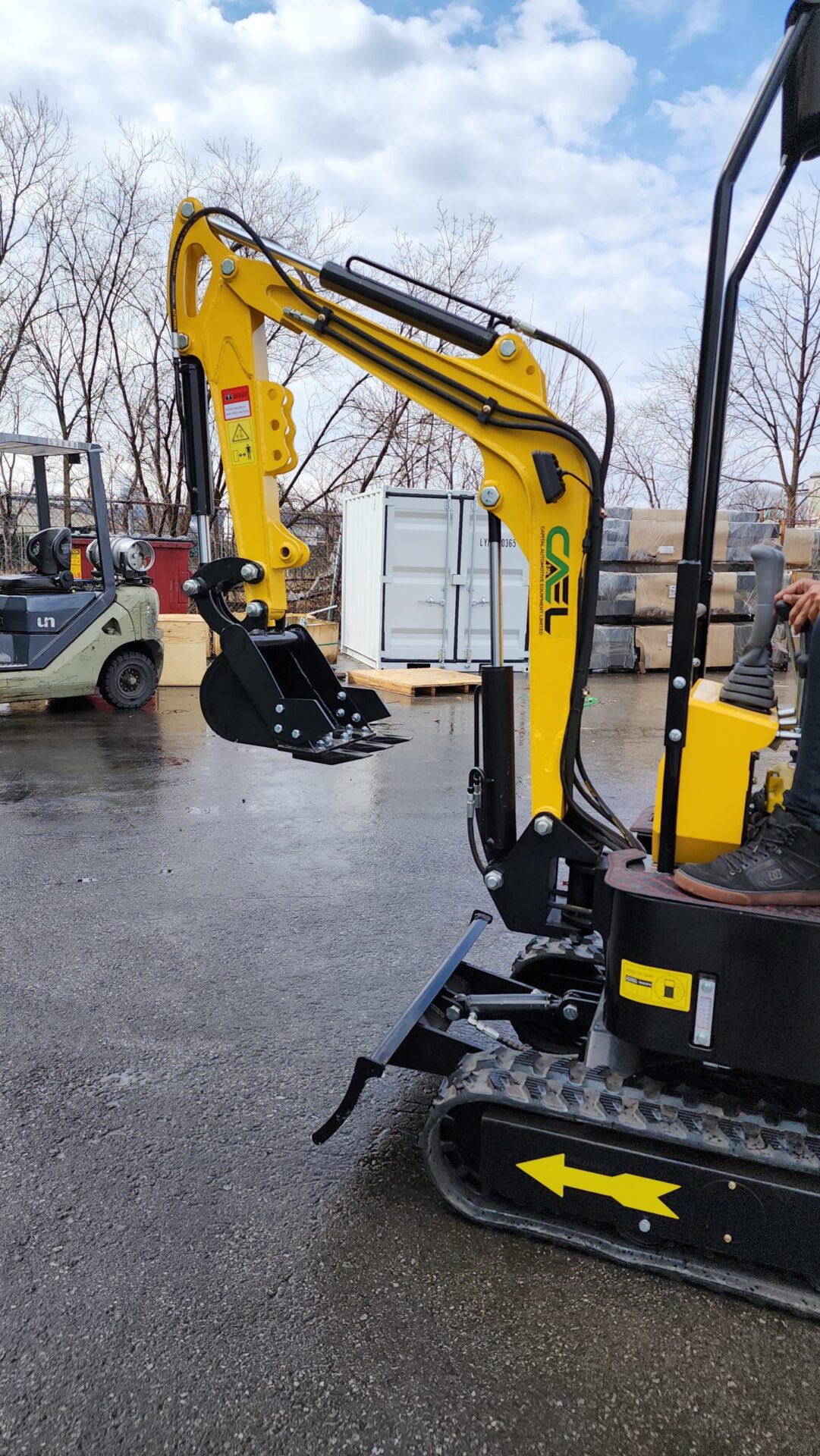

Swing Boom

1 Year Warranty on all parts
