*** Specification***

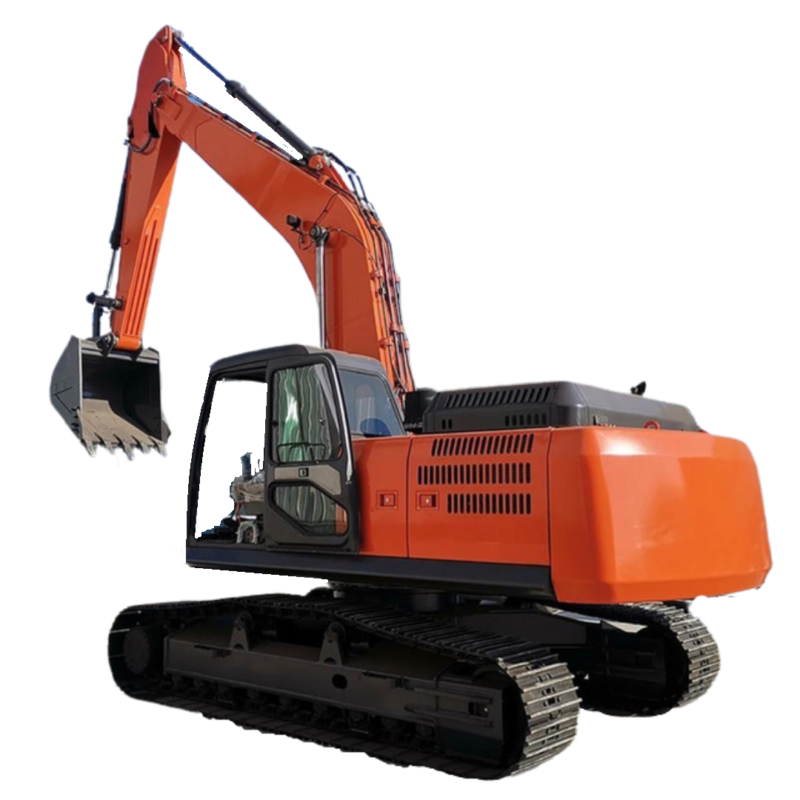

– Brand : CAEL
– Machine working weight :(kg) 21500/ 47399 LBS
– Bucket capacity(m3) : 0.5-1.28
-Boom length(mm) : 5700/ 224inch
-Stick length(mm) : 2900/114inch
-Overall width of transport(mm) : 2900/114inch
-Overall height of transport(mm) : 3030/119.29inch
-Full height of cab(mm) : 3000/118.11 inch
-Track length(mm) : 4440/ 174.80 inch
-Track full width(mm) : 2990/117.71 inch
-Track shoe width(mm) : 600/ 23.62inch
-Back end turning radius(mm) : 2750/ 108.26inch
-Minimum ground clearance(mm) : 480/ 18.89inch

*** Performance ***

– Swing speed(rpm) 12.4
– Walking speed(km/h) 3.1-4.5
– Bucket Digging Force (KN) : 136.2
Stick excavator(KN) 97

*** Scope of work ***

– Maximum excavation range (mm) : 9910/ 390.15inch
– Maximum excavation depth (mm) : 6445/ 253.74inch
– Maximum excavator height (mm) : 6045/ 237.99inch
– Maximum discharge height (mm) : 6810/ 268.11 inch
– Maximum vertical depth that can be excavated(mm) : 6045/ 237.99inch

*** Engine ***

– Engine model : Cummins
– Rated power(kw/rpm) : 110/1950
– Cooling method : water cooling

*** Body size ***

Total length of transport (mm) : 9510/ 374.40inch

**2years warranty on motor **

**1year Warranty on all parts**

Option Hydraulic Thumb: C$3000

Option Dozer Blade: C$3500
