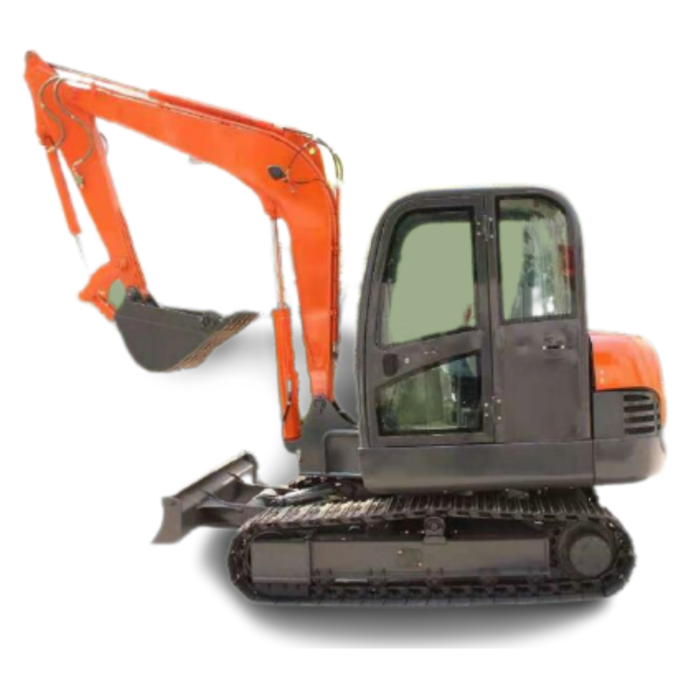

Excavator 5 ton with Yanmar Engine (EX-5Y)

  • $52,499.00

Brand : CAEL

Engine : yanmar

Emission: EPA4

Make/ Modle: Kubota/D1703

Power/Roataion speed: 8.5Kw (25 HP) @2200rpm

Number of Cylinder: 3

Type: in-line, water cooled, 4 stroke, Machnical pump, normal aspirated

Max Torque: 97.4 N.m / 1500 rpm

Displacement: 1.647L


Track Driving System

MaxTravel Speed (High/Low): 4.4/2.4 km

Width of steel trach shoe: 300mm/11.81inch Carrier roller (Each side): 1Supporting Roller (each side): 4


Performance Parameter

Standard Bucket Capacity: 0.12m3

Swing Speed: 9rpm

Max Grade Ability: 58%

Grounbf pressure: 32Kpa

Max Bucket Digging Force: 30.4KN

Max Arm Digging Force: 18.2KN

Hydraulic System Pressure: 22.5 Mpa

Machine Weight: 3810Kg/ 8399.61 LBS

Boom Length: 2535mm/ 99.80Inch

Arm Length: 1400MM/ 55.11 Inch

Fuel tank: 42L

Hydraulic Tank: 48.5L

Engine Oil Capacity: 7L


Machine size


Overall dimension (LxWxH): 4915mm*1720mm*2525mm (193.5inch*67.7inch*99.4inch)

Axle base (Track length on the ground): 1670mm/ 65.74Inch

Length of rubber track: 2154mm/ 84.80inch

Track guage : 1420mm/ 55.90inch

Min Ground Clearance: 295mm/ 11.61inch

Swing radius with tail : 860mm/ 33.85inch

Swing radius in front: 2538mm/ 99.60inch

height of blade: 350mm/ 13.77inch


Working range

Maximum Digging Height: 4800mm/ 188.97inch

Max Dumping Hight: 3406mm/ 134.09inch

Max Digging depth: 3208mm/ 126.29inch

Max vertical digging depth: 2957mm/ 116.41inch

Max Digging distance: 5480mm/ 215.74inch

Max Digging distance (On ground): 5395mm/ 212.40inch

Min swing radius: 2530mm/ 99.60inch

Max height min swing radius: 2530mm/ 99.60inch

Max lifting height of blade : 365mm/ 14.37inch

Max cutting dept of blade: 385mm/ 15.15inch

Boom swing angle (Left/Right): 55″/65″ (2.16inch/ 2.55inch)


**2years warranty on motor **

**1year Warranty on all parts**


Optional Hydraulic Thumb: C$2500
