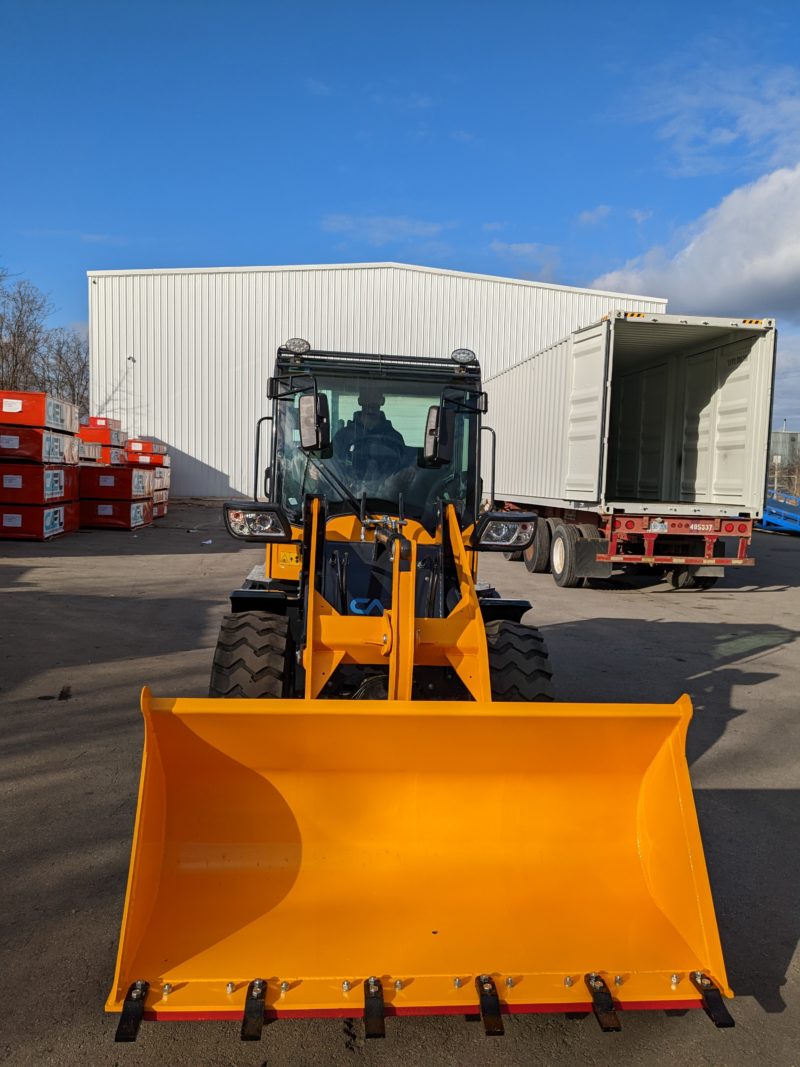

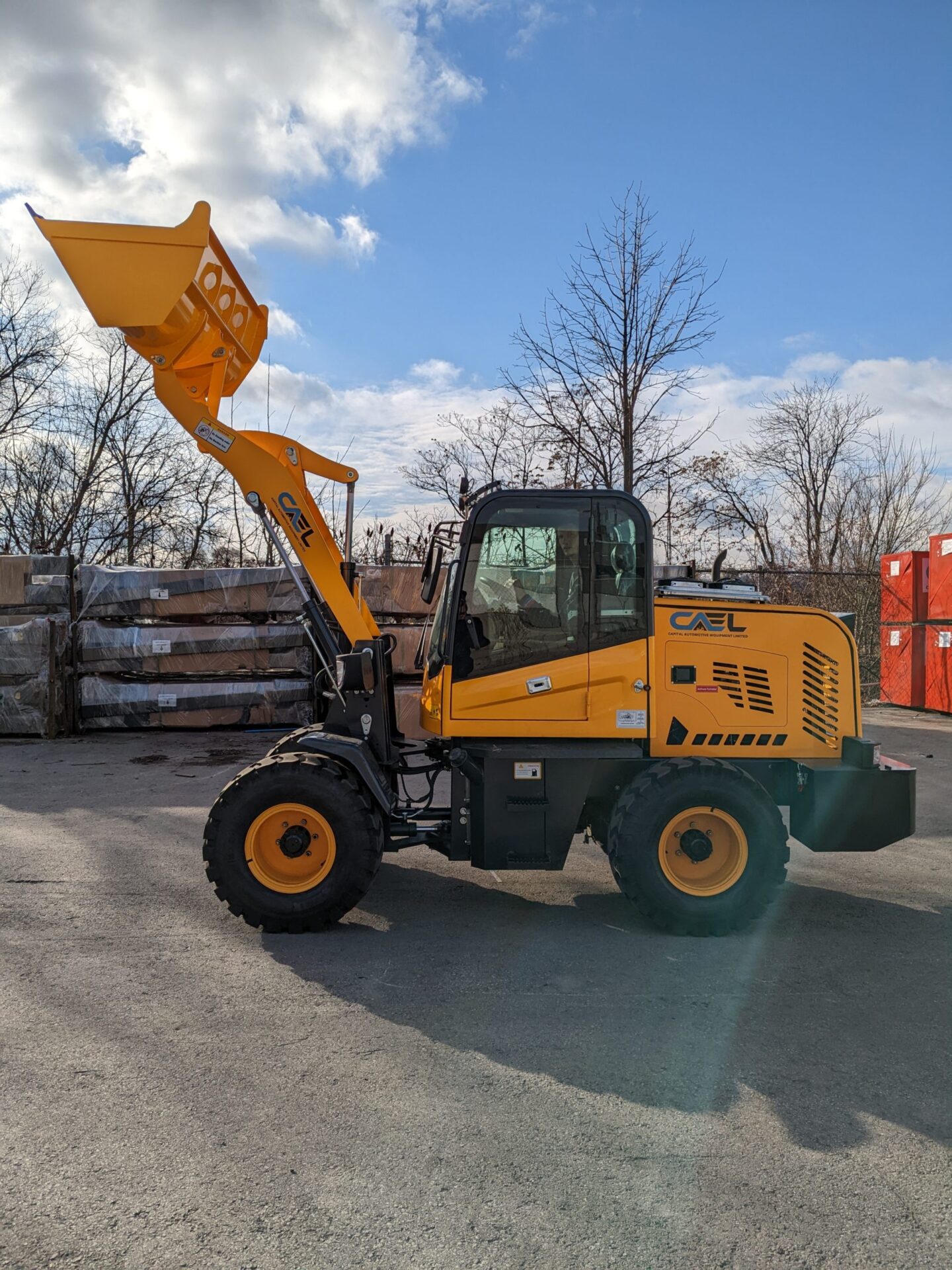

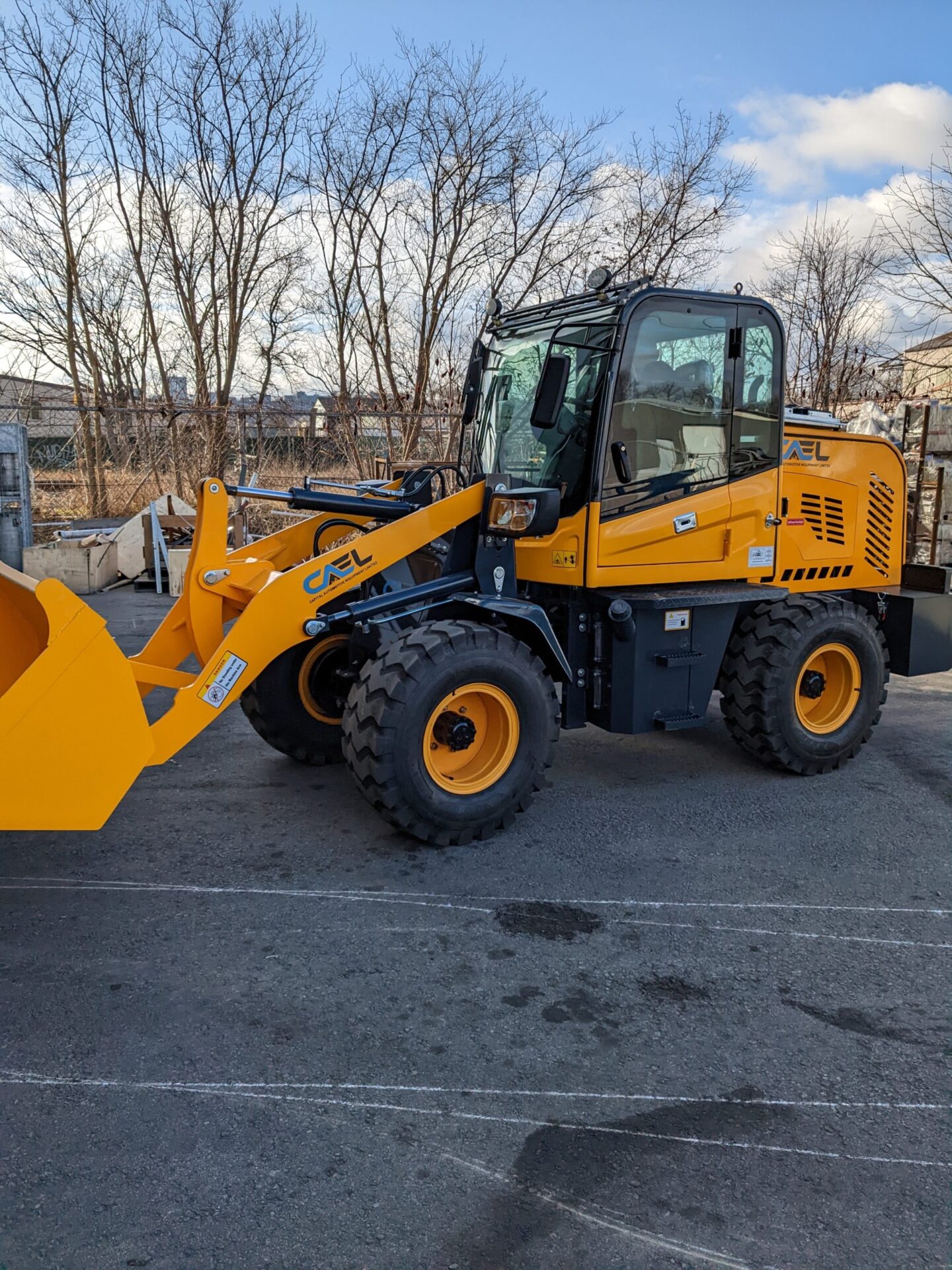

Mini Wheel loader 4×4 (0.8T)

  • $28,999.00

Model : CAEL Wheel Loader-08T

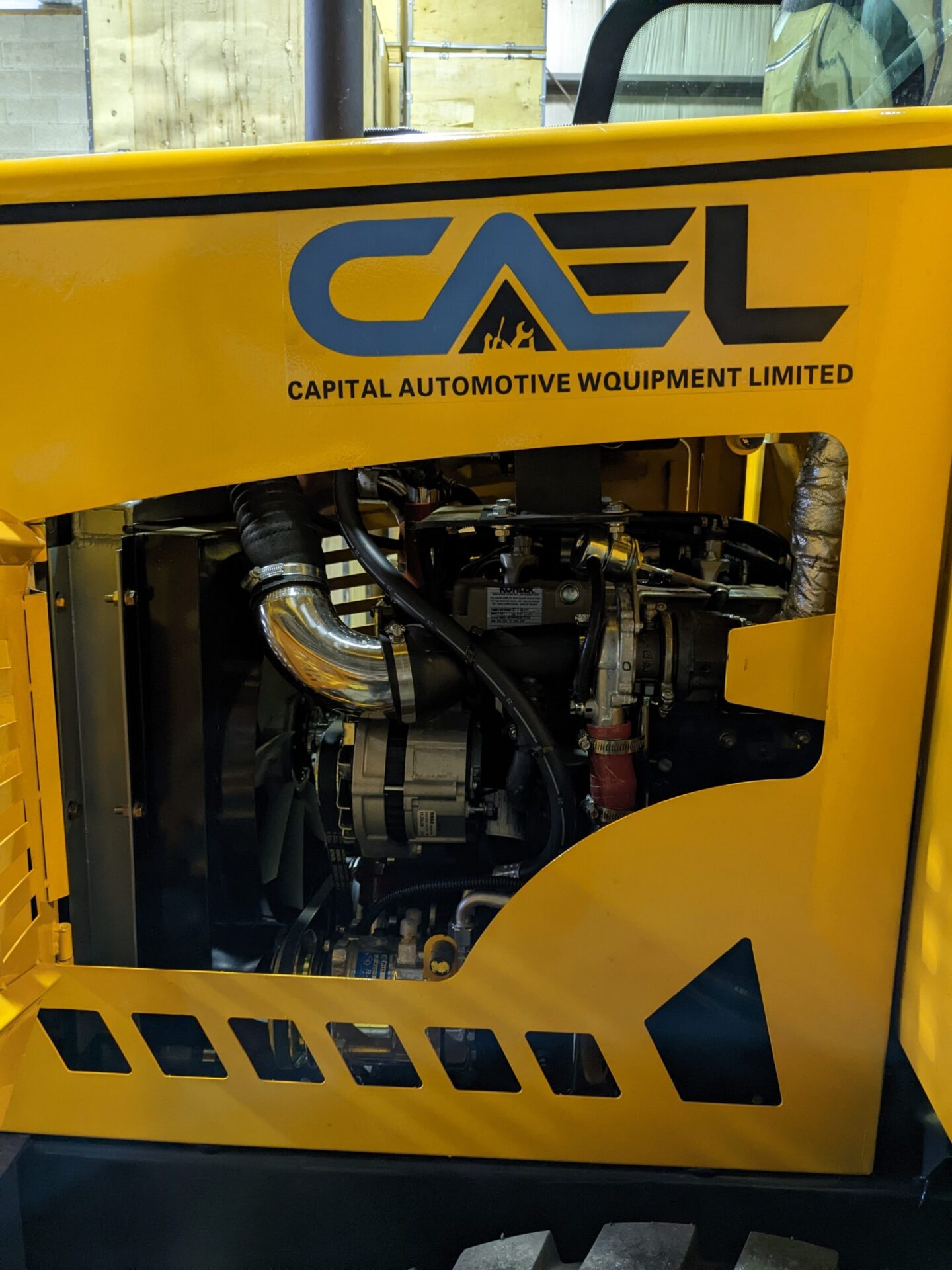

Engine Performance

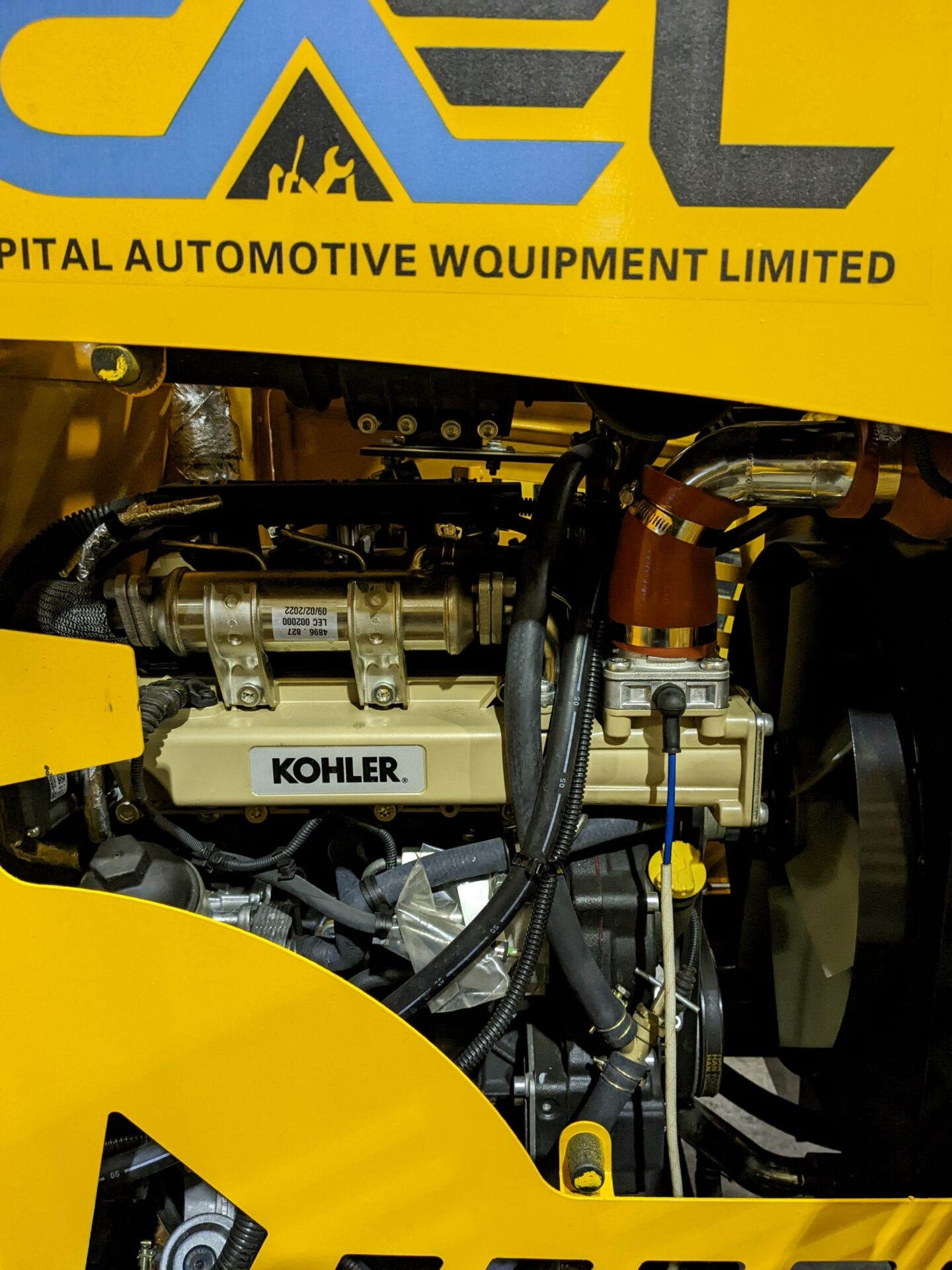

Brand Engine : Kohler 1903

Power (Kw): 41/ 55 HP

Emission: epa 4

Number of Cylinder: 4

Form: Inline water cooling


General Machine Performance

Dimensions : 138 x 51x 87

Rated Load (LBS): 800KGS/1764LBS

Weight: 2600kg/5733 LBS

Operating weight : 5735 LBS

Wheel Base: 78.75″

Wheel Thread: 45″

Tire Size – 1000-16

Bridge: Small wheel side Bridge

Minimum ground clearance: 240mm/9.44 inches

Minimum turning radius: 2450mm/96.4 inches

Climbing ability: 30%

Maximum speed: 30 km/h


Bucket Performance:

Rated Load (LBS): 800KGS/1764LBS

Bucket Capacity Range: 0.4-0.6 cubic meter

Standard Bucket Capacity: 0.4 cubic meter

Bucket Width: 51″

Dumping Height: 94.5″

Dumping Reach: 23.6″

Max. Raising Height: 118.11″


Braking System

Service: Oil drum brake on 4 wheel

Parking brake: Hand Brake

Brake type: Steam brake


Transmission Performance

Transmission Type: Automatic

Axle: AWD, Isuzu

Gear Shift: H/L, F/R

Gear position: Front and rear dual high and low speeds

Control Lever: 1

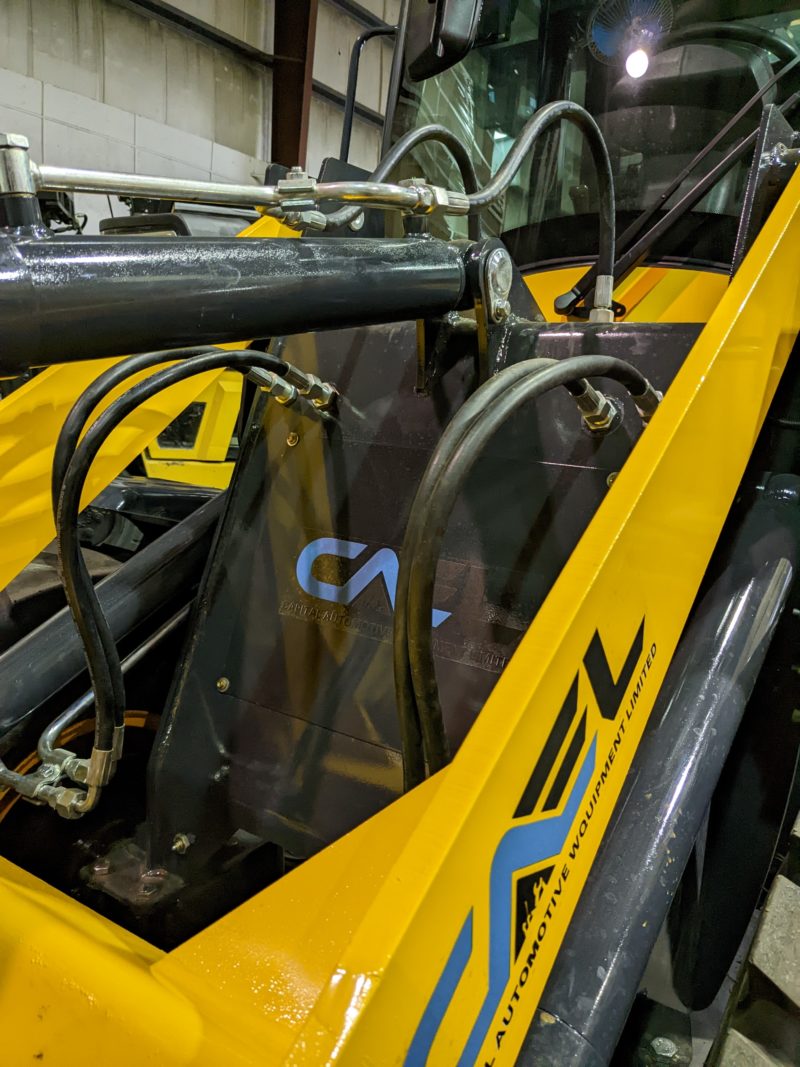

Oil cylinder: Standard

Uninstall time: 1.1 s

Driving type: Articulated body hydraulic torque converter four-wheel drive

Working pump: Gear pump

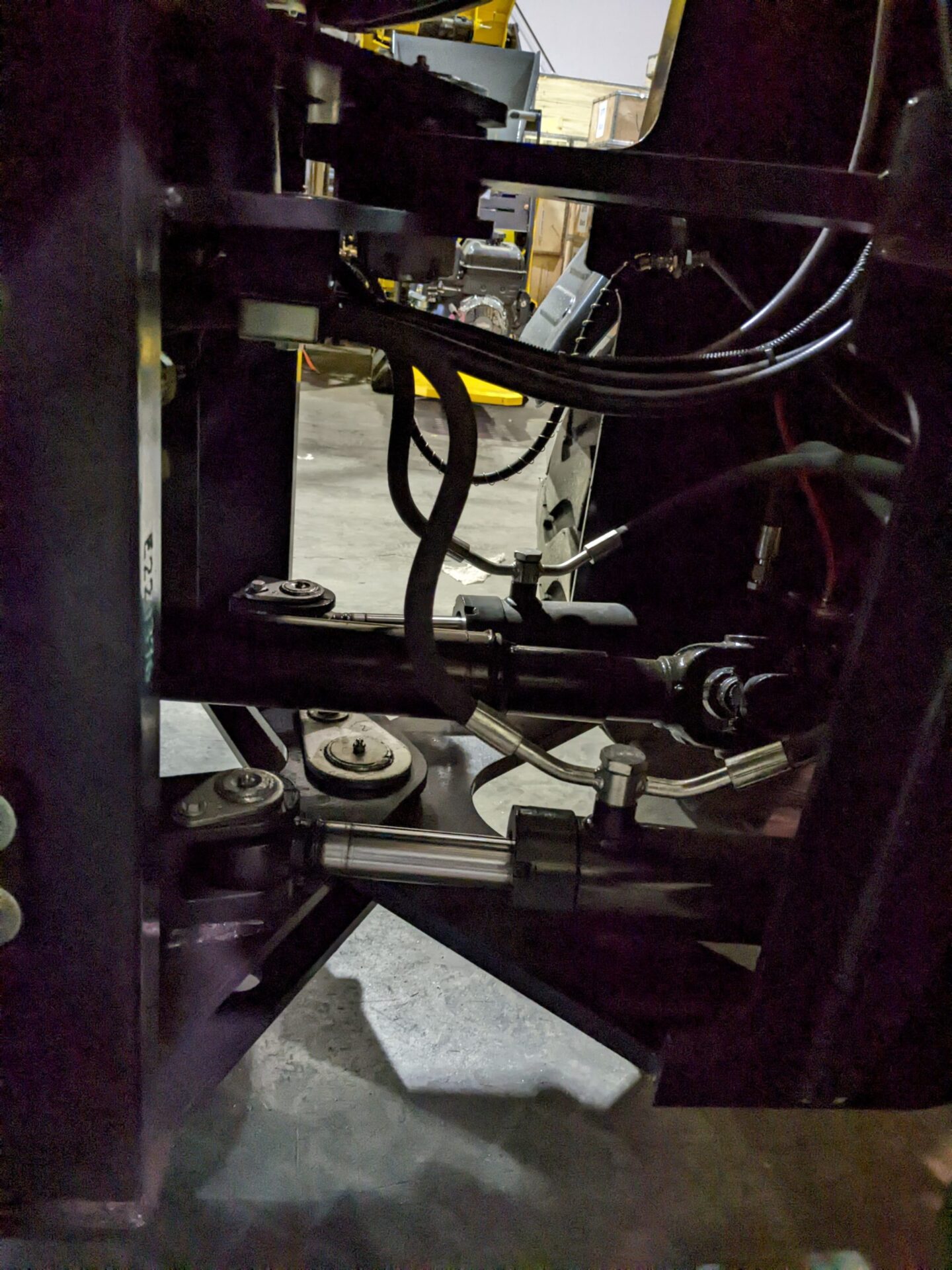

Steering type: Articulated body steering

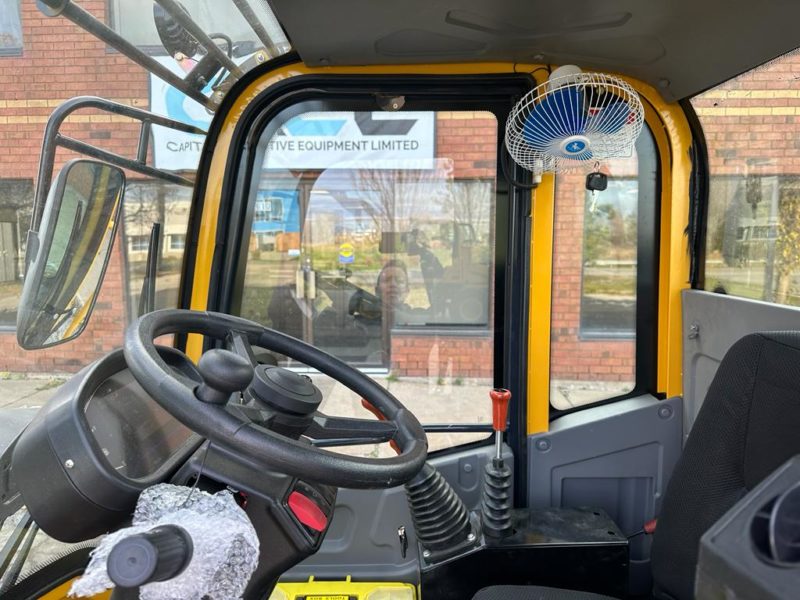

Control Type:

Controlled via a user-friendly  Joystick

Lifting Time: 6s

Lowering Time: 4s


Packaging size: LxWxH 140 x 53 x 89

Packaging weight: 5735 LBS
