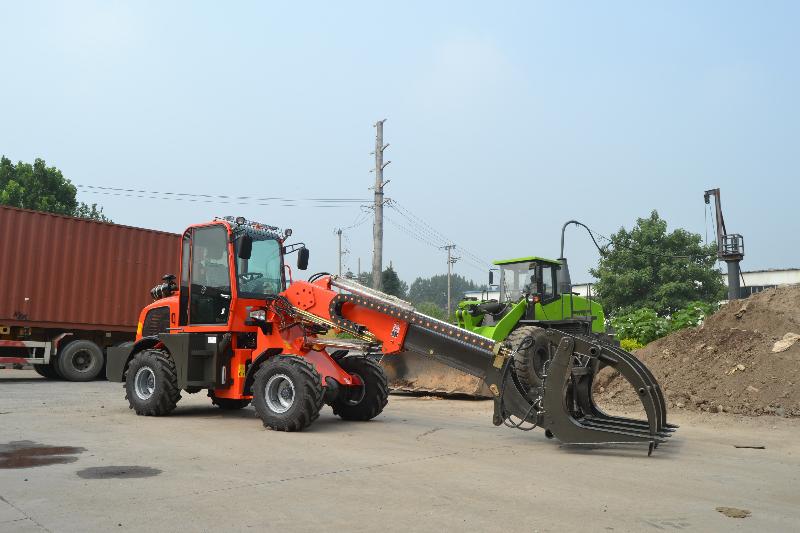

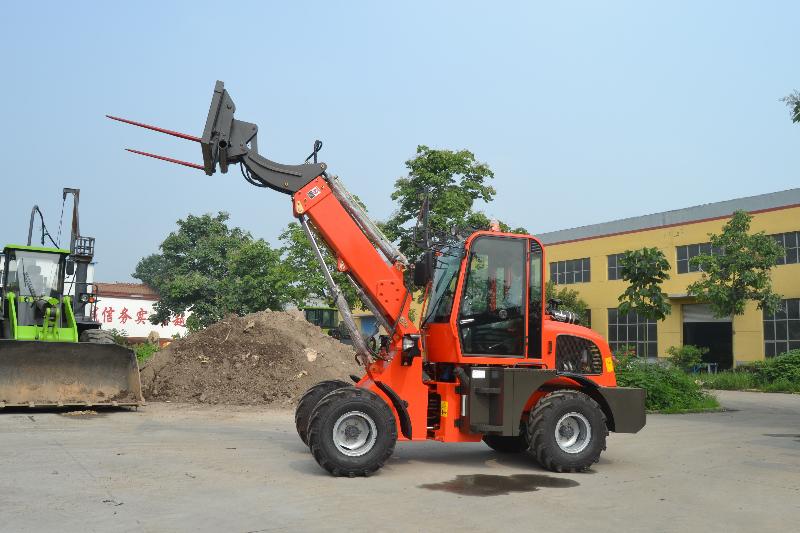

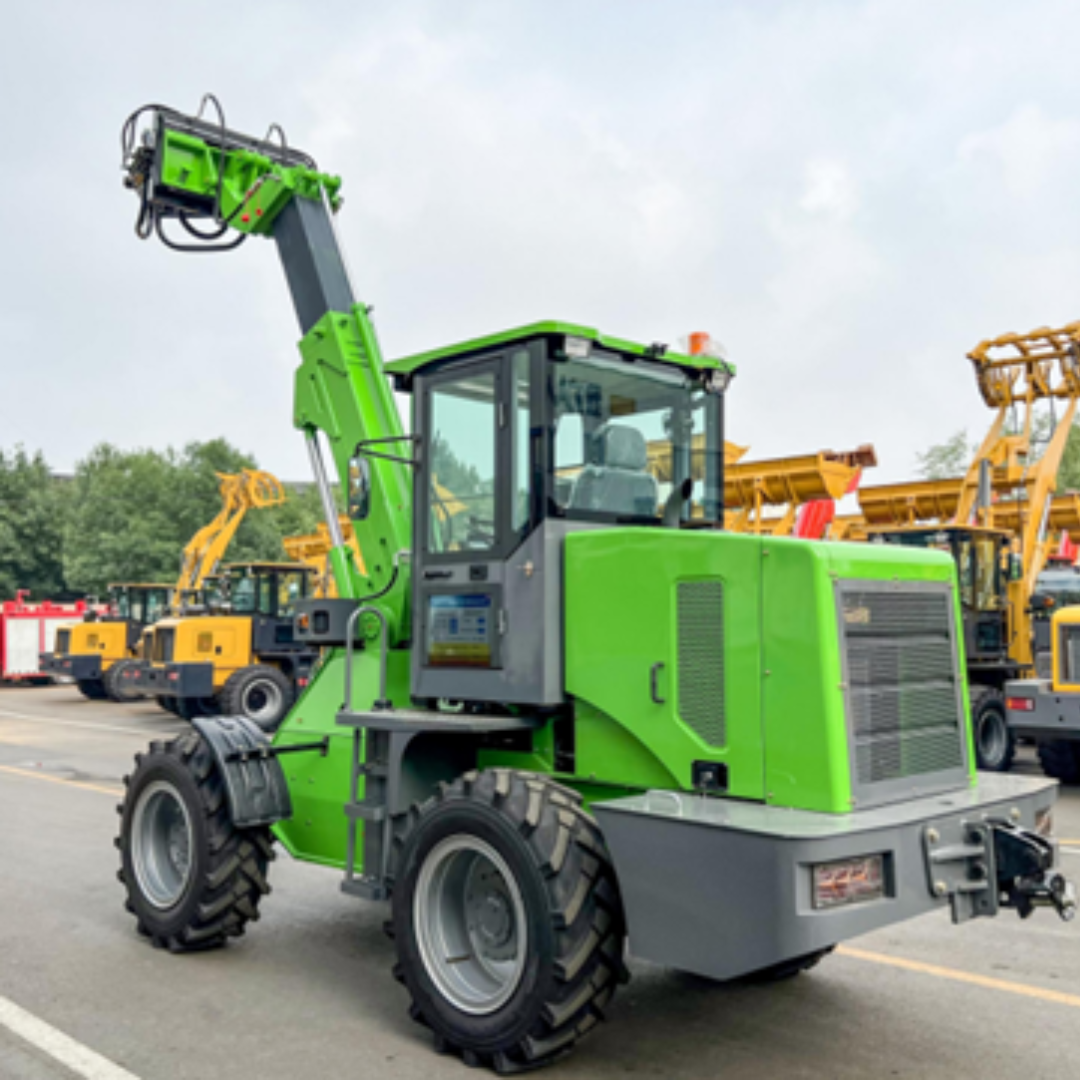

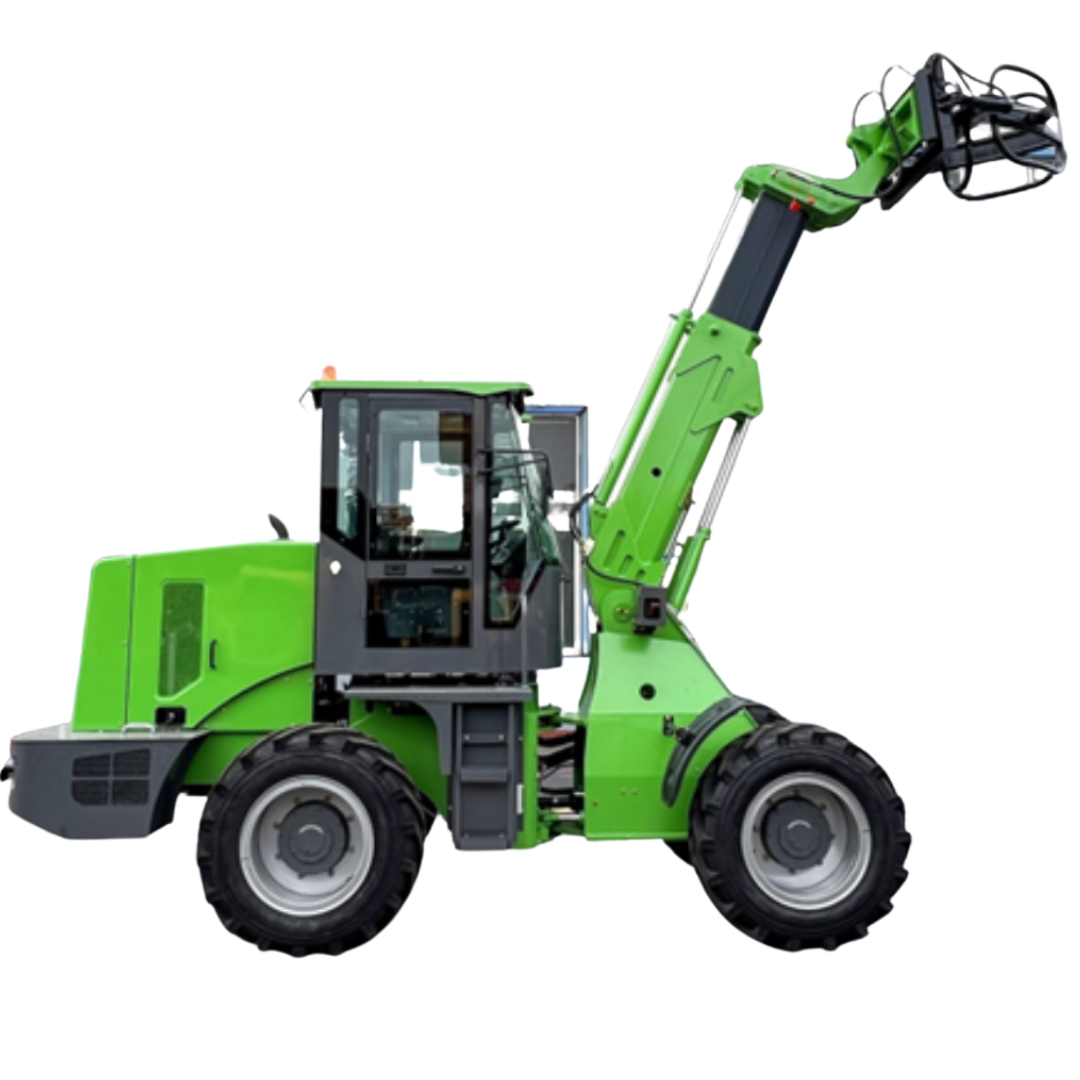

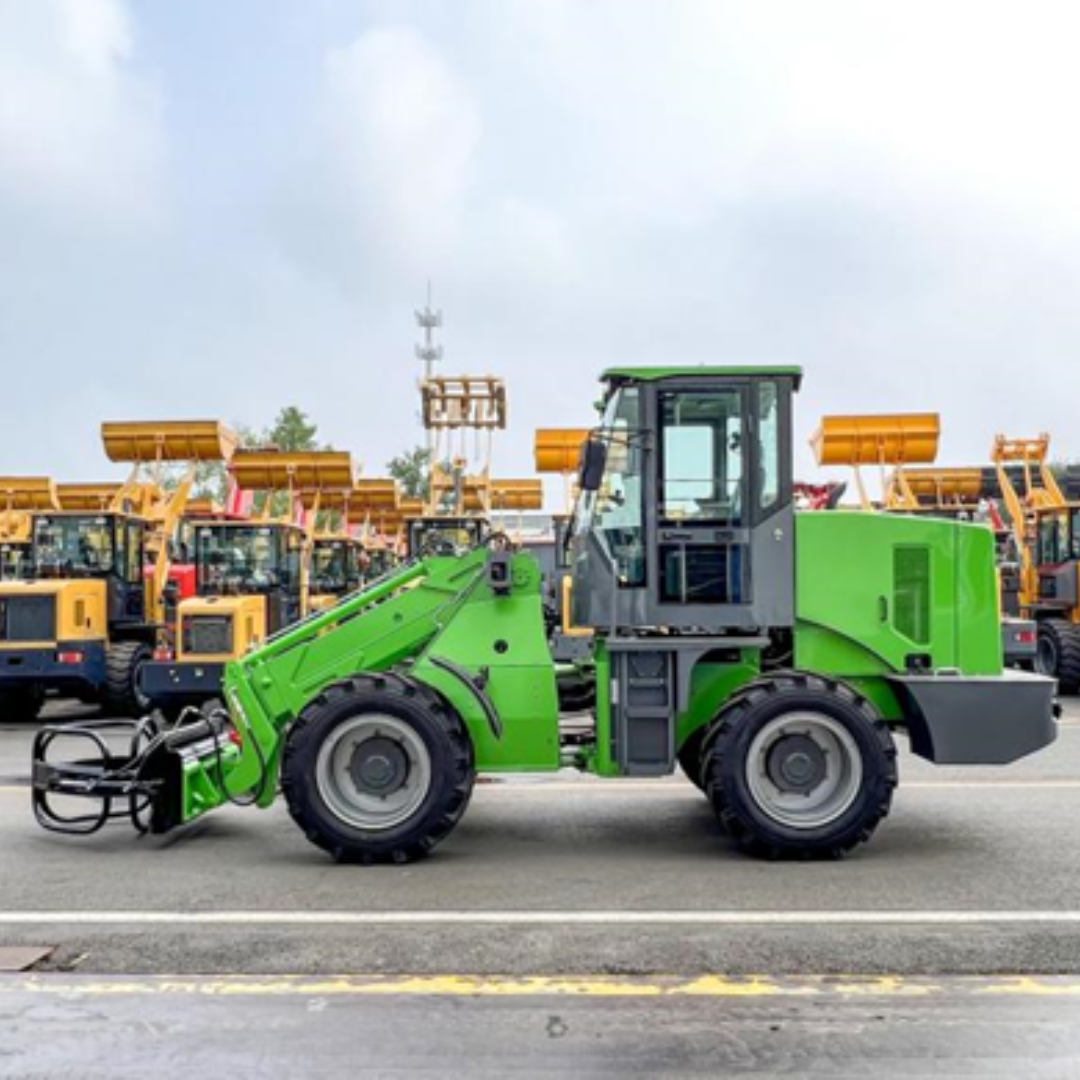

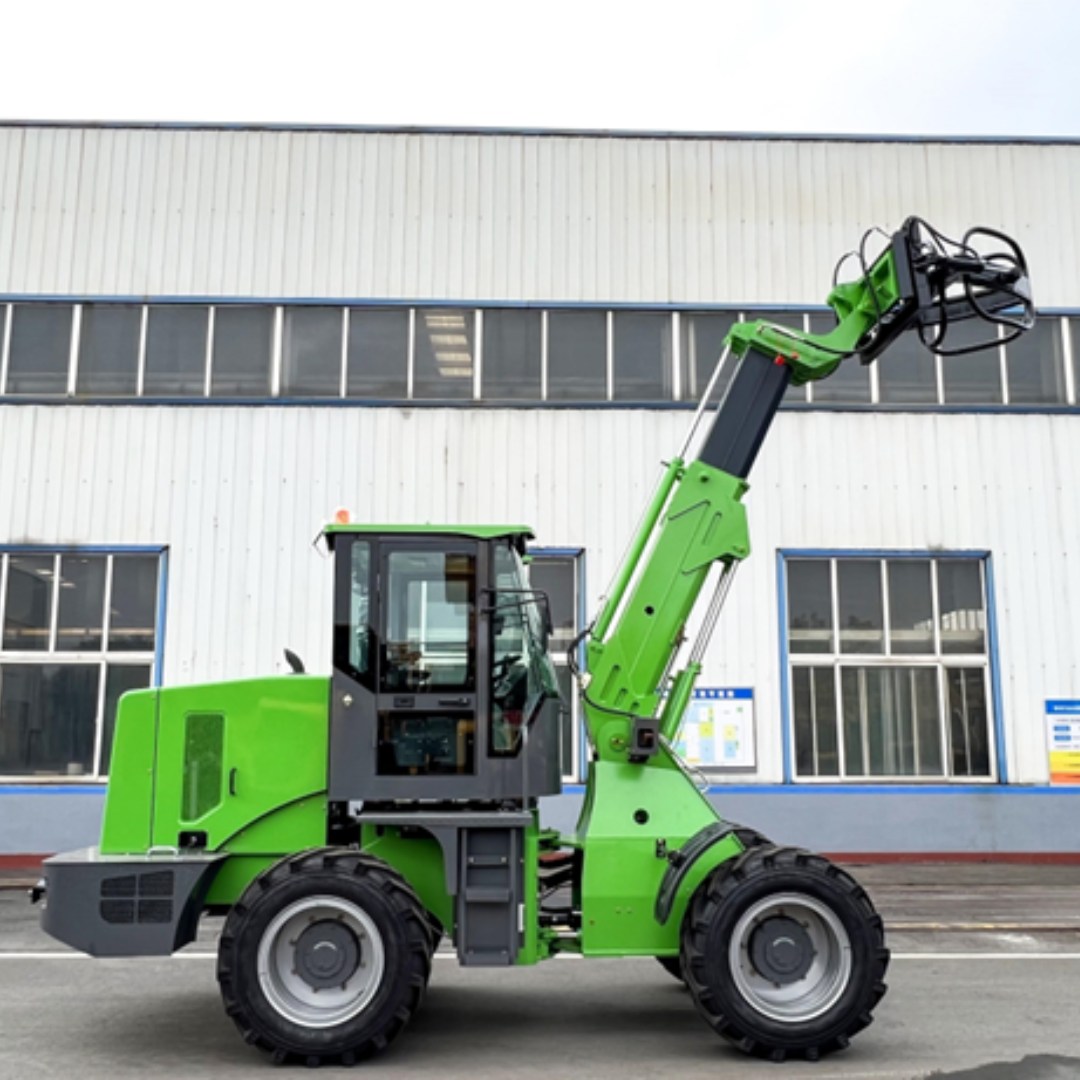

Telescopic boom wheel loader 2T diesel CUMMINS engine

  • $60,999.00

1.engine details

– Model CUMMINS EPA4 QSF2.8t4TC49 55kw
– Number of cylinders : 4
– Method of starting : Electric

2.Specification

– Lifting capacity(kg) 2000
– Lift height(mm) 4500
– Lift TIME(mm) 4.7S
– Machine weight (kg) 7000
– Bucket capacity 1.2 cubic bucket
– Axle-base(mm) 2325mm

3.Working system

– Maximum speed 40km/hr
– Drive Mean Four Wheel drive
– Maximum gradeability 30
– Torque converter model YJ280B
– Transmission system Automatic
– Turn radius 6000mm
– Brake system Air press oil disc brake
– System pressure 16hp
– Hydraulic slow 63ml/r

4.hydraulic flow 151L/min

– Hydraulic line Three hydraulic line
– Dimension 7000*2400*2800mm

5.Tire

– tire size 16/70/24

6.Standard Configuration and Feature

– Standard bucket Joystick control
Back camera Adjustable seat
– Cab heater
