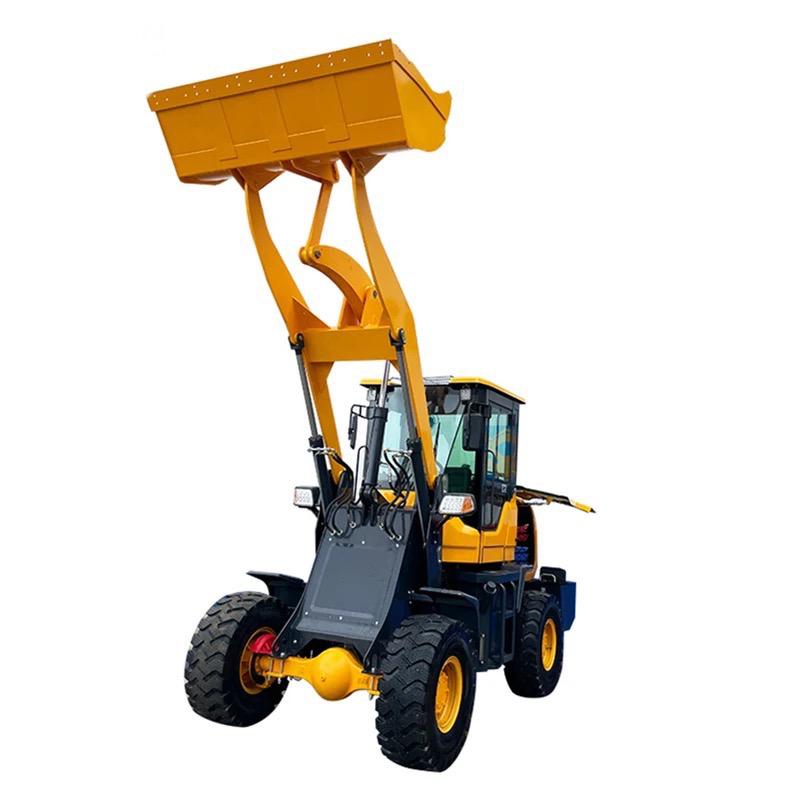

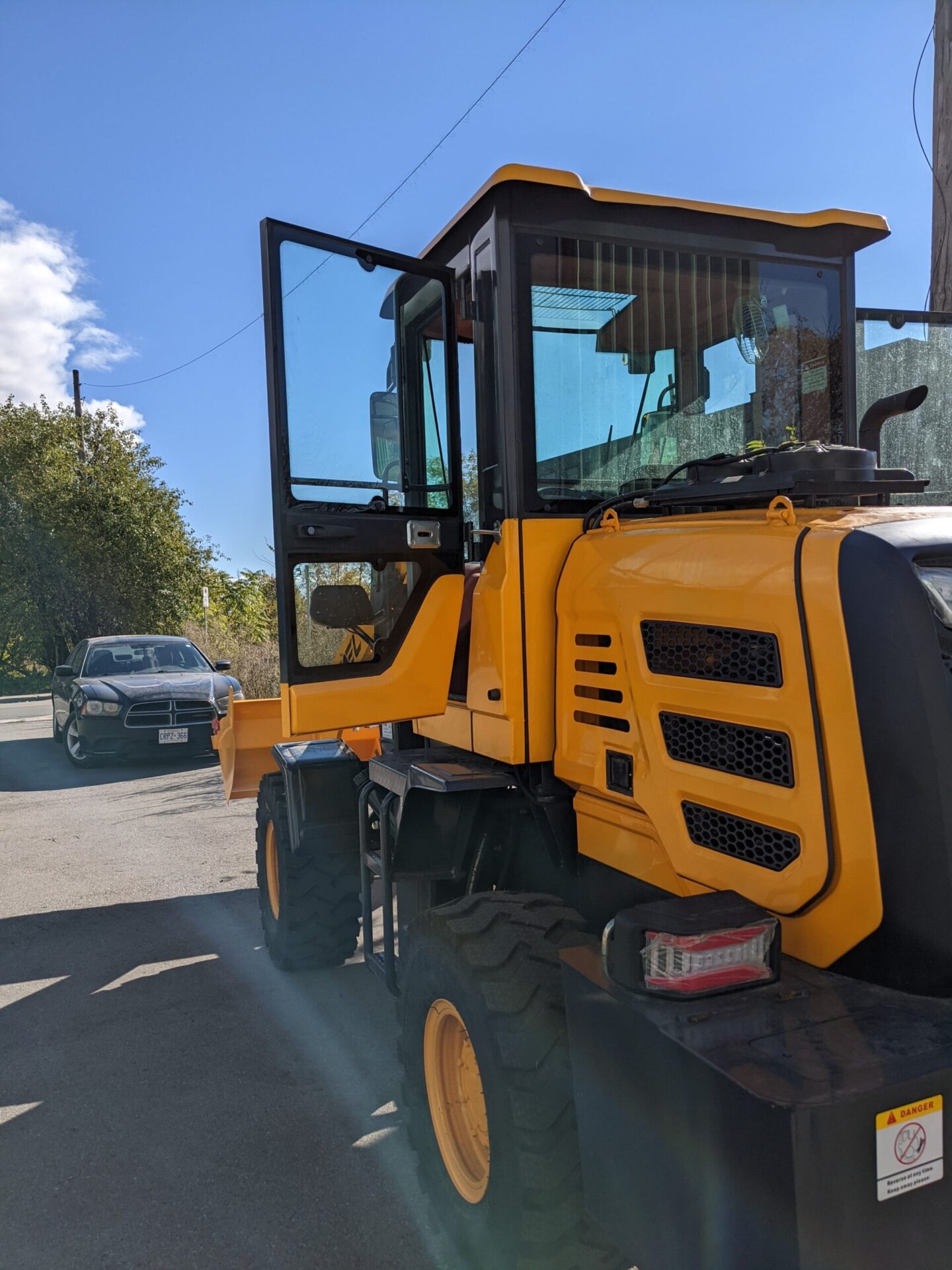

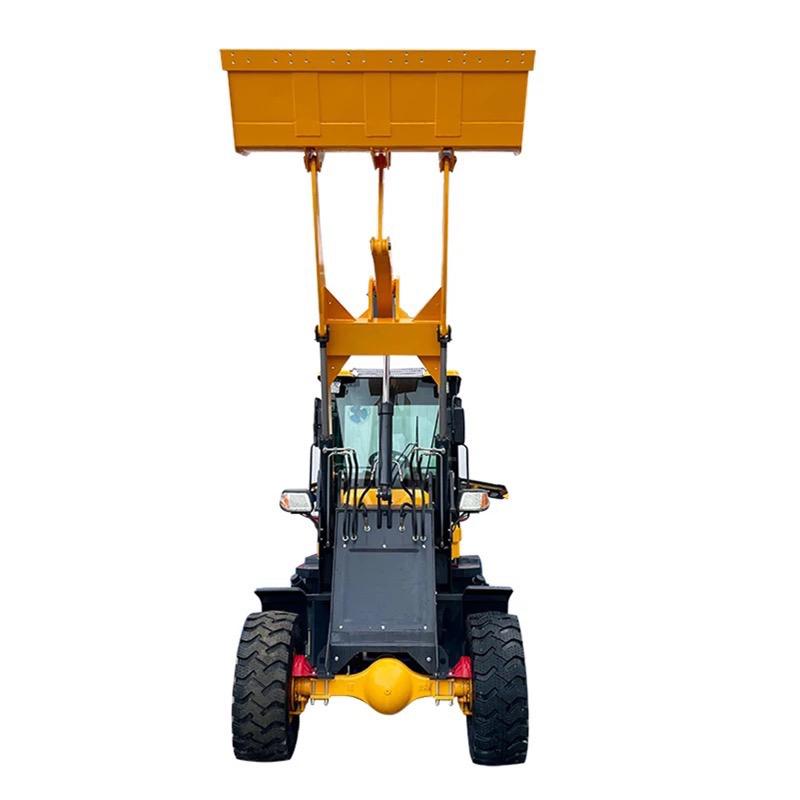

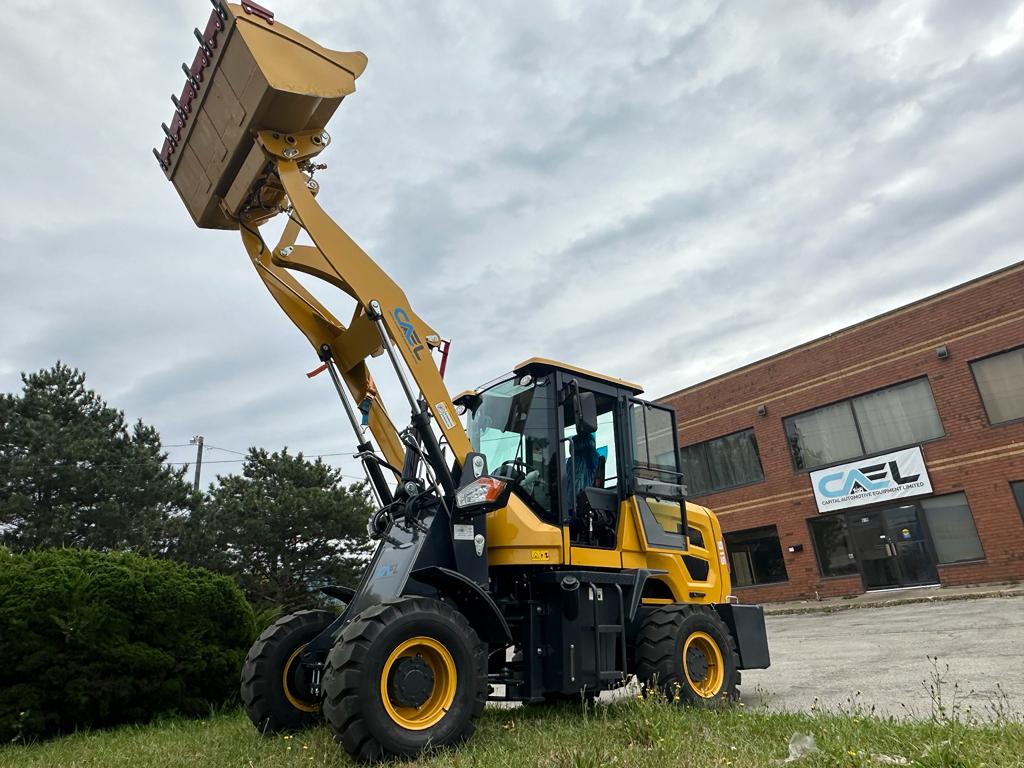

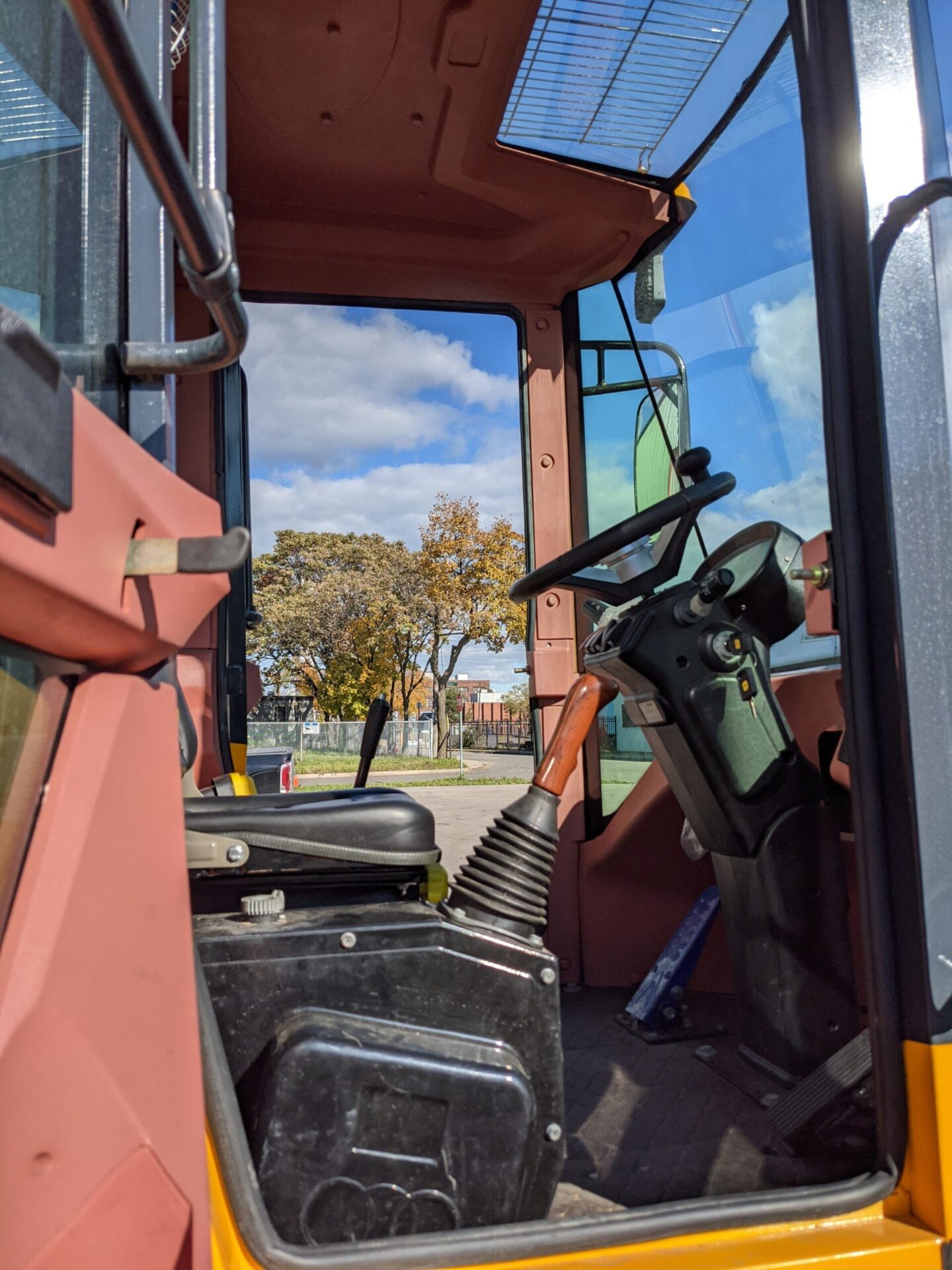

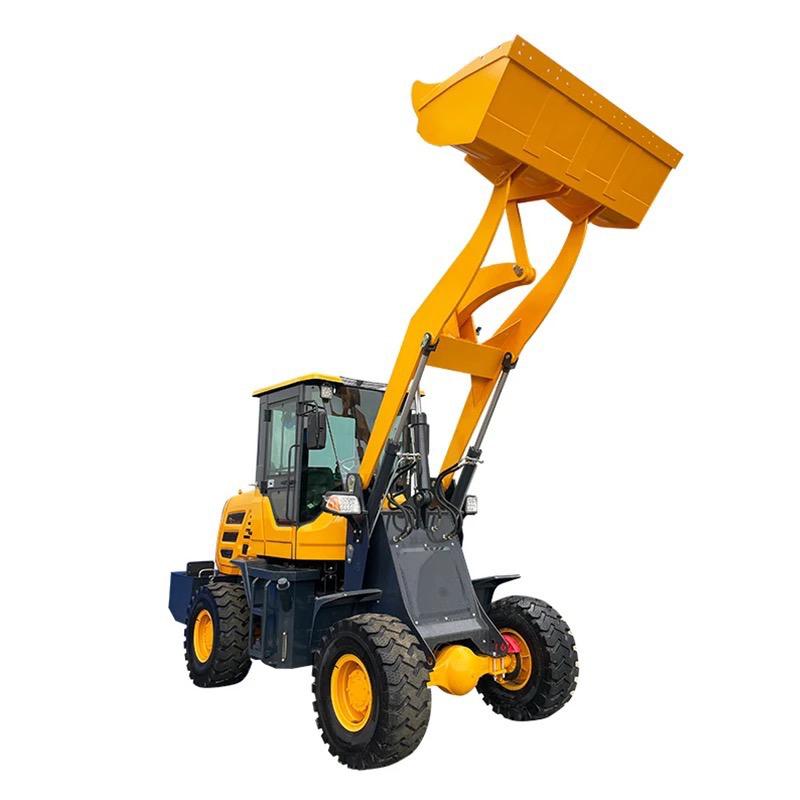

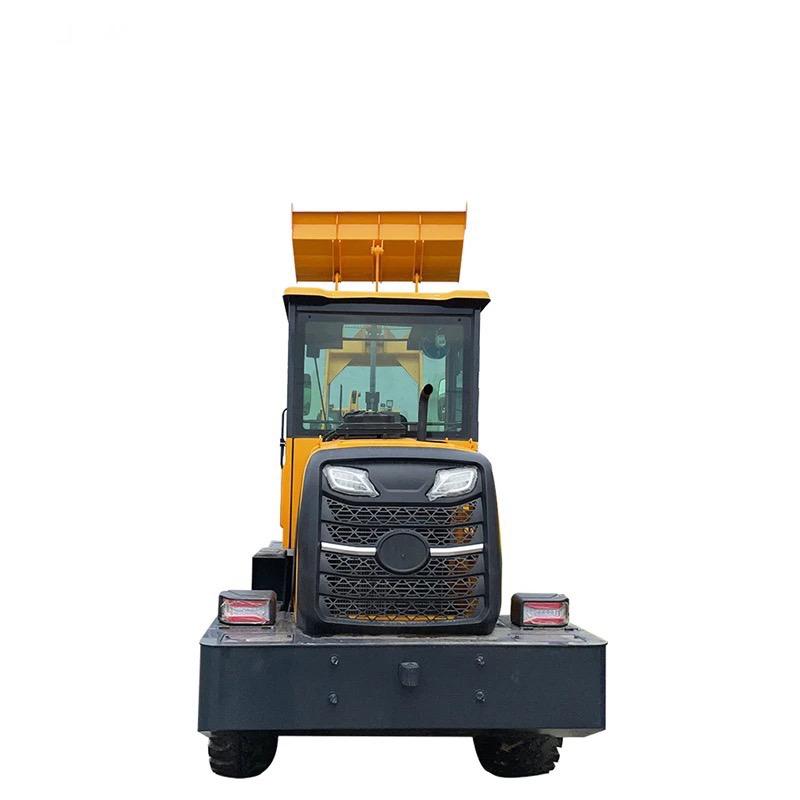

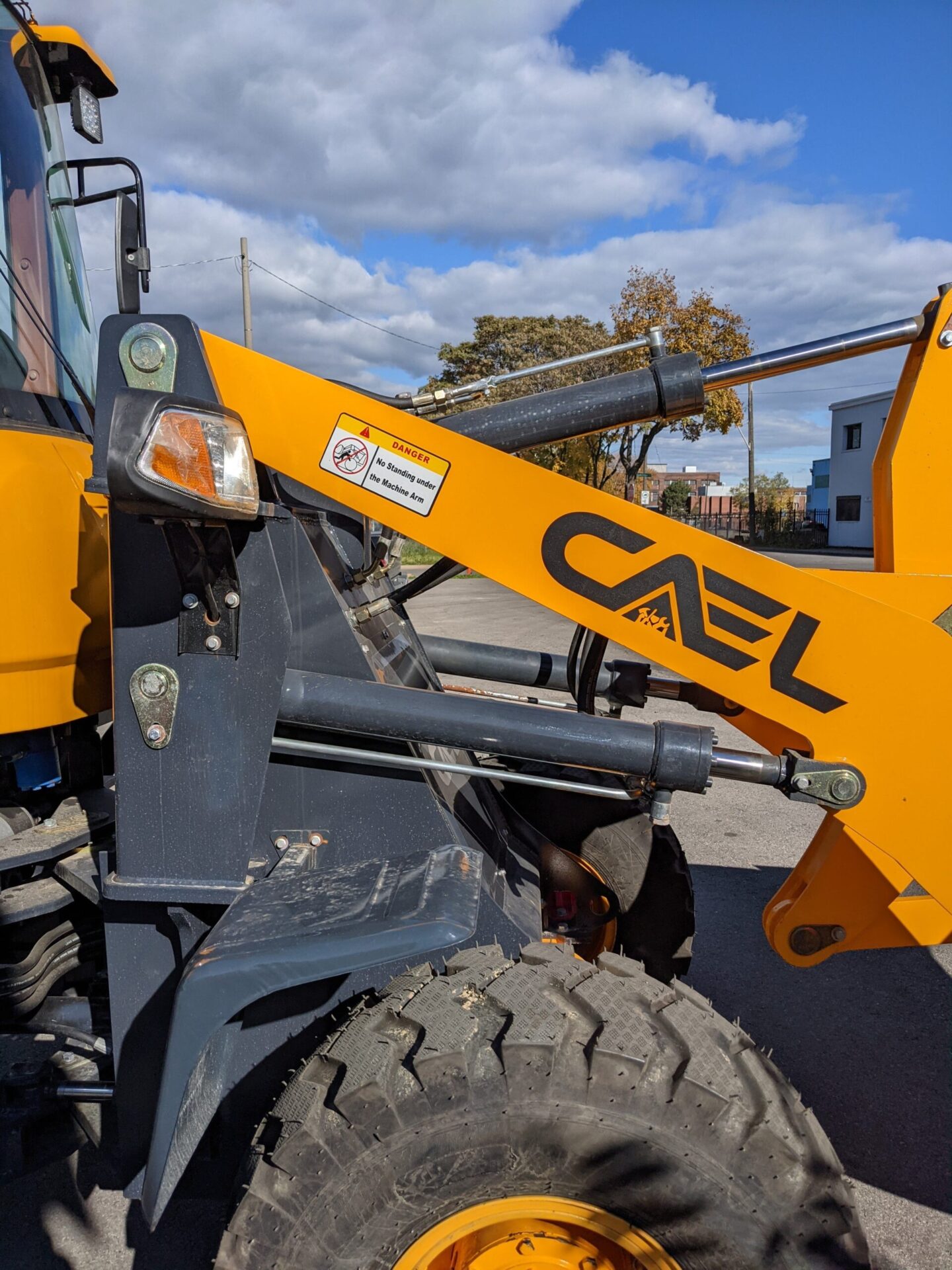

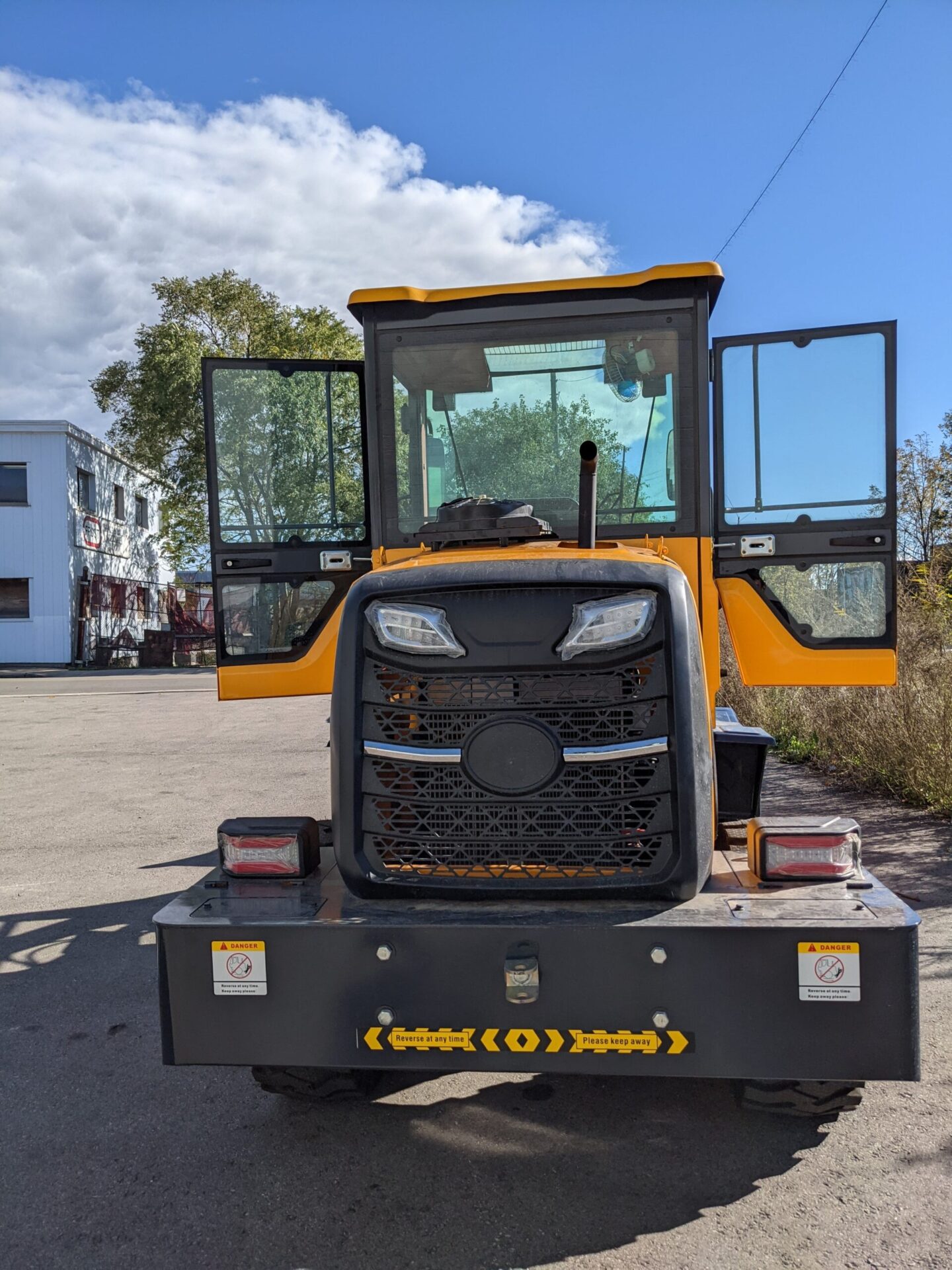

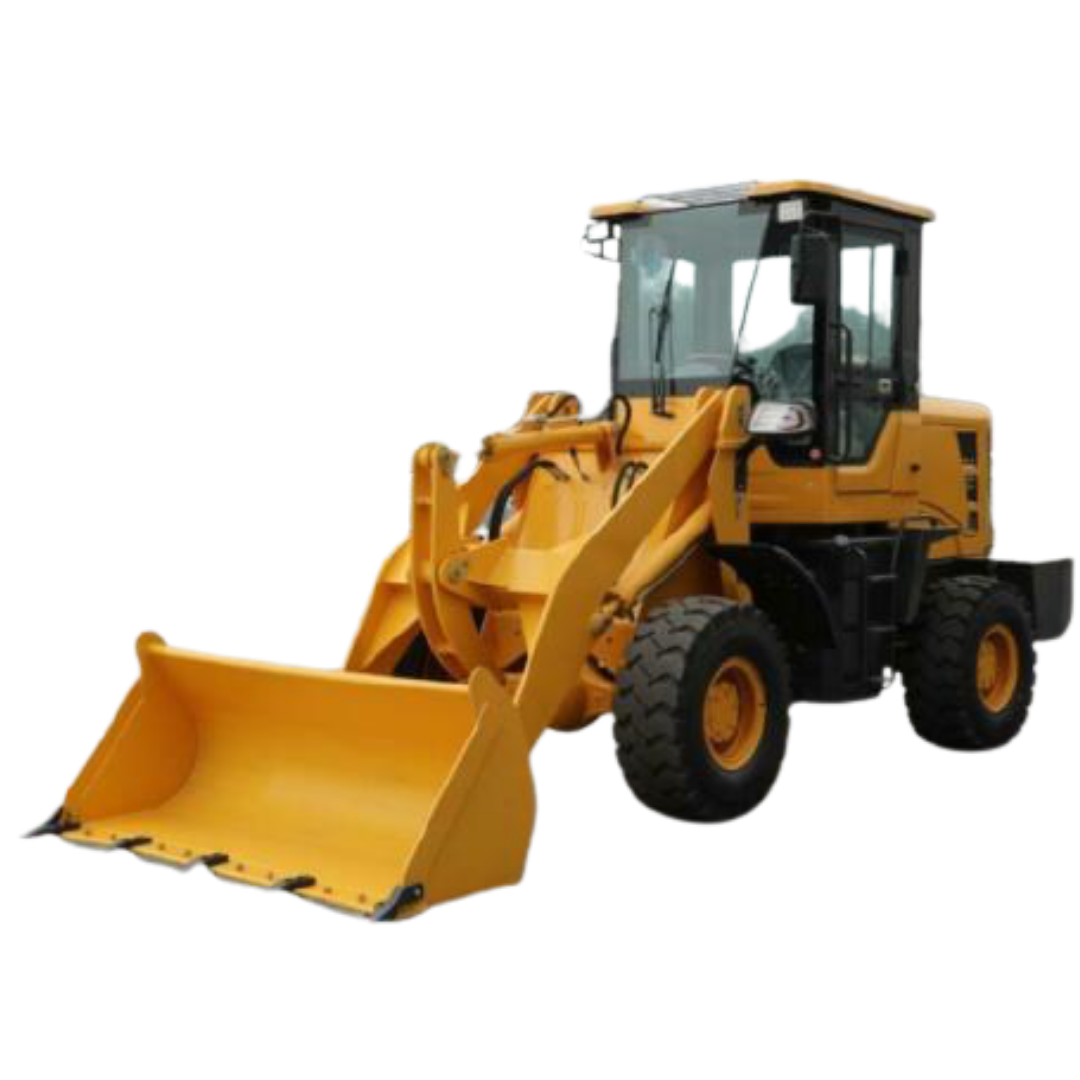

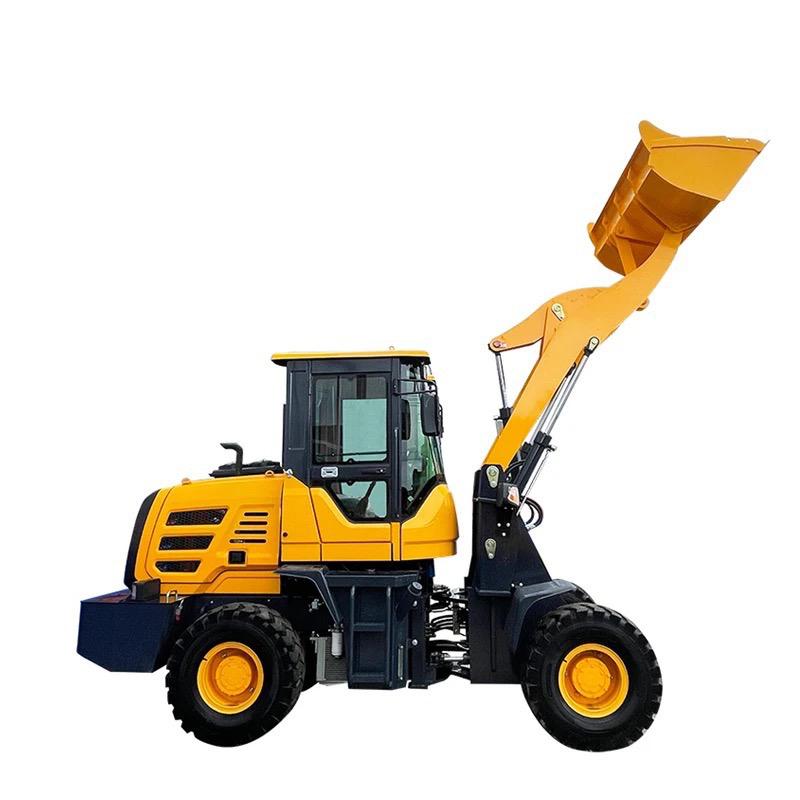

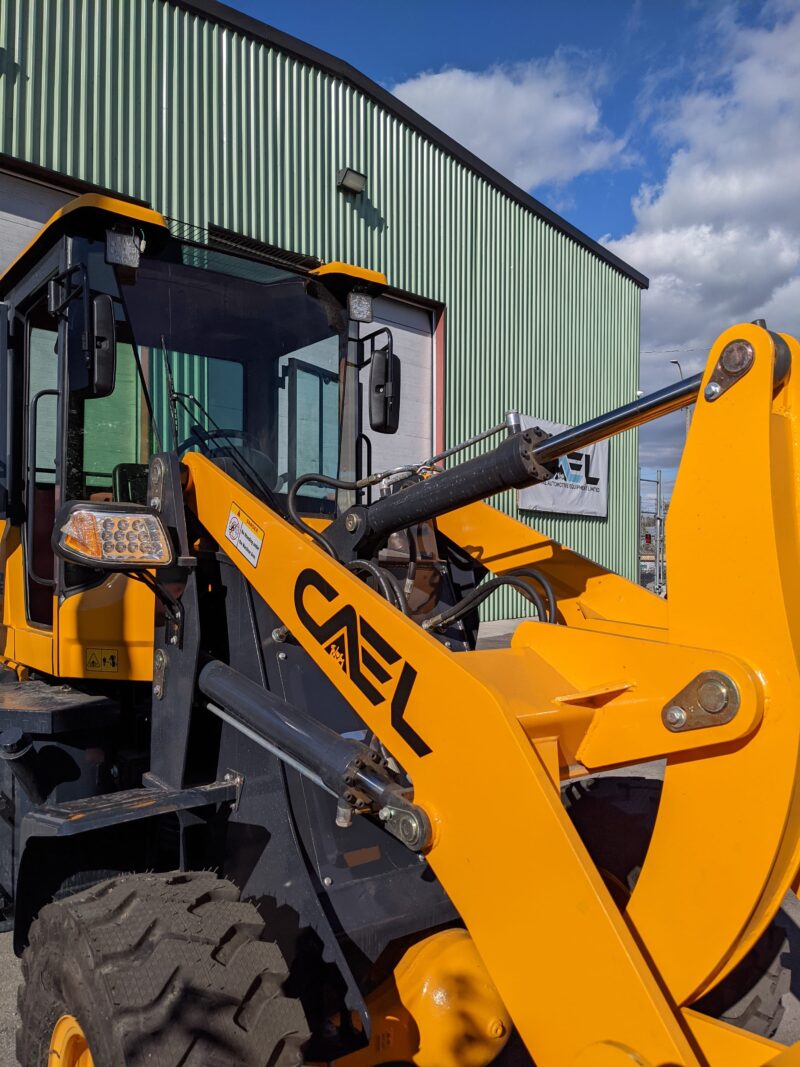

Mini Wheel Loader 4×4 (1.5T)

  • $34,999.00

Model : CAEL Wheel Loader-1.5T


Engine Performance

Brand Engine : Kohler 1903

Power (Kw): 41/ 55 HP

Emission: epa 4

Number of Cylinder: 4

Form: Inline water cooling


General Machine Performance

Dimensions : 215 x 69 x 108

Operating weight : 8487.80 LBS

Rated load: 1500 KGS/3300 LBS

Weight : 4200kg/9259 LBS

Wheel Base: 86.6″

Wheel Thread: 54.55″

Tire Size – 23.5-16

Bridge: Small wheel side Bridge

Minimum ground clearance: 270 mm/10.6 inches

Minimum turning radius: 2450mm/96.4inches

Climbing ability: 30%

Maximum speed: 30 km/h

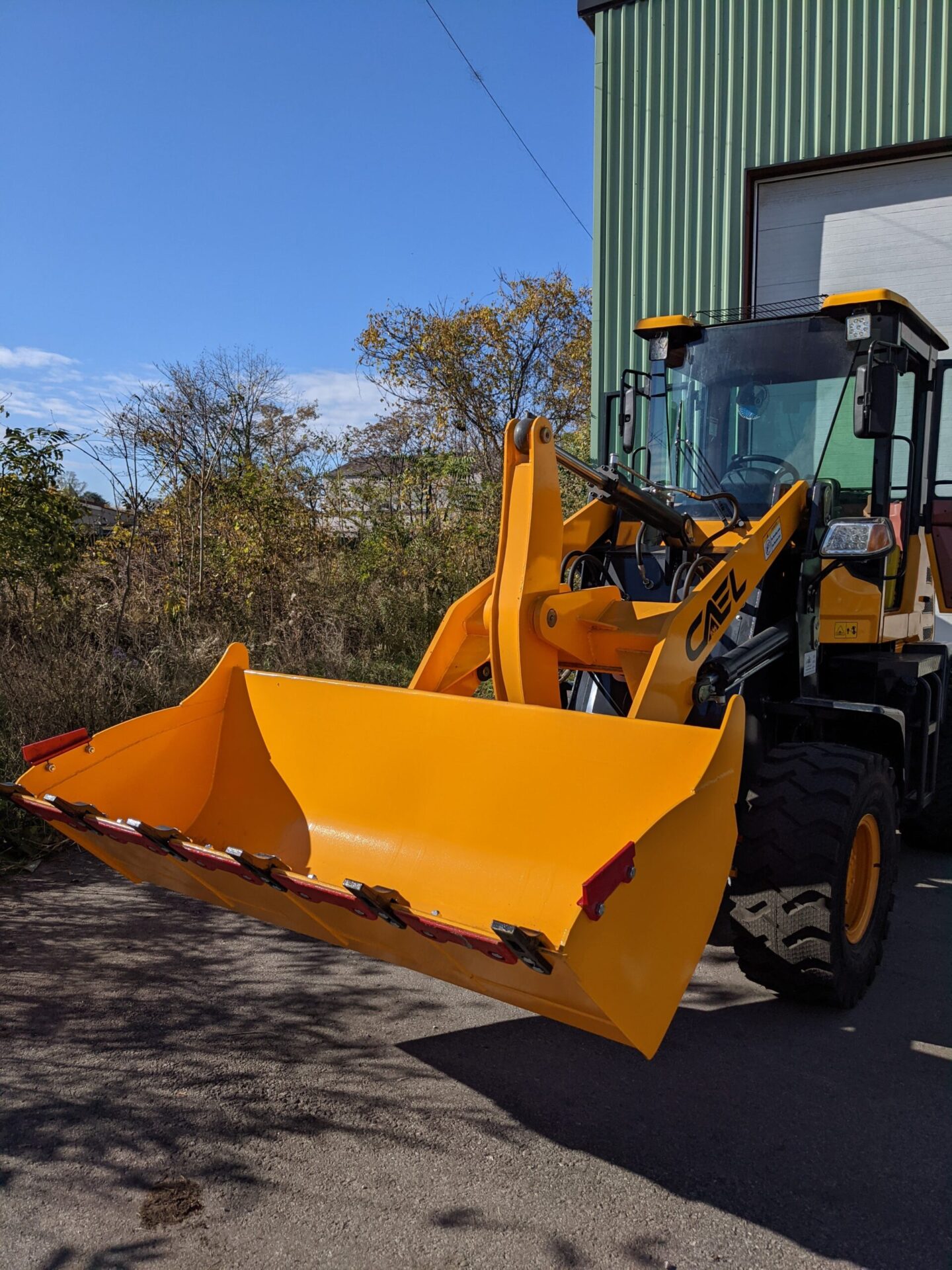

Bucket Performance:

Rated Load : 3307 lbs

Bucket Capacity Range: 0.6-0.8 cubic meter

Standard Bucket Capacity: 0.6 cubic meter

Bucket Width: 71″

Dumping Height: 126″

Dumping Reach: 27″

Max. Raising Height: 158″


Braking System

Service: Air brakes on 4 wheel

Parking brake: Hand Brake

Brake type: Steam brake


Transmission Performance

Transmission Type: Automatic

Axle: AWD, small hub reduction

Gear Shift: Double H/L, F/R

Control Lever: 1

Oil cylinder: Standard

Uninstall time: 1.1 s

Gear position: Front and rear dual high and low speeds

Driving type: Articulated body hydraulic torque converter four-wheel drive

Working pump: Gear pump

Steering type: Articulated body steering


Control Type: Joystick

Lifting Time: 5s

Lowering Time: 4s


Packaging size: LxWxH 217 x 72 x 110

Packaging weight: 8487.80 LBS
