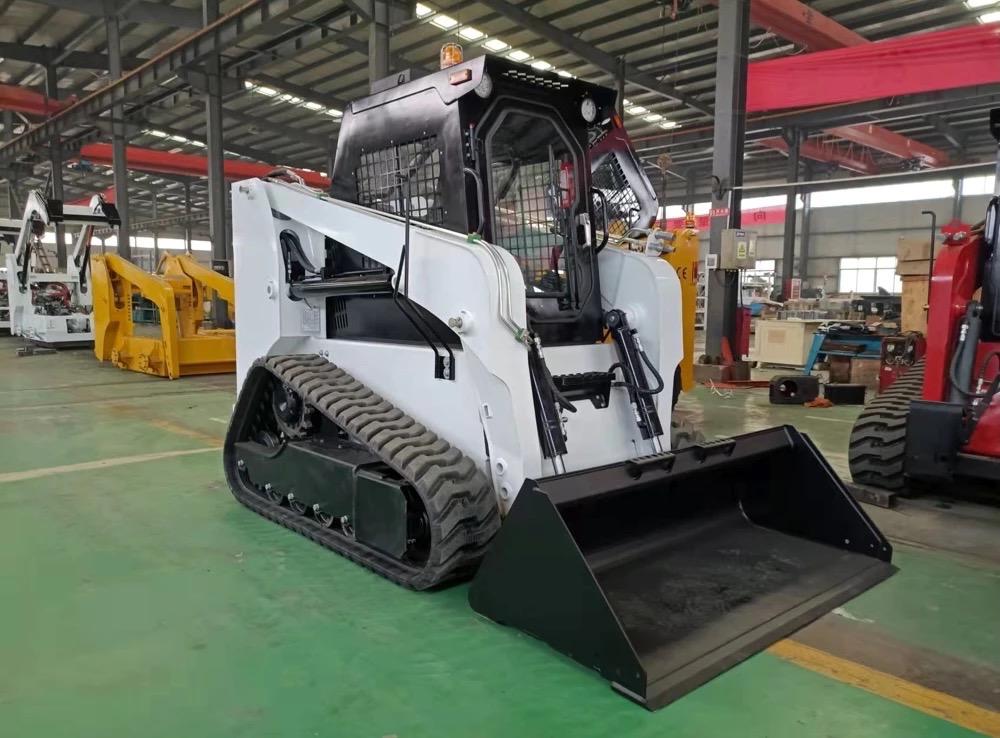

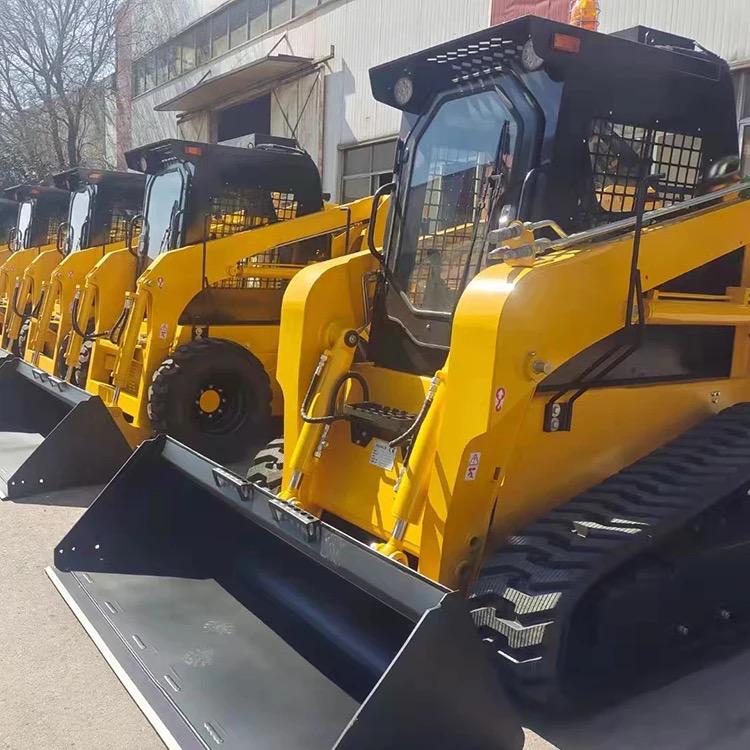

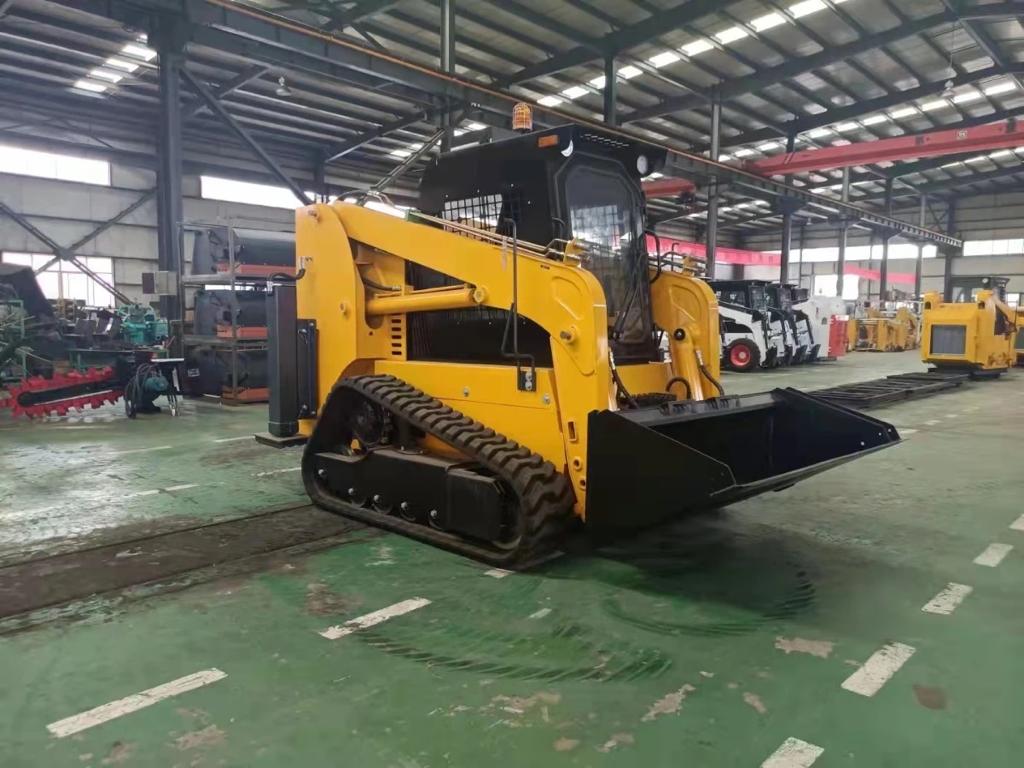

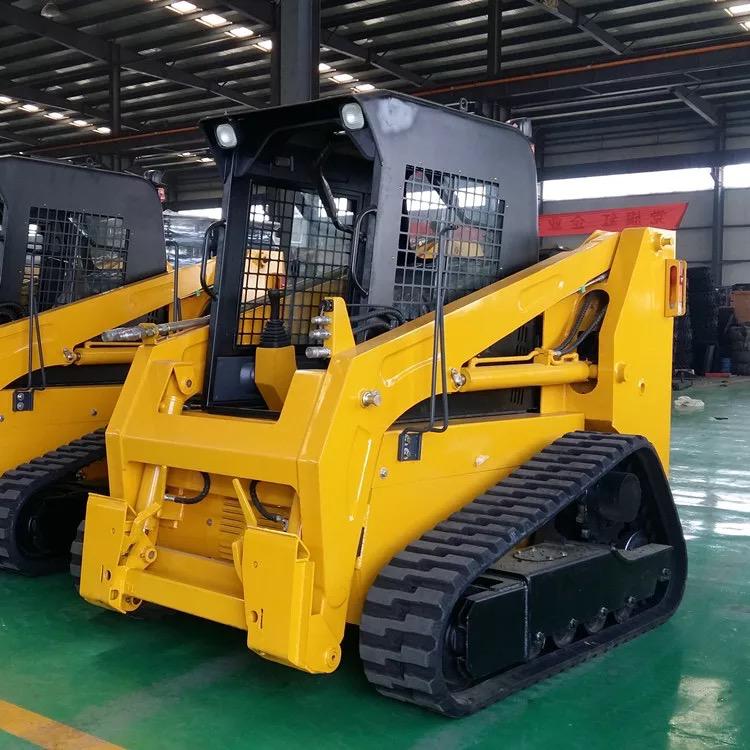

Skid Steer CAEL-65 with Tracks

  • $58,999.00
Category:

*** Included ***

-Korean LS / Cummins (54KW/55KW,EPA)

-Hydraulic Pilot Operated

-Cabin

*** Specification***

– Rated Operating Capacity(Kg) : 1000 / 2204 LBS
– Tipping load(Kg): 2000 / 4400 LBS
– Bucket Capacity(m3) : 0.5
– Lifting Force(Kg) : 2730 / 6000 LBS
– Hydraulic Pump Flow(L/min) : 75
– Engine power(hp) : 75
– Weight(Kg) : 3800 / 8300 LBS
– Max. Travel Speed(km/h) : 8/16
– Grade ability(° ) : 20
– Tire(Track) : 320*84
– Fuel/hyd. Oil capacity(L) : 80/80

-Track Weight: 3800KG

– Height at Maximum Extension : 3480mm / 137″
– Hinge Pin Height : 2900mm / 114″
– Total Height : 2150mm / 84.6″
– Length with Bucket : 3500mm / 137.7″
– Length without Bucket : 2750mm / 108″
– Width with Bucket: 1782mm / 70″
– Track Width : 1462mm / 57.5″
– Wheelbase : 1500mm / 59″
– Ground Clearance : 200mm / 7.8″
– Dumping Angle ° : 40
– Dumping Height : 2230mm / 87.7″
– Maximum Reach : 715mm / 28″

Customization Options (Additional Charges):

  • Upgrade to Large flow system 2000$
  • Low temperature cold start : 850$
  • Air conditioning 1500$
  • Heat 700$
  • Quick Attach (inquire for pricing)

**2 years warranty on motor **

**1 year Warranty on all parts**
