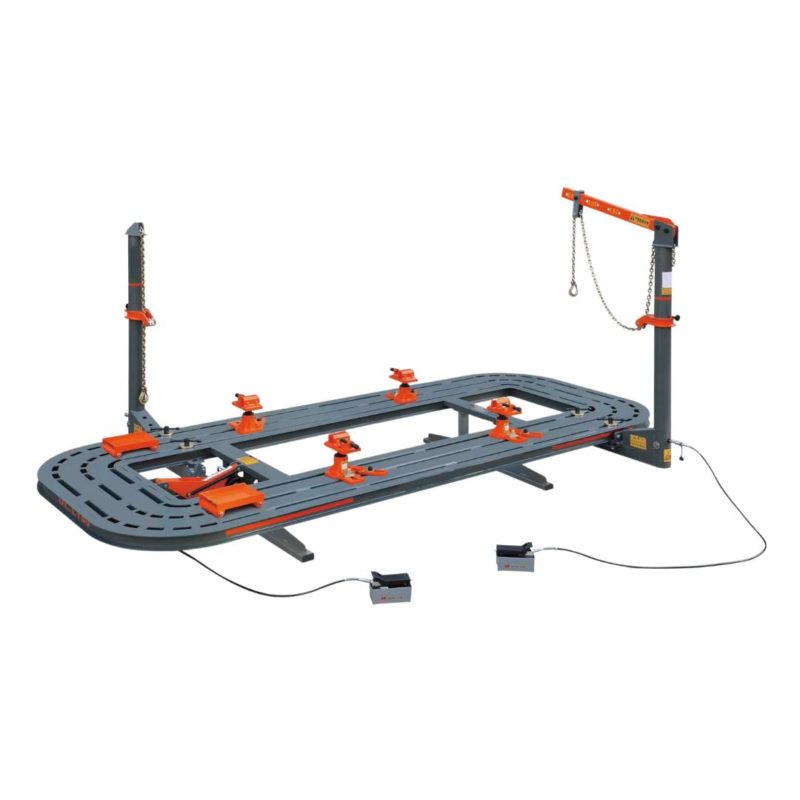

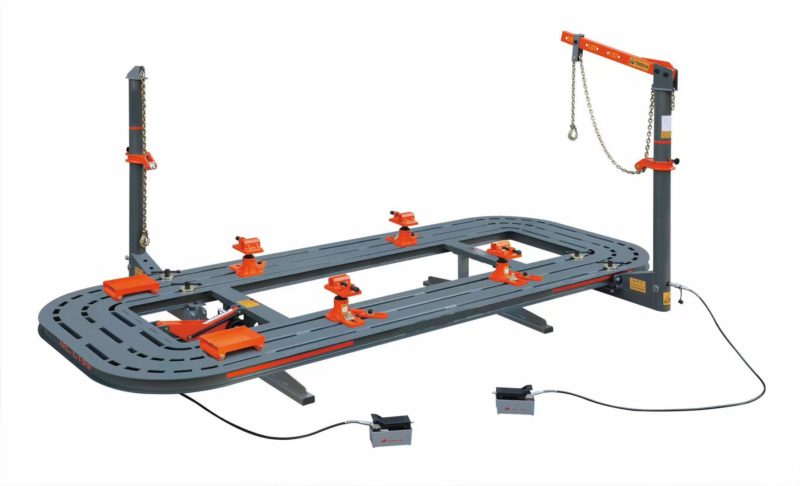

CAEL Frame Machine Single Tilt System with Two post (FRM23-01)

  • $13,599.00

Single Tilt System with Two Post | Beams platform with steel platform corners

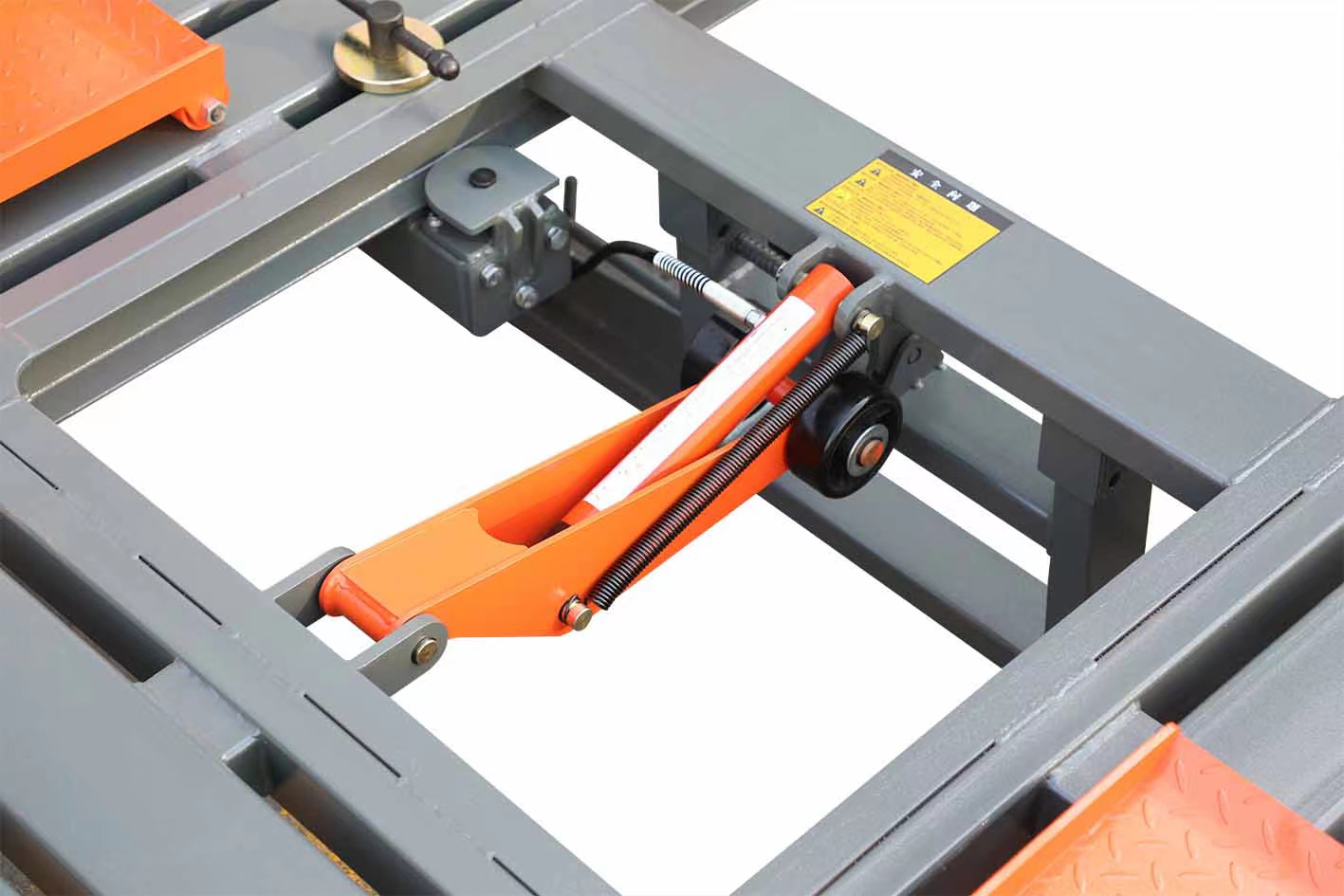

1. Tiltable 14# I-beam platform allows easy drive on and off of any vehicle.

2. Adopting manganese steel welding, fixed pulling tower conveniently, stretching at arbitrary angles, reducing workload, improving efficiency.

3. Combination type of pulling tower, strong and effective, all-round repair body and car roof and so on;

4. Adopting import highly quality hydraulic pump; Powerful, low failure rate (Electric box optional)

5. Hydraulic system has large pulling capacity , long lifespan and low malfunction

6. With high strength pulling accessories, it can recover any car distortion





Platform Length: 205″

Platform Width: 82.67″

Platform Height: 21.65″


Hydraulic Pressure: 70Mpa (10000 psi)

Post Max. Tension:10T

Post Working Range: 360 Degree

Pneumatic Pressure Range: 0.8 Mpa

Max. Lifting Power: 7716.20LBS / 3500KG

Total Weight: 4850LBS  / 2200KG


Standard Tools List


Short Chain1Quick Draw Bar1
Box Clamp1Pecial Wrench for Clamp1
Small Clamp1Handy Link1
Right Angle Clamp1Double Claw Hook1
Over loading Pulling Clamp1Boltless Strut Tower Puller1
Grab Hook1Cable Sling1
C Type Clamp1Nylon Sling1
Crescent Wrench1Safety Rope2
Mini Clamp1Down Pulling Assembly1
Chain Connector1Trolly Tool1
Deep Hook Set1Drive Ramp2
