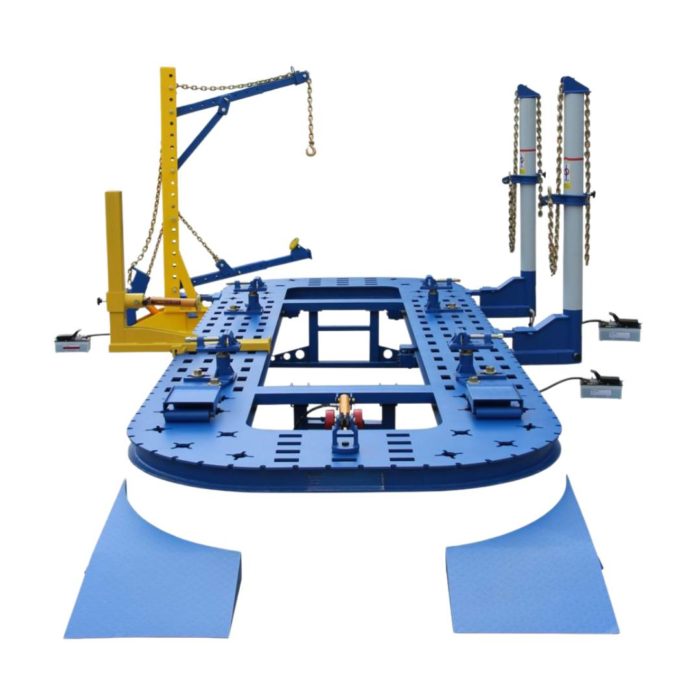

CAEL Framing Machine Parallel Lift System (FRM23-04)

  • $16,899.00

CAEL Framing Machine


1. Tiltable platform allows easy drive on and off any vehicle;

2. Thickness manganese steel platform, the whole platform is made up of large CNC cutting cutting equipment processing, highly flatness, strong strength, no the blind area of working stretch;

3. Combination type of 5 pcs pulling tower, strong and effective, all-around repair body and car roof and so on;

4. Adopting import highly quality hydraulic pump, powerful, low failure rate (electric box optional)

5. Hydraulic system has large pulling capacity, long lifespan and low malfunction;

6. With high strength pulling accessories, it can recover any car distortion




Platform Length: 220/236″

Platform Width: 86″

Platform Height: 11-40″


Hydraulic Pressure: 70Mpa (10000 psi)

Post Max. Tension:10T

Post Working Range: 360 Degree

Pneumatic Pressure Range: 0.8 Mpa

Max. Lifting Power: 7716 LBS/ 3500KG

Total weight: 7054 LBS/ 3300KG

Rated Voltage: 220/380V

Package: Wood Box and Cardboard, about7CBM


Standard Tools List


Short Chain1Quick Draw Bar1
Box Clamp1Pecial Wrench for Clamp1
Small Clamp1Handy Link1
Right Angle Clamp1Double Claw Hook1
Over Loading Pulling Clamp1Boltless Strut Tower Puller1
Grab Hook1Nylon Sling & Cable Sling1 each
C Type Clamp1Safety Rope2
Mini Clamp & Crescent Wrench1 eachDown Pulling Assembly1
Chain Connector1Trolly tool1
Deep Hook Set1Drive Ramp1
