CAEL Framing Machine (FRM23-03)

  • $15,499.00

CAEL Framing Machine


1. Tiltable platform allows easy drive on and off any vechicle;

2. Thickness manganese steel platform, the whole platform is made up of large CNC cutting cutting equipment processing, highly flatness, strong strength, no the blind area of working stretch;

3. Combination type of 5 pcs pulling tower, strong and effective, all-around repair body and car roof and so on;

4. Adopting import highly quality hydraulic pump, powerful, low failure rate (electric box optional)

5. Hydraulic system has large pulling capacity, long lifespan and low malfunction;

6. With high strength pulling accessories, it can recover any car distortion




Platform Length: 135″

Platform Width: 33.46″

Platform Height: 4-51″


Hydraulic Pressure: 70Mpa (10000 psi)

Post Max. Tension:10T

Post Working Range: 360 Degree

Pneumatic Pressure Range: 0.8 Mpa

Max. Lifting Power: 11023LBS / 5000KG

Rated Voltage: 220/380V

Package: Wood Box and Cardboard, about 6CBM

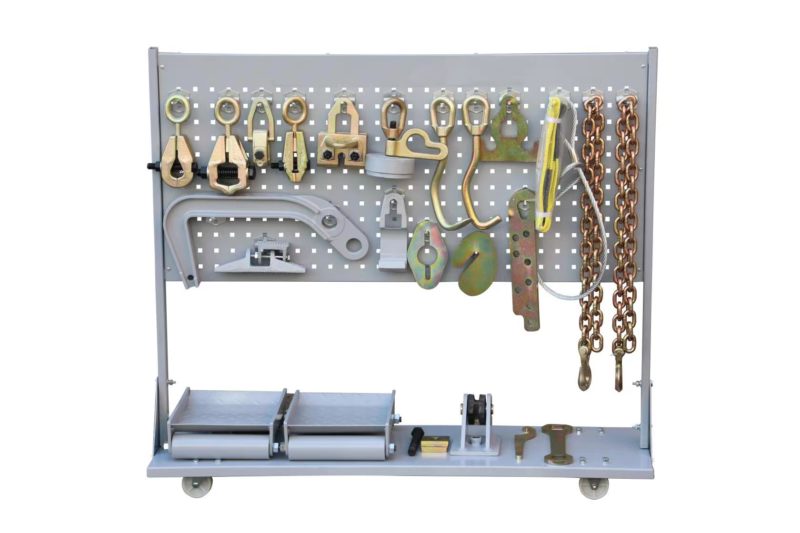

Standard Tools List


Main Clamp2Short Chain1
Main Clamp Base2Chain Protection Rope1
Main Clamp Spanner1Square Universal Clamp1
Oil Hydraulic Cylinder1Big Wide Clamp1
Oil Pipe1Boltless Strut Tower Puller1
Air Pump1Small Clamp and Box Clamp1 each
Universal Wheel8Steel Hook1
Drag Down Device1Double Chain Harrow1
Big and Small Hook1 eachNylon Belt1
3.5m chain with Hook1Steel wire rope1
