Basic Performance Parameters
- Machine Operating Weight (kg): 2645
- Bucket Capacity (m³): 0.1
- Travel Speed Low/High (Km/h): 0-1.6
- Gradability (%): 30
- Ground Pressure (Kpa): 36.4
- Maximum Digging Force (kN): 22.5
- Maximum Digging Radius (mm): 4576
- Maximum Digging Depth (mm): 2310
- Maximum Digging Height (mm): 3700
- Maximum Unloading Height (mm): 2574
- Maximum Deflection Angle (°): 122°
- Theoretical Fuel Consumption (L/h): –
- Fuel Tank Capacity (L): 60
- Hydraulic Tank Capacity (L): 52

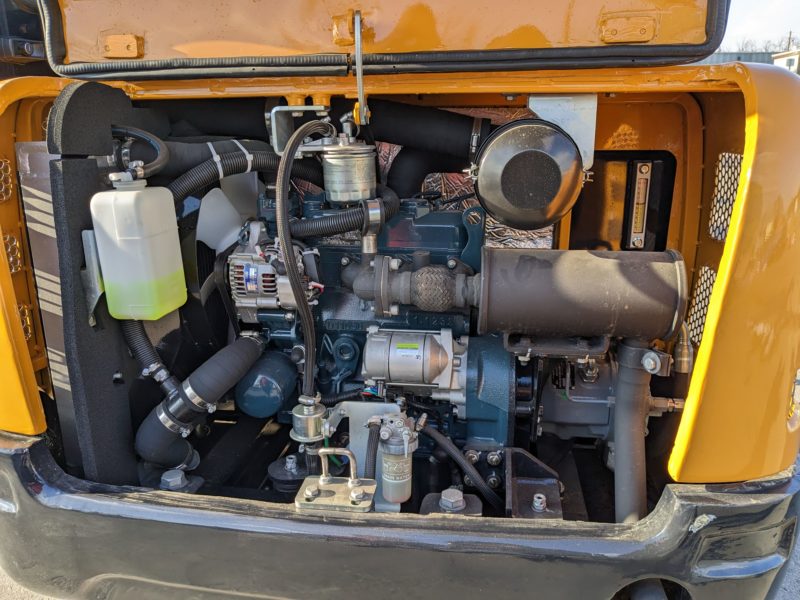

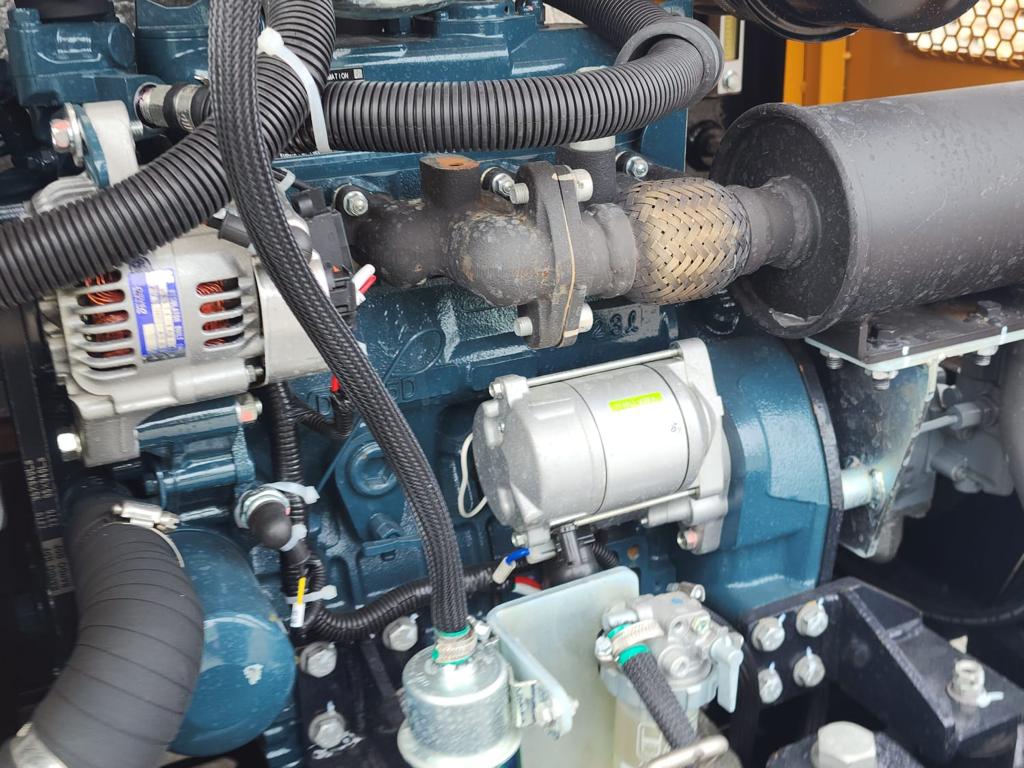

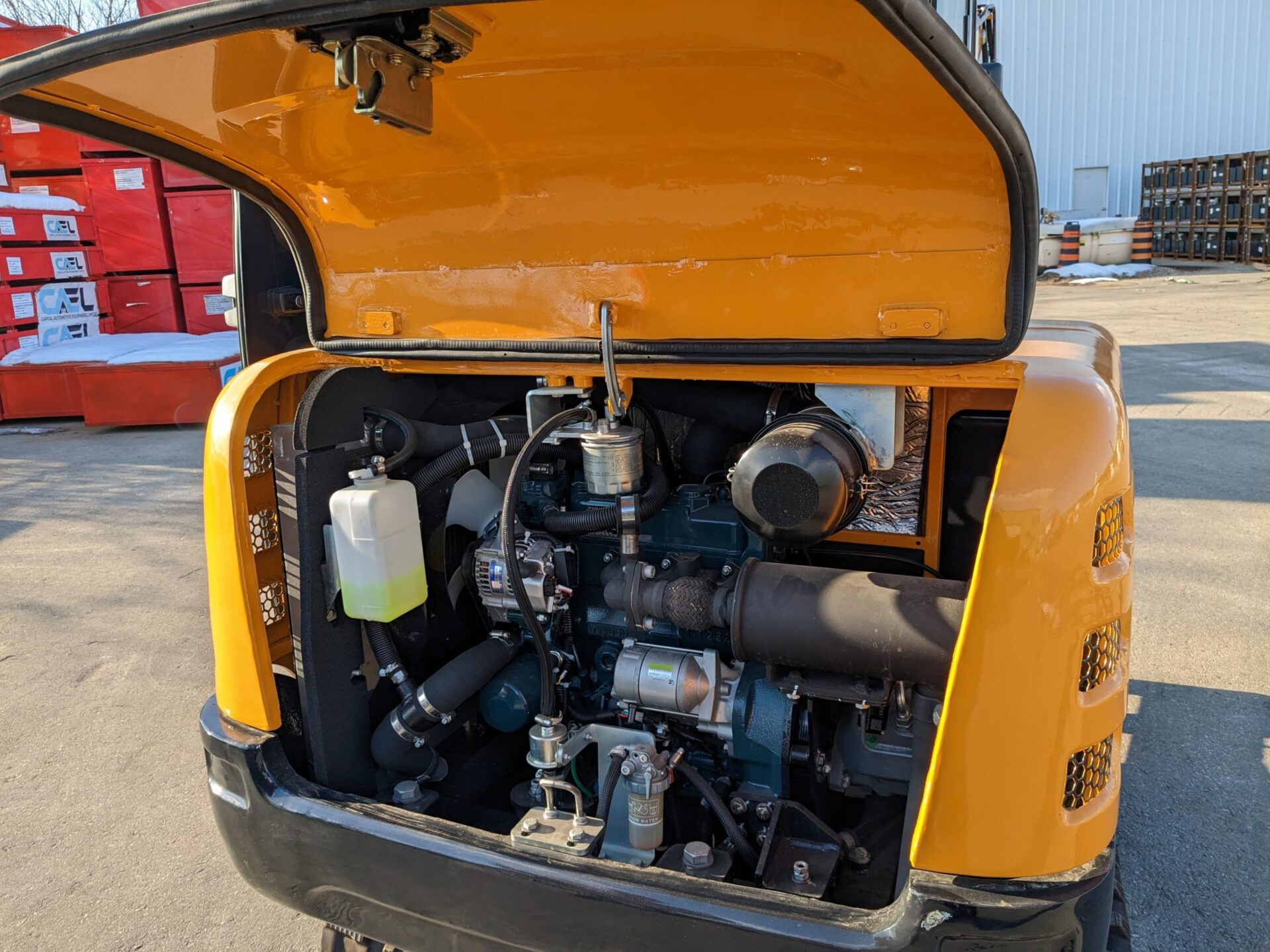

Engine
- Engine Brand: Kubota
- Engine Model: Kubota D1703
- Maximum Horsepower (ps): 25
- Maximum Power (Kw): 18.2
- Maximum Speed (rpm): 2200
- Displacement: 1.6
- Number of Cylinders: 3
- Cooling Method: Water Cooling
- Engine Oil Change Amount (L): 5.5
- Fuel Form: Diesel Fuel
- Fuel Grade: 0/-10
Dimensions
- Transport Length (mm): 3520
- Transport Width (mm): 1450
- Transport Height (mm): 2352
- Counterweight Ground Clearance (mm): 530

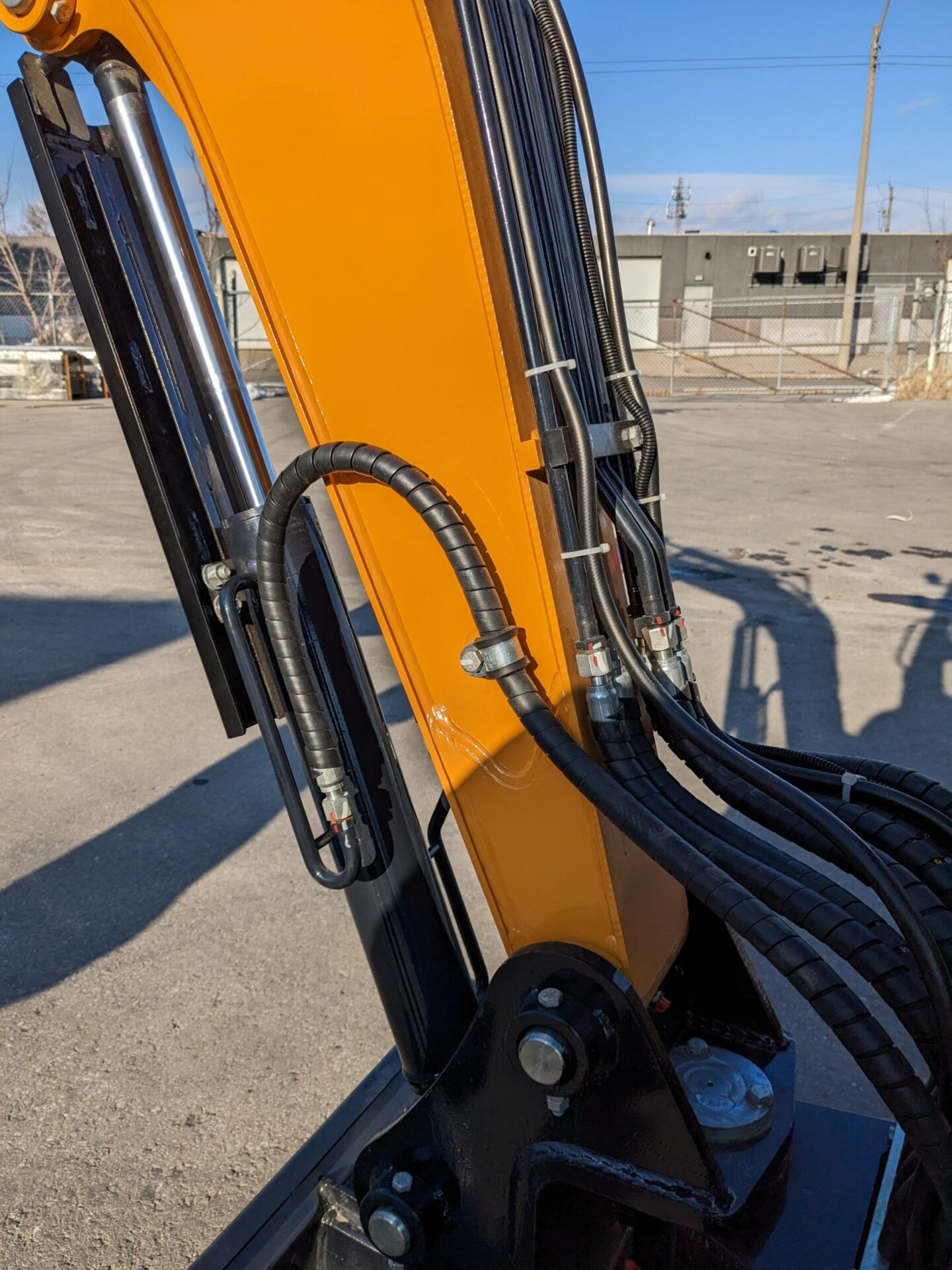

- Boom Length (mm): 2012
- Arm Length (mm): 1110
- Bucket Width (mm): 500

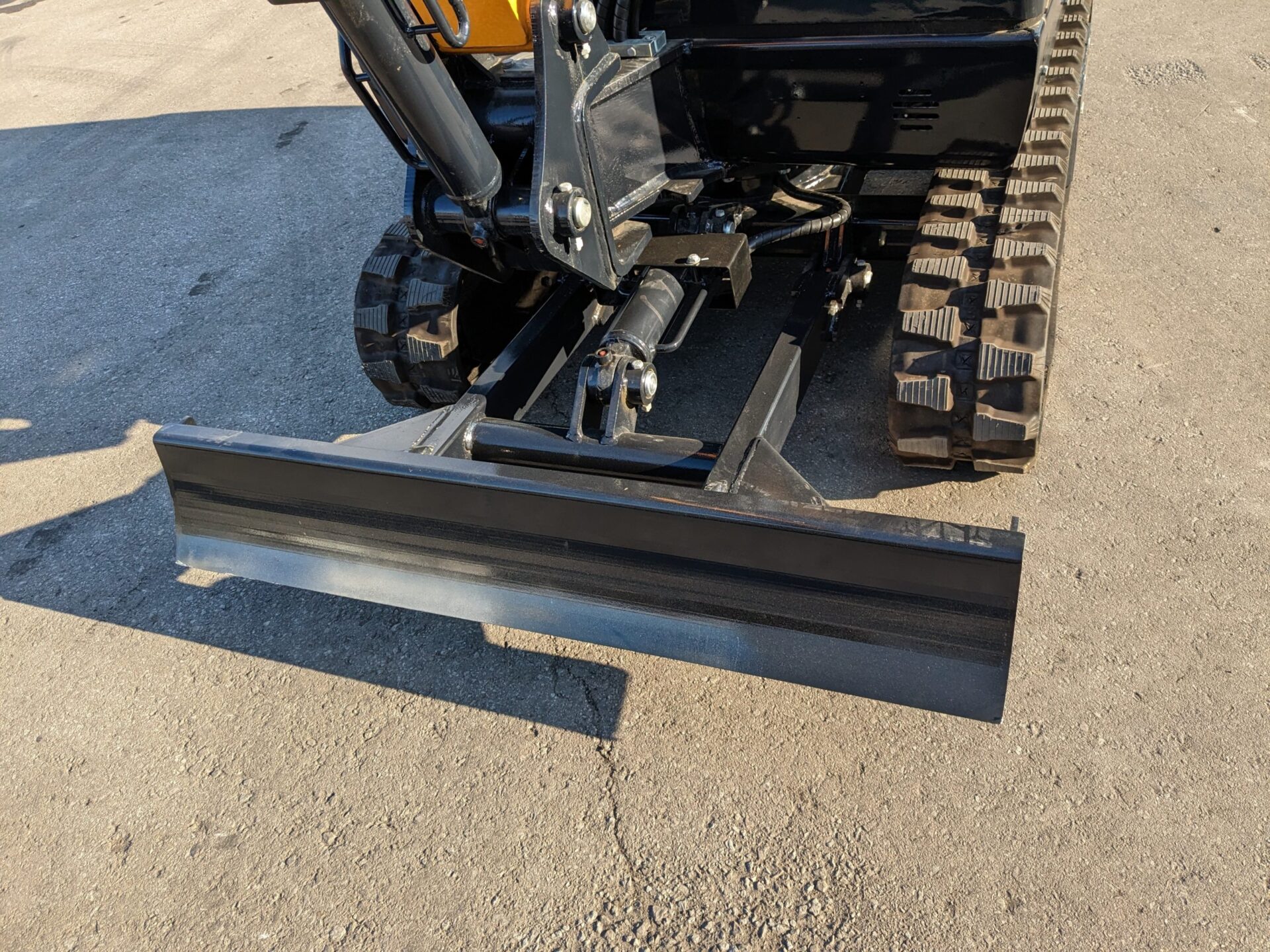

- Bulldozer Blade Width (mm): 1450

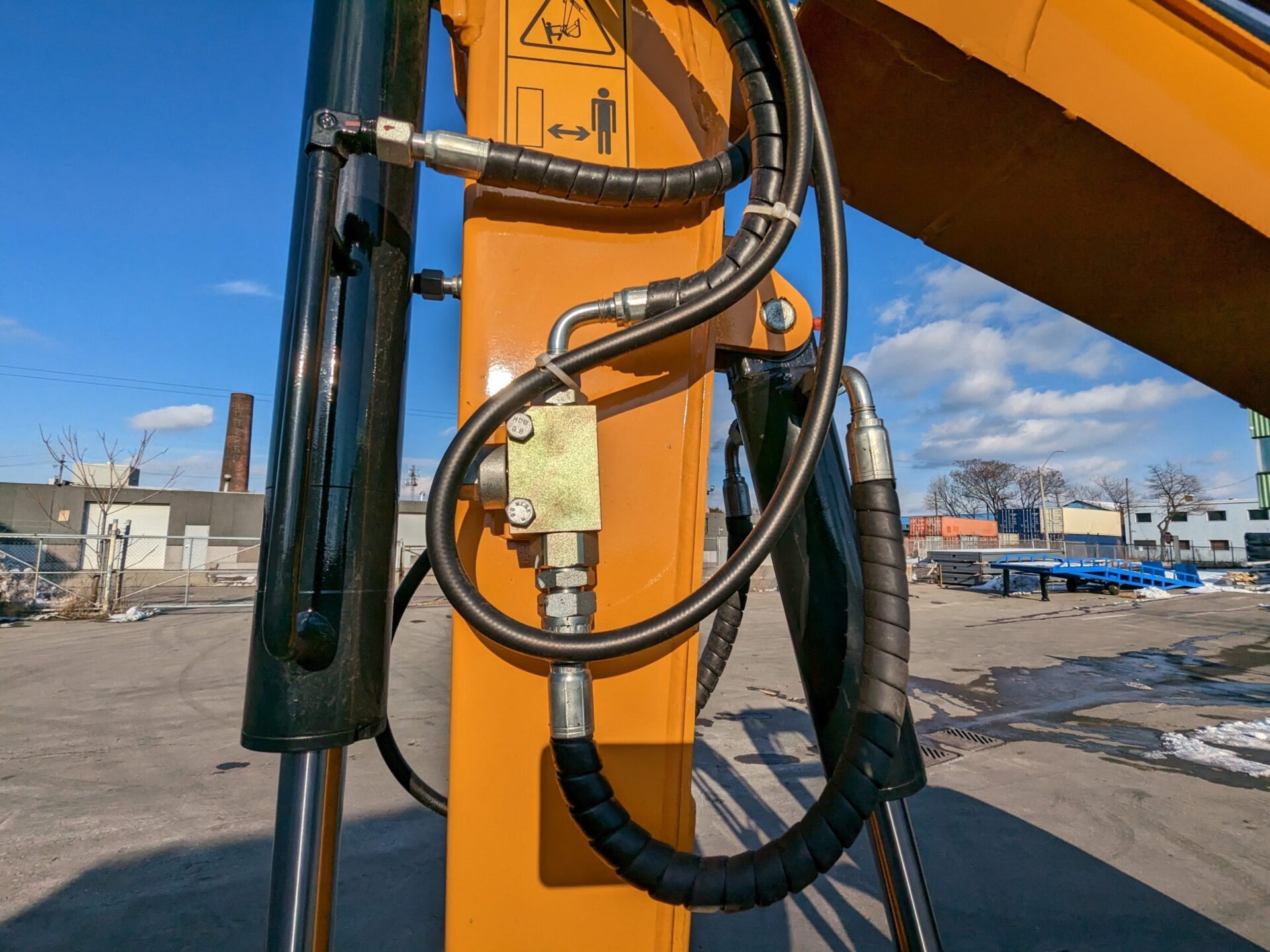

Hydraulic System
- Main Pump Type/Model: Variable Piston Pump/28
- Main Pump Brand: Taifeng
- Main Pump Maximum Flow (L/min): 62
- Multi-way Valve: 8-way Hydraulic Control Valve
- Multi-way Valve Brand: Taifeng Hydraulics
- Rated Set Pressure (Mpa): 18
- Maximum Set Pressure (Mpa): 20
- Travel Hydraulic Motor Type: BWV1000WCD
- Warranty :
2 Year Engine Warranty from any certified Kubota dealership.
1 Year warranty on all parts (Remember, all parts are available even after warranty)
