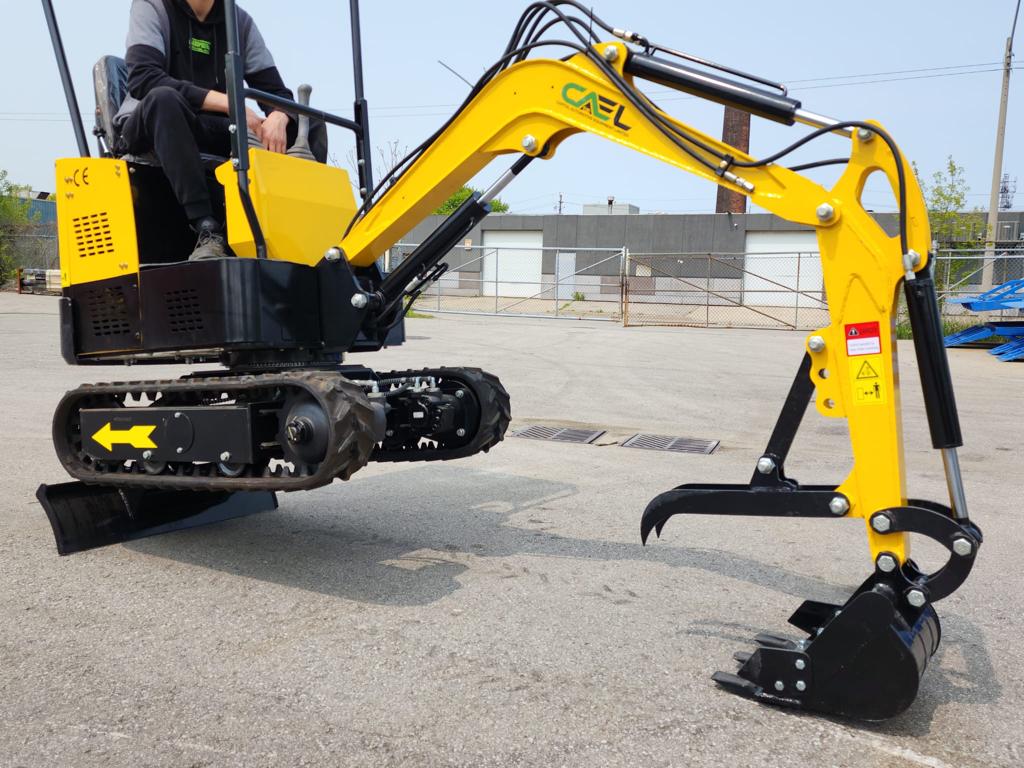

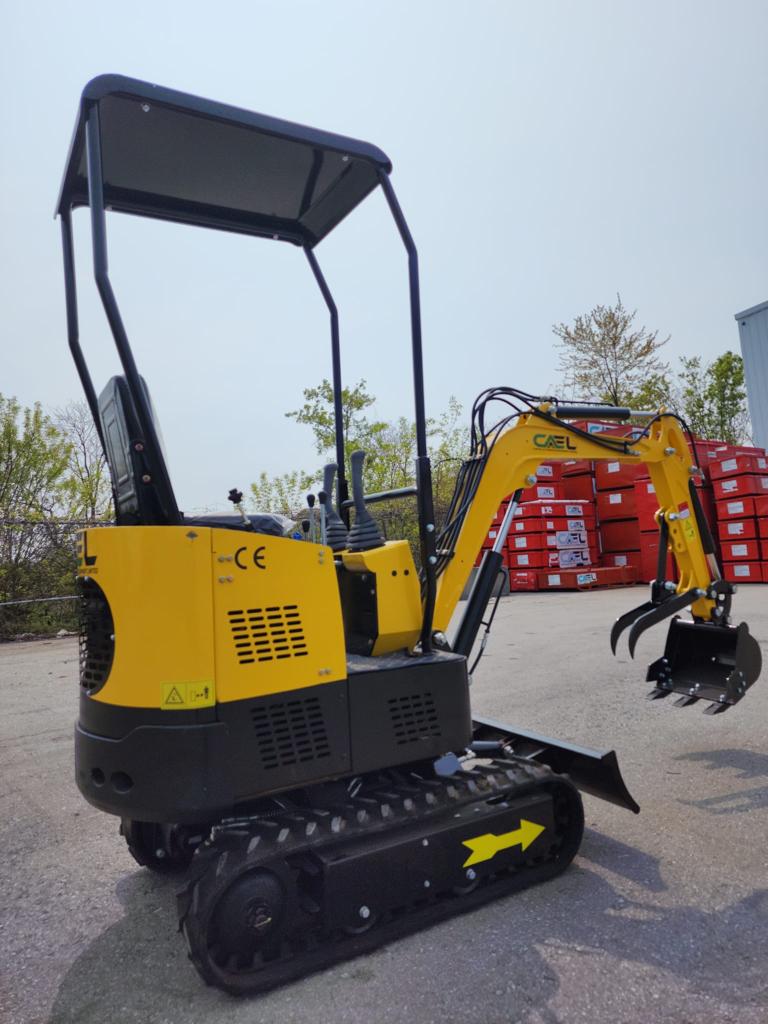

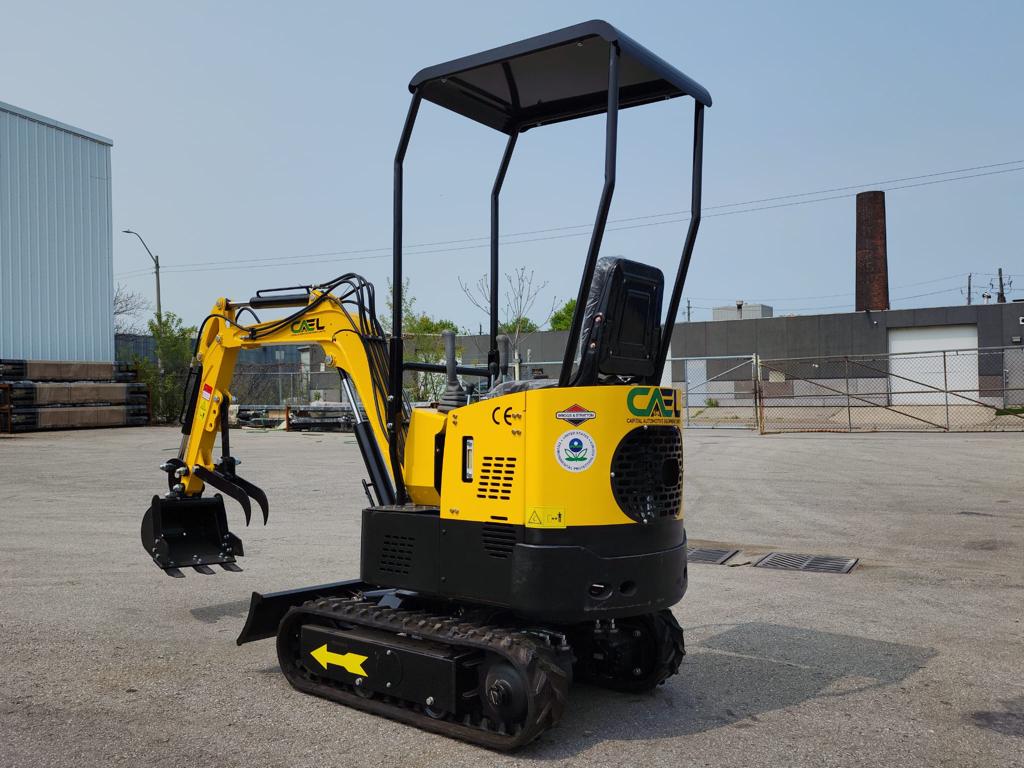

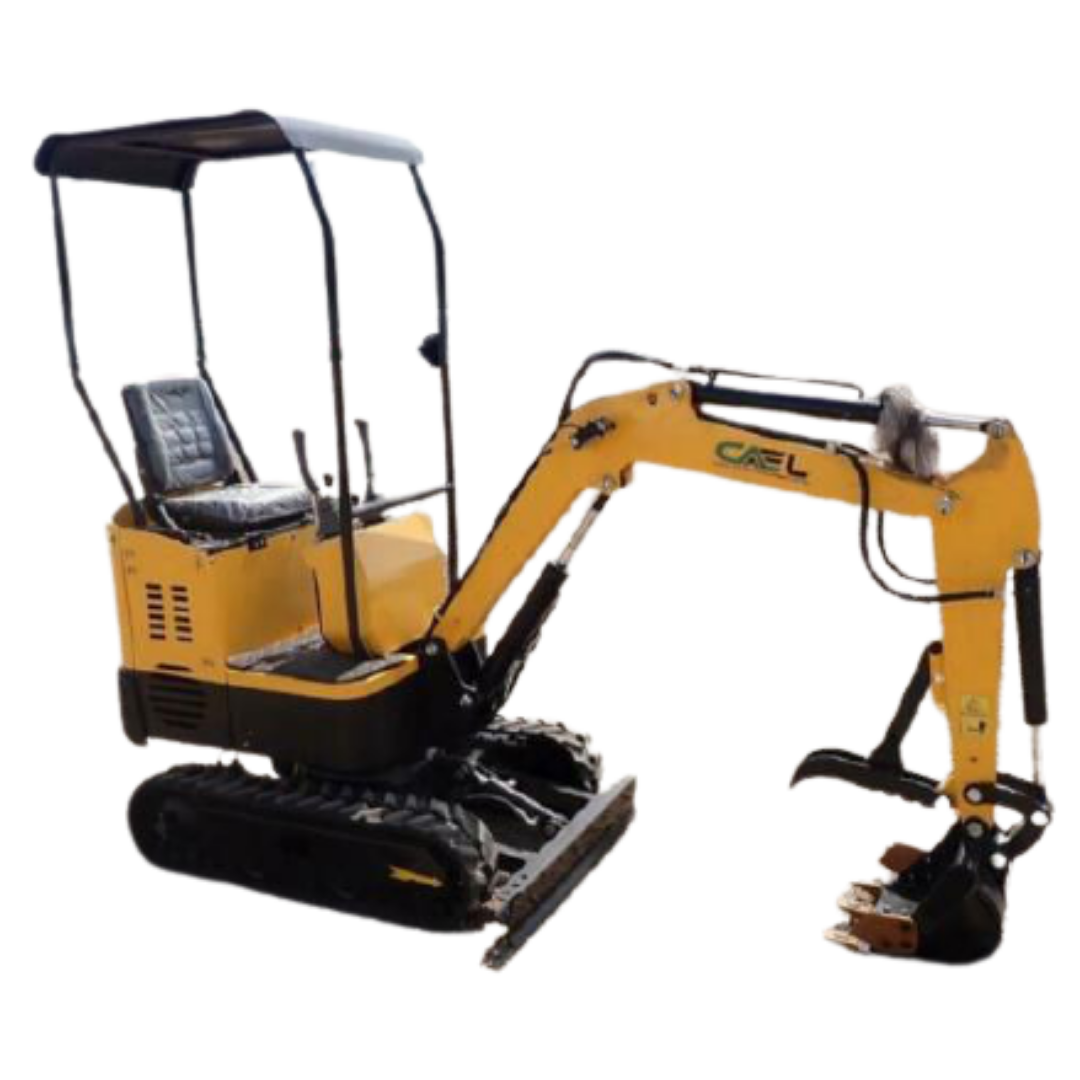

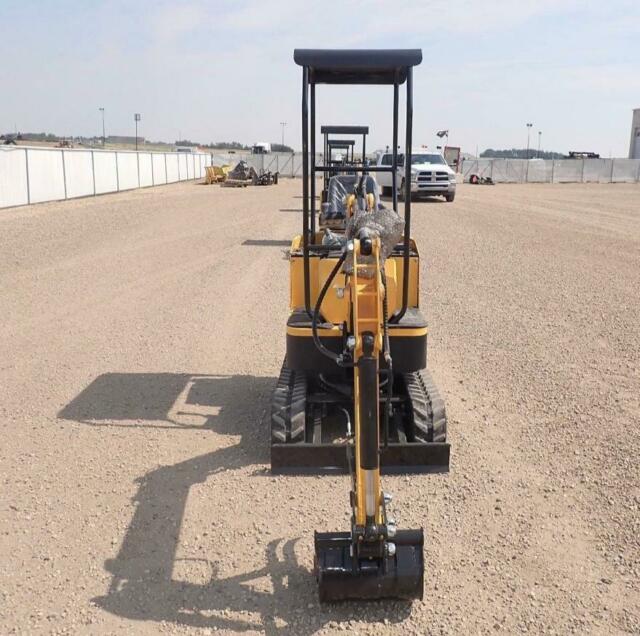

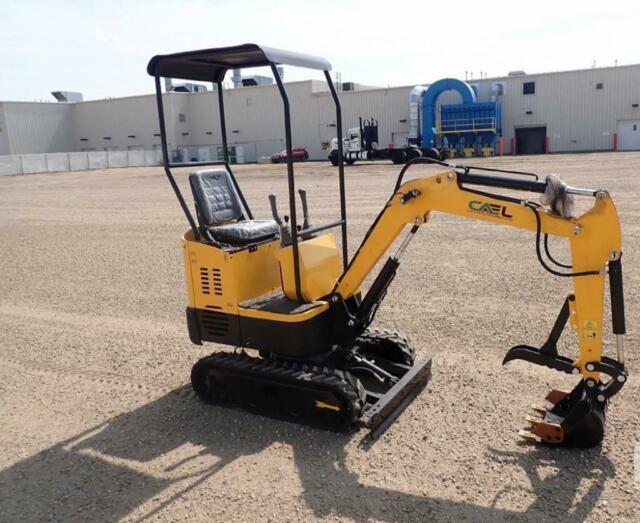

Mini Excavator 1T Briggs & Stratton (EX1BS)

  • $7399.00

Operation Instructions and Maintenance—-R319.pdf










    Category:

    Weight: 1000KG/ 2205 LBS

    Transport length: 2650mm/ 104.3 inch

    Transport Width: 1030 mm/ 40.5 inch

    Transport height 1550mm/ 61 inch

    Bucket width: 420mm/ 16.5 inch

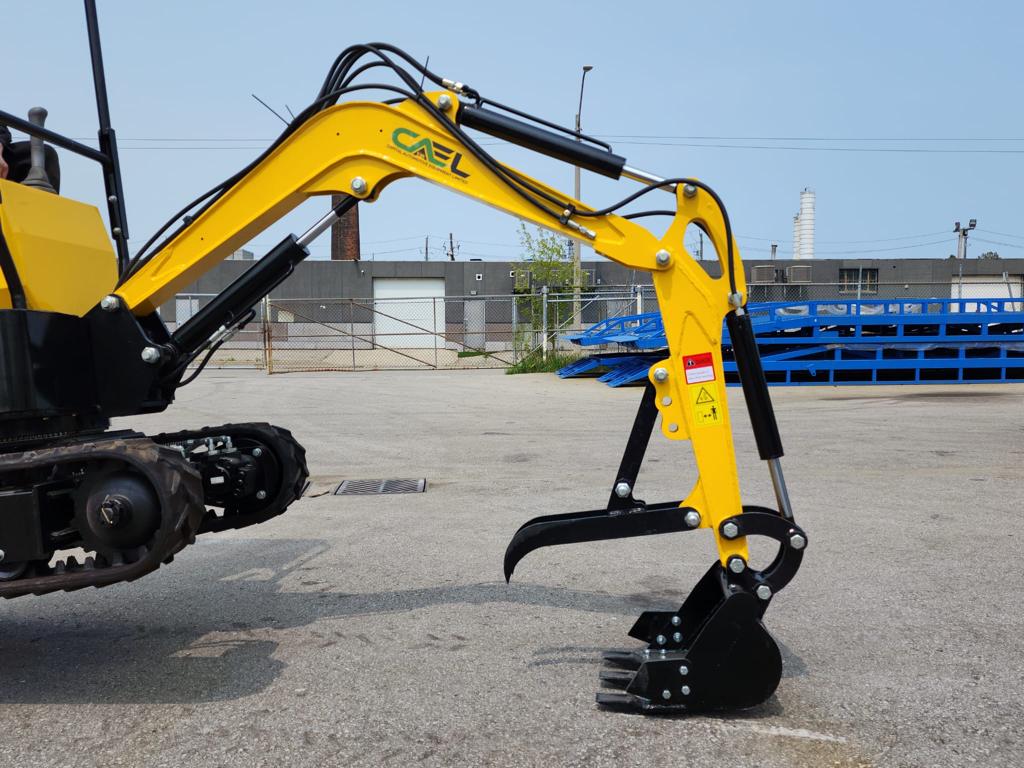

    Boom length: 1350mm/ 53 inch

    Arm length: 700mm/ 27.5 inch

    Gradeability: 35%

    Max traction force: 700KG/ 1543 LBS

    Engine: Briggs & Stratton (USA engine )

    Displacement: 0.794

    Excavator width: 930mm/ 36.6 inch

    Min ground clearance: 400mm/ 15.7 inch

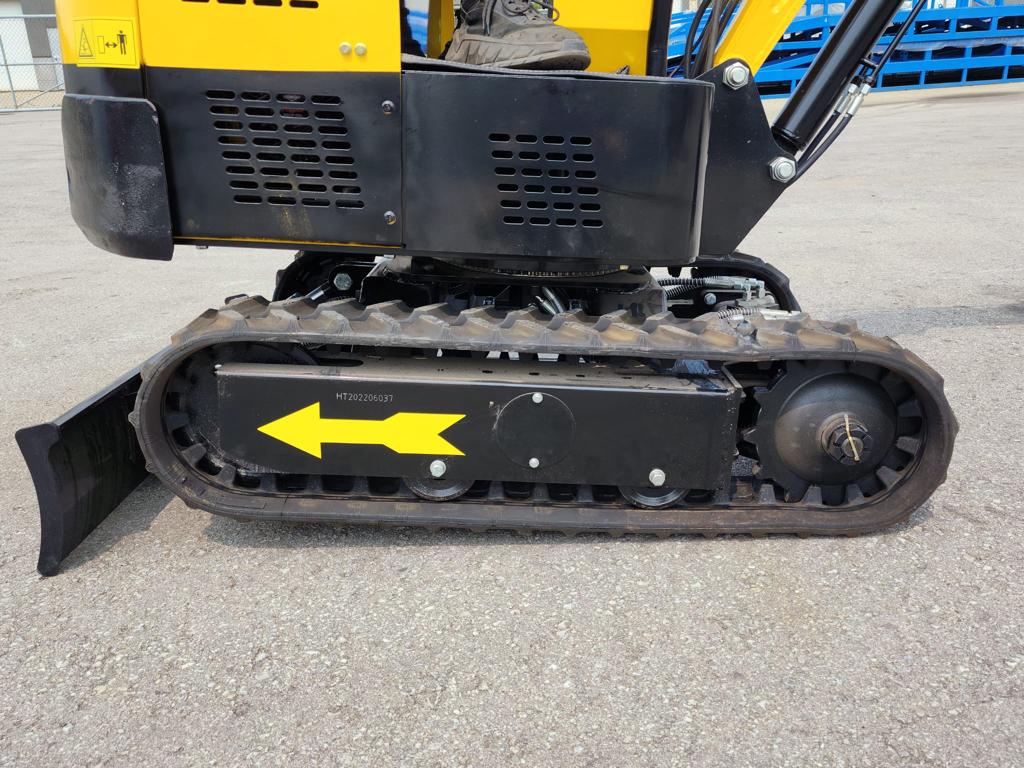

    Track ground length: 1100mm/ 43.3 inch

    Track length: 1350mm/ 53 inch

    Track width: 180mm/ 7 inch

    Track width: 1030 mm/ 40.5 inch

    Max dig radius 2550mm/ 100 inch

    Max. dig depth: 1600mm/ 65 inch

    Max. dig height: 2500mm/ 98.4 inch

    Max unload height: 1750mm/ 69 inch

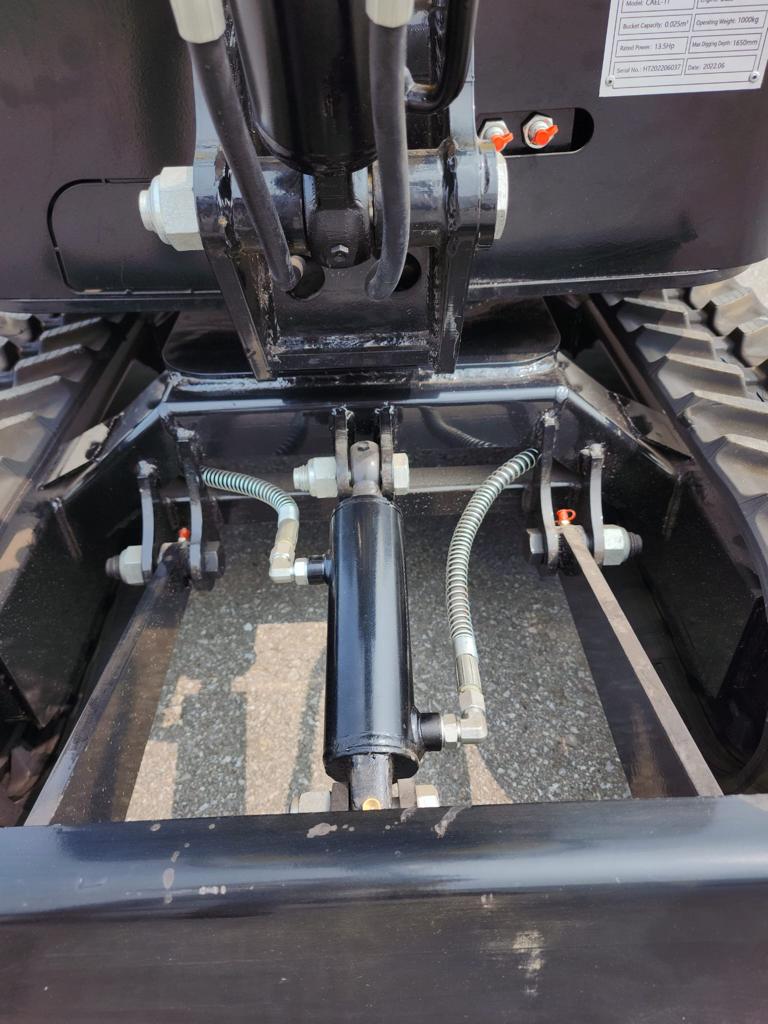

    Dozer blade (WxH) : 1030 x 210mm (40.5 x 8.2 inch)

    Dozer blade lift/push: 155-172mm (6-6.7 inch)

    Theoretical oil consumption: 1.3-1.5 (L/h)

    Power: 14HP 1 Year Warranty on all parts
